纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.601[04]) - HOODS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
447 次

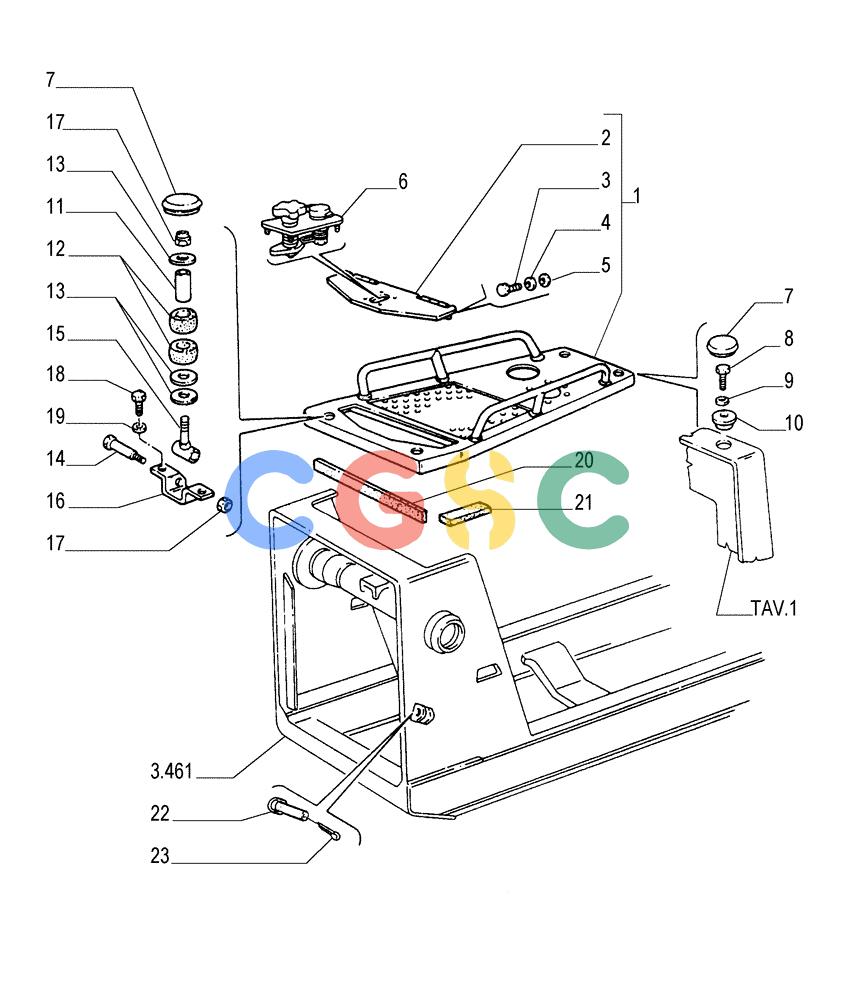

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76038370 | [1] | COWLING | LEC- ASSY |
| 2. | 79112396 | [1] | DOOR | LEC |
| 3. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 4. | 10615679 | [4] | LOCK WASHER,Ext Tooth, M8 | BHB8 Superseded by part number: 10615671 |
| 5. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 6. | 79104964 | [1] | LOCK | LEC- ASSY SEE TAV.7 |
| 7. | 14508287 | [4] | PLUG | LEC50 |
| 8. | 11112831 | [2] | SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11125434 |
| 9. | 10615879 | [2] | LOCK WASHER,Serr, M12 | LEC Superseded by part number: 10615870 |
| 10. | 79032003 | [2] | BUSHING | LEC |
| 11. | 79109731 | [2] | SPACER | LEC |
| 12. | 79109730 | [4] | RUBBER BUSHING | LEC |
| 13. | 79109732 | [6] | WASHER,M12.5 x 43 x 3 Thk | LEC |
| 14. | 79102681 | [2] | SCREW,Hex, M12 x 1.75 x 102mm, Cl 10.9 | LEC |
| 15. | 79102682 | [2] | TIE-ROD | LEC |
| 16. | 79102685 | [1] | U-BOLT | LEC- RIGHT |
| 16. | 79102687 | [1] | U-BOLT | LEC- LEFT |
| 17. | 12577521 | [4] | NUT,M12 x 1.75 | LEC |
| 18. | 16043431 | [4] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 19. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 20. | 79113407 | [1] | SEAL | LECL=990 |
| 21. | 79113408 | [2] | GASKET | LECL=250 |
| 22. | 79005781 | [2] | PIN | LEC |
| 23. | 5112606 | [2] | COTTER PIN | TTF |
