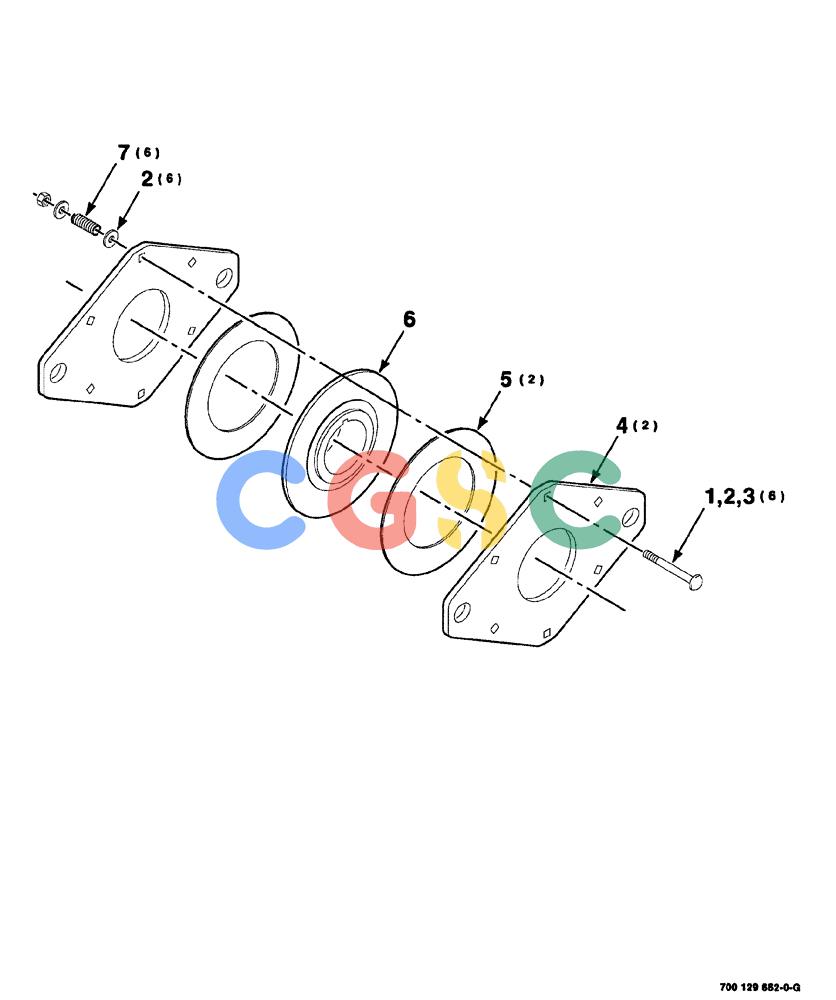

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (05-008) - STUFFER CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
650 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-656
|
[6] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5
|
CAS
3/8-16 x 3-1/2 RHSNB Superseded by part number: 280348
|
| 2. |
496-11041
|
[12] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened plain, 3/8 Superseded by part number: 86632588
|
| 3. |
231-1406
|
[6] |
LOCK NUT,3/8"-16, GB
|
CAS
|
| 4. |
6578868
|
[2] |
LARGE PLATE
|
CAS
PLATE, LARGE 1/4-28 x 45 Deg. ZERK
|
| 5. |
700710945
|
[2] |
CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk
|
L
CLUTCH
|
| 6. |
700129663
|
[1] |
HUB
|
CAS
WA
|
| 7. |
758011
|
[6] |
SPRING
|
CAS
compression
|
