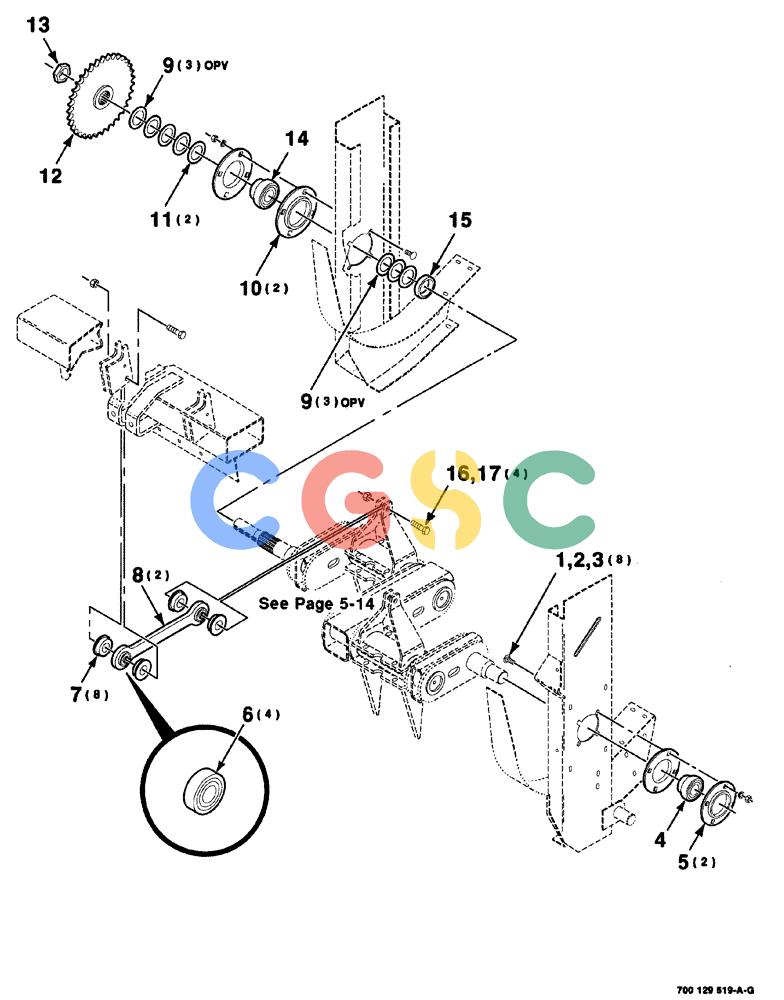

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (05-010) - CRANK DRIVE AND MOUNTING ASSEMBLY, S.N. CFH0113001 THRU CFH0163128 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
734 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-820
|
[8] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 2. |
80679
|
[8] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 3. |
425-108
|
[8] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 4. |
51318
|
[1] |
BEARING
|
IH
spherical Superseded by part number: 668718R92, 47577169
|
| 5. |
50583
|
[2] |
FLANGED BEARING
|
IH
BEARING Superseded by part number: 86979948
|
| 6. |
616154R92
|
[4] |
BEARING, ROLLER, CYL,16 mm
|
IH
cylindrical Superseded by part number: 84356151
|
| 7. |
700124038
|
[8] |
BUSHING,16.27mm ID x 34.92mm OD x 10mm L
|
CAS
BEARING
|
| 8. |
700124036
|
[2] |
LINK CONROD
|
CAS
ASSEMBLY, Includes: Ref. 6
|
| 9. |
52548
|
[6] |
SPECIAL WASHER
|
CAS
2 x 14 gauge, NRMB
|
| 10. |
714360
|
[2] |
FLANGED BEARING
|
IH
|
| 11. |
740407
|
[2] |
BRUSH, COMMUTATOR
|
CAS
BRUSH 2 x 10 gauge, NRMB
|
| 12. |
700123418
|
[1] |
SPROCKET ASSY.
|
CAS
tooth, WA 80C35
|
| 13. |
700113661
|
[1] |
NUT
|
CAS
stake, 1-5/8-12
|
| 14. |
712158
|
[1] |
SPHERICAL BEARING,2" ID x 100 mm OD
|
L
spherical Superseded by part number: 47577203
|
| 15. |
700113666
|
[1] |
SPACER
|
CAS
|
| 16. |
413-1036
|
[4] |
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
|
CAS
5/8-11 x 2-1/4 C Superseded by part number: 88556
|
| 17. |
232-41110
|
[4] |
NUT,5/8"-11, GC
|
CAS
Superseded by part number: 85700693
|
