凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (006[A]) - ANGLE DRIVE Case Agriculture

广数供应链运营团队, 15 02月, 2025，浏览： 825 次

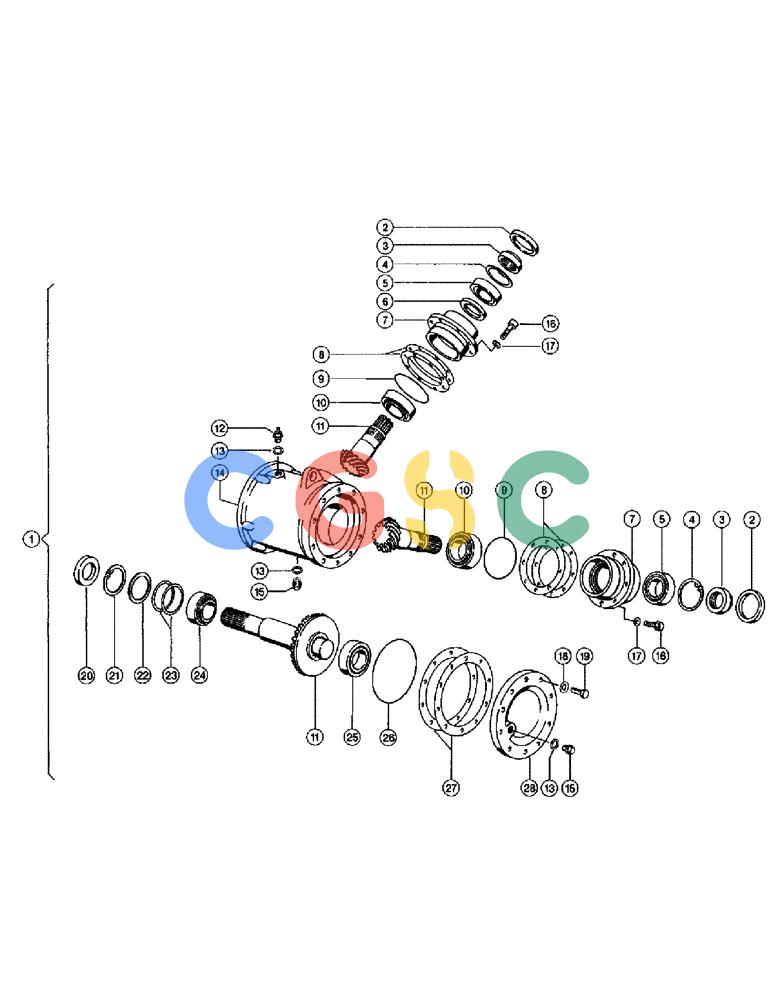

Pos.	Part No	Qty	Parts name	Comments
1.	8300311	[1]	GEARBOX ASSY	R Angle drive
2.	2157880	[2]	OIL SEAL	R Shaft seal ring A 70x 90x10
3.	8306740	[2]	NUT	R Shaft nut
4.	933077R1	[2]	SNAP RING,M90, Int	IH Circlip 90x3 Superseded by part number: 370013
5.	2359890	[2]	BEARING	R Ta.roller bearing 302 10
6.	2382772	[1]	GASKET	R Shaft seal ring As 55x 80x 8
7.	8306800	[2]	SHIN	R Flange
8.	8307640	[1]	SHIM	R 1,0 mm
8.	8306870	[1]	SHIM	R 0,4 mm
8.	8306890	[1]	SHIM	R 0,3 mm
8.	8306880	[1]	SHIM	R 0,1 mm
9.	2157890	[2]	SEALING STRIP	R O-ring 110 x3 -N
10.	2436730	[2]	BEARING	R Ta.roller bearing 322 11
11.	8307680	[1]	SET OF DOWELS	R Bevel gear set
12.	8173040	[1]	VALVE	R Breather valve
13.	2385331	[3]	GASKET	R Seal ring
14.	8306780	[1]	HOUSING	R
15.	2443520	[2]	PLUG	R Locking screw
16.	2428241	[16]	CIRCLIP	R Vskz 12
17.	864-12035	[16]	HEX SOC SCREW,M12 x 35mm, Cl 8.8	CAS Superseded by part number: 14422121
18.	2351340	[10]	WASHER	R Spring washer A12
19.	614-12040	[10]	BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd	IH Superseded by part number: 86629541
20.	2121130	[1]	GASKET	R Shaft seal ring Ba 50x 90x10
22.	2343910	[1]	WASHER	R Back-up washer S 70x 90
23.	2159290	[1]	SHIM	R 1,0 mm
23.	2159280	[1]	SHIM	R 0,5 mm
23.	2159270	[1]	SHIM	R 0,3 mm
23.	2159260	[1]	SHIM	R 0,1 mm
24.	2380740	[1]	BEARING	R Ta.roller bearing 322 10
26.	R2157900Q	[1]	O-ring 180 x3 -N
27.	8307650	[1]	SHIM	R 1,0 mm
27.	8306920	[1]	SHIM	R 0,4 mm
27.	8306910	[1]	SHIM	R 0,3 mm
27.	8306900	[1]	SHIM	R 0,1 mm
28.	8306790	[1]	HOUSING	R cover
