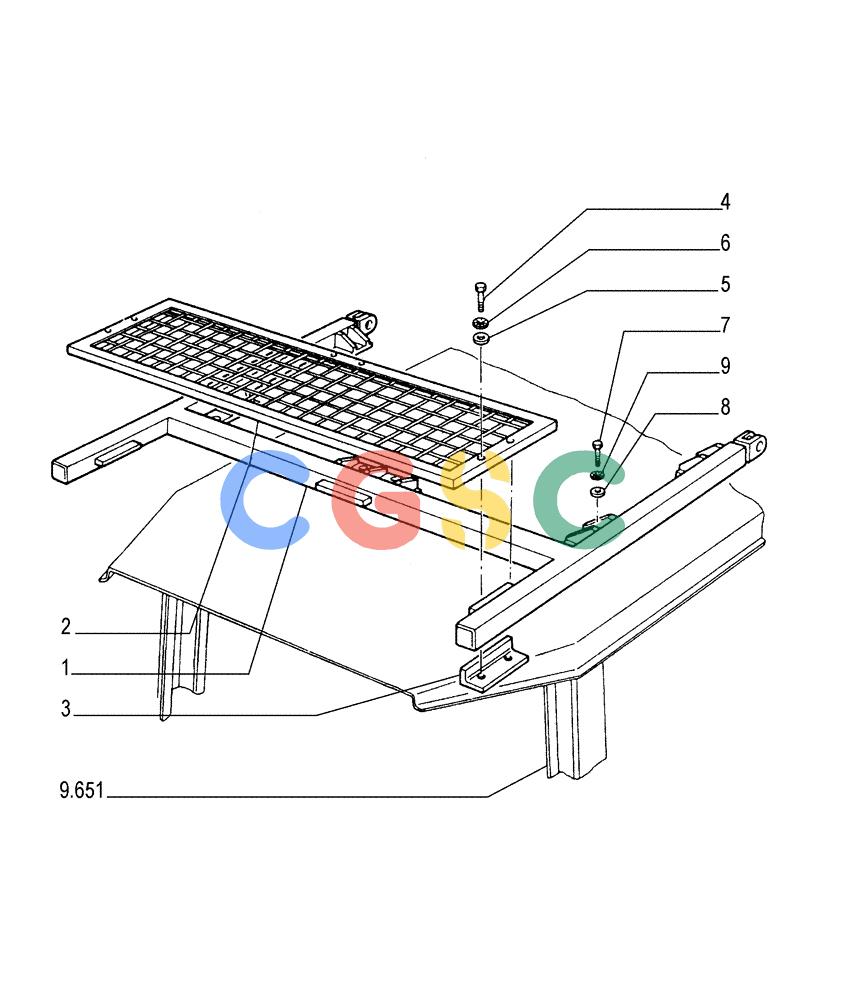

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.654[02]) - SWEEPS - ROPS CANOPY - OPTIONAL CODE 79093160 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
871 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79086382 | [1] | GUARD | LEC |
| 2. | 79086399 | [1] | GRILLE | LEC |
| 3. | 76001715 | [3] | BRACKET | LEC |
| 4. | 11107331 | [6] | SCREW,Hex, M10 x 55mm, Cl 10.9 | LEC |
| 5. | 14496631 | [6] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 6. | 10615779 | [6] | LOCK WASHER,Ext Tooth, M10 | MKT Superseded by part number: 12605671 |
| 7. | 9824642 | [8] | BOLT,M12 x 1.75 x 42.68mm, Cl 10.9 | BHB Superseded by part number: 626-12035 |
| 8. | 79005242 | [8] | WASHER,12.6mm ID x 28mm OD x 7mm Thk | LEC12X28 |
| 9. | 10615879 | [8] | LOCK WASHER,Serr, M12 | LEC Superseded by part number: 10615870 |
