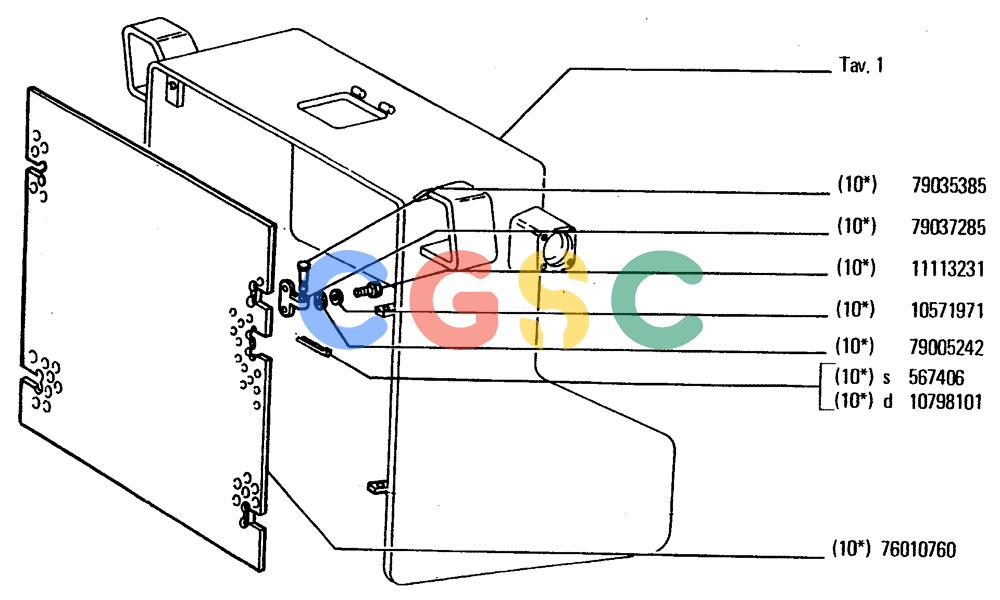

纽荷兰零件查询(FD20) - CRAWLER DOZER (L1.01[003]) - HOOD ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
441 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 567406. | 5112606 | [2] | COTTER PIN | TTFSPLIT PIN |
| 10571971. | 10571971 | [8] | LOCK WASHER | BHBLOCKWASHER Superseded by part number: 412123 |
| 10798101. | 10798101 | [2] | COTTER PIN,M6.3 x 25 | TTFSPLIT PIN Superseded by part number: 10796901 |
| 11113231. | 11113231 | [8] | BOLT,Hex, M12 x 50mm, Cl 10.9 | BHBBOLT, Hex, M12 x 50, 10.9 Superseded by part number: 337476 |
| 76010760. | 76010760 | [1] | GUARD | LECPROTECTION |
| 79005242. | 79005242 | [8] | WASHER,12.6mm ID x 28mm OD x 7mm Thk | LEC |
| 79035385. | 79035385 | [4] | PIN | LECSECURING PIN Superseded by part number: 87617620 |
| 79037285. | 79037285 | [4] | HINGE | LEC |
