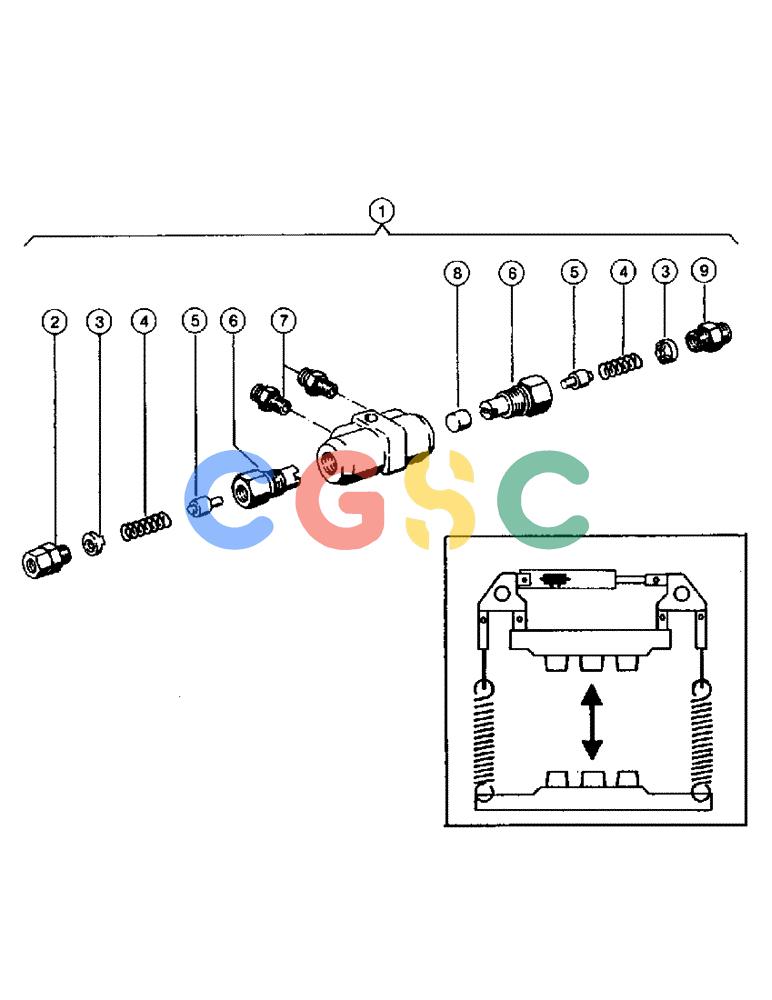

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (070) - LOCK-UP VALVE (VAR.9040), HYDRAULIC DENSITY CONTROL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
780 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
6437070
|
[1] |
VALVE
|
R
Arrest.block ass.
|
| 2. |
2391490
|
[1] |
UNION
|
R
L10E/Wd-M
|
| 3. |
6437040
|
[2] |
GUIDE
|
R
Spring guide
|
| 4. |
6437050
|
[2] |
SPRING
|
R
Compress.spring
|
| 5. |
6725841
|
[2] |
VALVE, CHECK
|
R
Outlet valve
|
| 6. |
6437030
|
[2] |
UNION
|
R
Threaded insert
|
| 7. |
190003559487
|
[2] |
FITTING
|
S
Screw-in union L 8B-M
|
| 8. |
2153120
|
[1] |
SHIFTER ROLLER
|
R
Cylind.roller 15x15Sort.M1-M6
|
| 9. |
2387120
|
[1] |
UNION
|
R
Screw-in union L10B-M
|
