纽荷兰零件查询(FD20) - CRAWLER DOZER (L1.04/2[001]) - DOOR ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
847 次

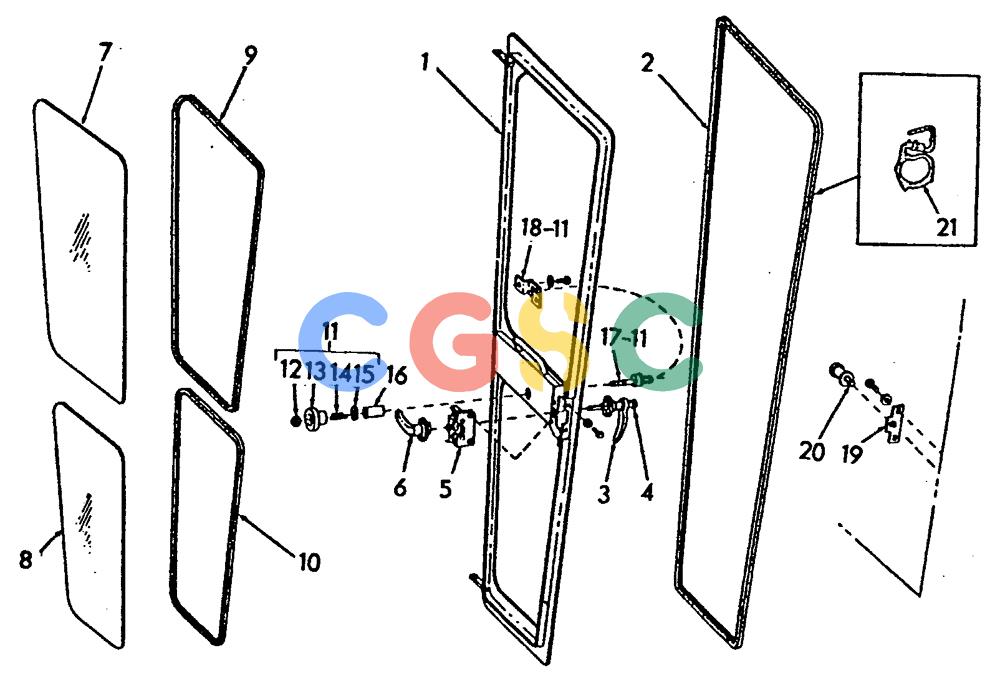

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73143083 | [1] | CONTROL | CMIDOOR ASSY., LEFT (INCLUDES ITEMS 1 THRU 20) |
| 1. | 73143084 | [1] | CONTROL | CMIDOOR ASSY., RIGHT (INCLUDES ITEMS 1 THRU 20) |
| 3. | 73077433 | [2] | HANDLE | CMIOUTSIDE (INCLUDES KEYS) |
| 3. | 70696241 | [4] | SCREW | CMI |
| 4. | 73075836 | [1] | KIT | BHBKEY Superseded by part number: 73061191 |
| 5. | 73137761 | [1] | LOCK | LECLATCH ASSY., LEFT (SERVICED OLY AS A UNIT) |
| 5. | 73137762 | [1] | LATCH | CMIASSY., RIGHT (SERVICED ONLY AS A UNIT) |
| 5. | 70927401 | [8] | SCREW | CMICAPSCREW, 1/4"" NC x 1"" |
| 5. | 70904204 | [8] | LOCK WASHER | CMILOCKWASHER, 1/4"" Superseded by part number: 80682 |
| 6. | 73137770 | [2] | HANDLE | CMIINSIDE |
| 11. | 73137771 | [2] | SPARE PART | CMIHOLDBACK ASSY. (INCLUDES ITEMS 12 THRU 15, 17,18) |
| 19. | 73137760 | [2] | PLATE | CMISTRIKER |
| 19. | 70920582 | [4] | SCREW | BHBCAPSCREW, 1/2"" NC x 1-1/4"" Superseded by part number: 280853 |
| 19. | 70926192 | [4] | WASHER | CMI |
| 20. | 73137759 | [2] | PIN | CMILATCH |
| 21. | 73108330 | [1] | WEATHERSTRIP | NHSEAL, DOOR, BULK Superseded by part number: 70696289 |
| 22. | 73133864 | [1] | GASKET | CMISEAL, GLASS (25' ROLL) |
