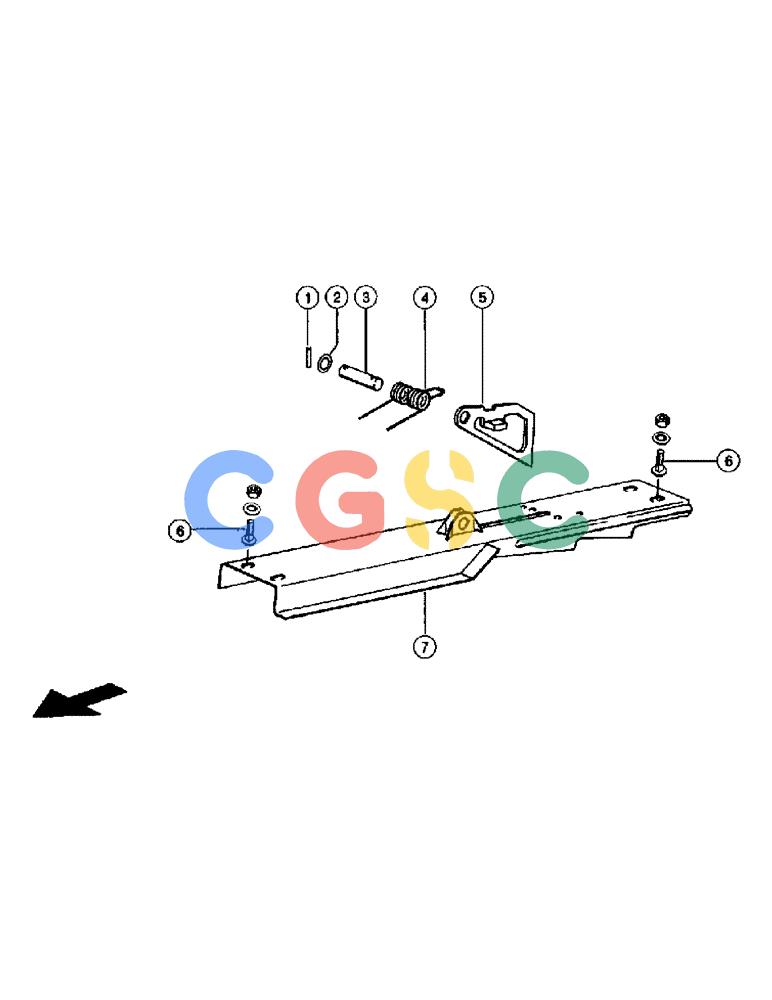

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (038) - BALE CHAMBER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
951 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838-5636
|
[6] |
LOCK PIN,M6 x 36, Slotted
|
CAS
Tensioning pin 6 x 36 Superseded by part number: 300868
|
| 2. |
2342350
|
[6] |
WASHER
|
R
|
| 3. |
9296730
|
[3] |
PIN
|
R
|
| 4. |
8173591
|
[3] |
TINE
|
R
Spring tines + ab Nr. 04400305
|
| 5. |
8164654
|
[3] |
SUPPORT
|
R
Retainer
|
| 6. |
8178490
|
[12] |
SCREW
|
R
Flat head bolt M16x 30x20
|
| . . |
190003871339
|
[12] |
NUT
|
S
Hex, M16 Superseded by part number: 392530
|
| . . |
2393910
|
[12] |
WASHER
|
R
Contact washer A16
|
| 7. |
8302422
|
[3] |
SHEET
|
R
U-plate
|
