纽荷兰零件查询(FD20) - CRAWLER DOZER (L3.04[002]) - ROPS CANOPY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
129 次

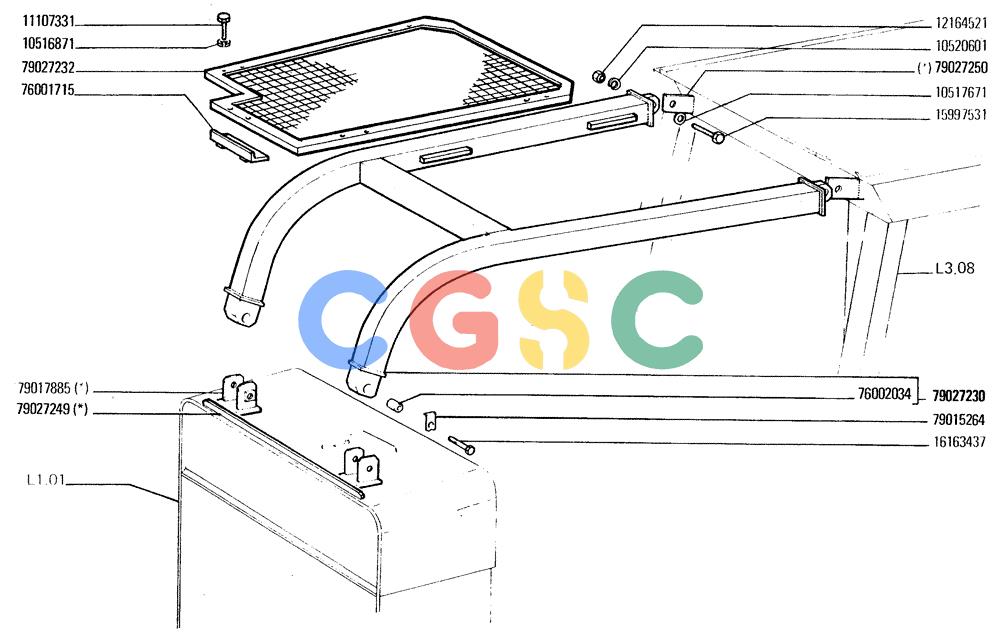

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10516871. | 10516871 | [10] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | HFILOCKWASHER Superseded by part number: 10571873 |
| 10517671. | 10517671 | [2] | LOCK WASHER,24.3mm ID x 39.8mm OD x 5.5mm Thk | MODLOCKWASHER Superseded by part number: 10572571 |
| 10520601. | 10520601 | [2] | WASHER | MKT Superseded by part number: 10520604 |
| 11107331. | 11107331 | [10] | SCREW,Hex, M10 x 55mm, Cl 10.9 | LEC |
| 12164521. | 12164521 | [2] | NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10 | MOD Superseded by part number: 12164527 |
| 15997531. | 15997531 | [2] | BOLT,Hex, M24 x 2 x 90mm, Cl 10.9 | MKT Superseded by part number: 15997537 |
| 16163437. | 16163437 | [2] | SCREW | LEC Superseded by part number: 16162731 |
| 76001715. | 76001715 | [5] | BRACKET | LEC |
| 76002034. | 76002034 | [2] | BUSHING,76mm ID x 86mm OD x 46.1mm L | MOD |
| 79015264. | 79015264 | [2] | LOCKING PLATE | LECLOCKPLATE |
| 79017885. | 79017885 | [2] | SUPPORT | LEC |
| 79027230. | 79027230 | [1] | FRAME | LECWORK |
| 79027232. | 79027232 | [1] | GUARD | LECPROTECTION |
| 79027249. | 79027249 | [1] | REINFORCEMENT | LECSHAPED BAR |
| 79027250. | 79027250 | [2] | BLOCK | LECFASTENING BLOK |
