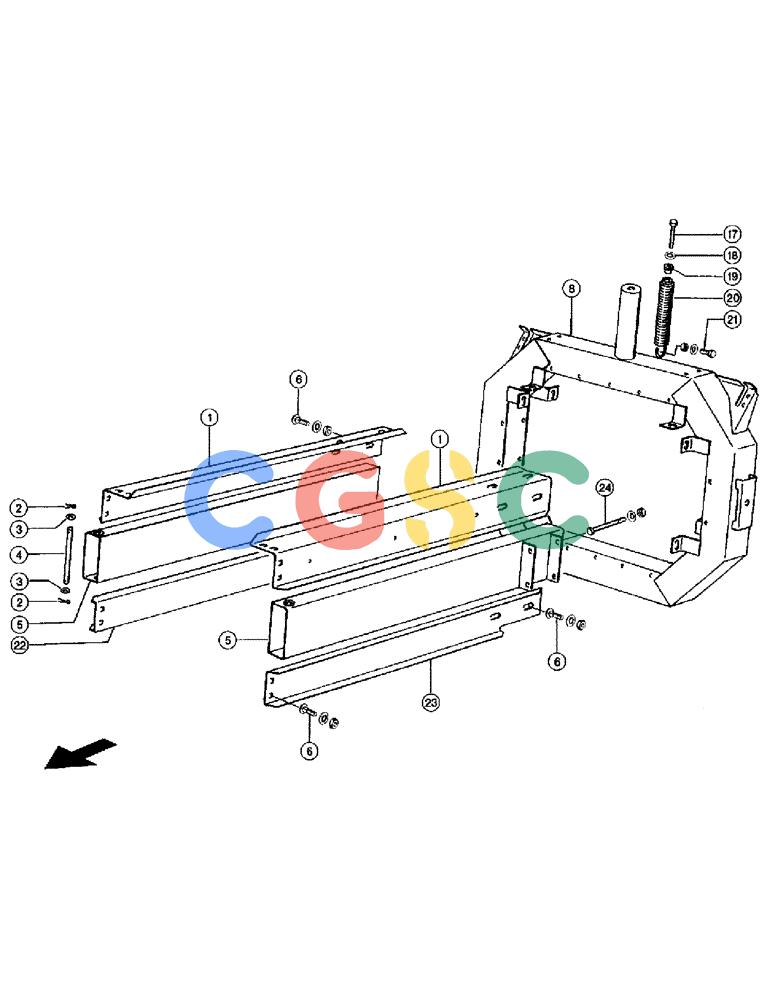

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (042) - BALE CHAMBER, UP TO SERIAL NO. 04400304 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
864 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8302661
|
[2] |
STAY
|
R
Brace -
|
| 2. |
732-4028
|
[4] |
COTTER PIN,M4 x 28
|
CAS
Split pin 4 x 28, -
|
| 3. |
2369480
|
[4] |
WASHER
|
R
-
|
| 4. |
8302720
|
[2] |
ROD
|
R
Shaft -
|
| 5. |
R8302680
|
[2] |
SHEET
|
R
Profile -
|
| 6. |
8178490
|
[24] |
SCREW
|
R
Flat head bolt M16x 30x20, -
|
| . . |
190003871339
|
[24] |
NUT
|
S
Hex, M16 Superseded by part number: 392530
|
| . . |
2393910
|
[24] |
WASHER
|
R
Contact washer A16, -
|
| 8. |
8302613
|
[1] |
CHASSIS
|
R
Frame -
|
| 17. |
2424580
|
[1] |
SCREW
|
R
Hexagonal screw M12x120, Start Serial: 04400025
|
| 18. |
239389N0
|
[1] |
WASHER
|
FO
Contact washer A12, Start Serial: 04400025 Superseded by part number: 140046
|
| 19. |
8101170
|
[1] |
BUSHING
|
R
, Start Serial: 04400025
|
| 20. |
9176170
|
[1] |
SPRING
|
R
Tension spring, Start Serial: 04400025
|
| 21. |
930051R1
|
[1] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
|
IH
Hexagonal screw M10x 40, Start Serial: 04400025 Superseded by part number: 120112
|
| . . |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
, Start Serial: 04400025
|
| . . |
98-029441
|
[1] |
WASHER
|
FO
Contact washer A10, Start Serial: 04400025 Superseded by part number: 140045
|
| 22. |
8310020
|
[1] |
SHEET
|
R
Profile plate r.h. -
|
| 23. |
8310010
|
[1] |
SHEET
|
R
Profile plate l.h. -
|
| 24. |
814-12140
|
[4] |
BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8
|
CAS
Superseded by part number: 328048
|
| . . |
238234N0
|
[4] |
NUT
|
FO
Securing nut Vm12, - Superseded by part number: 100038
|
| . . |
2351242
|
[4] |
WASHER
|
R
13, -
|
