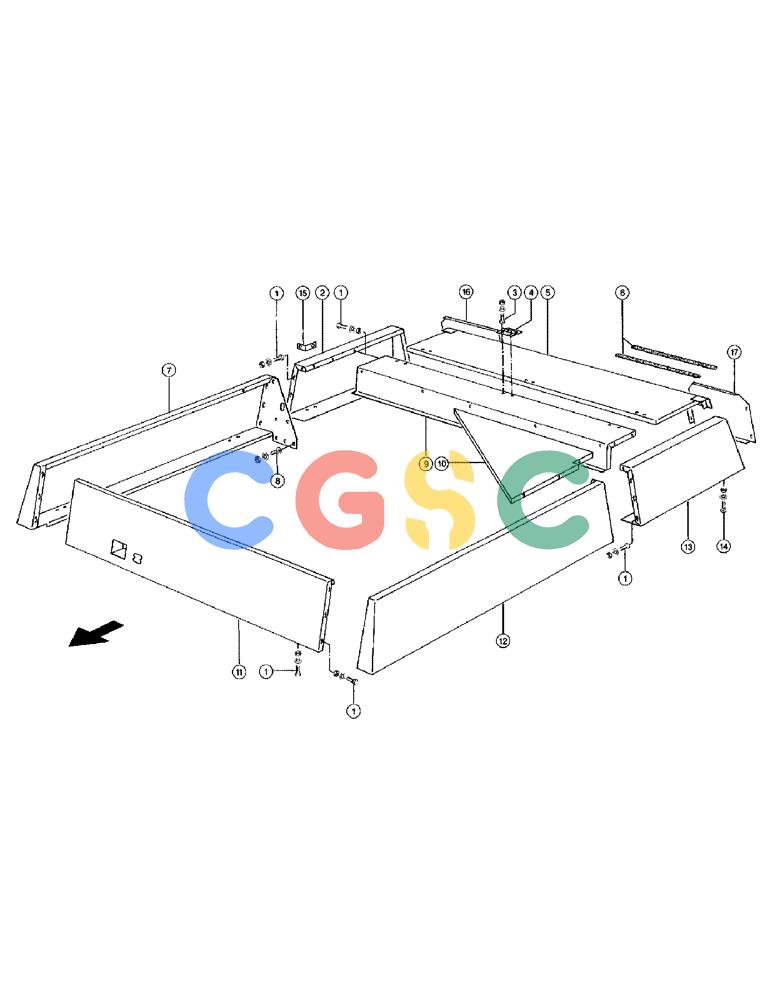

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (048) - TOP PANELLING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
776 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
931171R1
|
[24] |
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
IH
Hexagonal screw M 8x 16 Superseded by part number: 16043224
|
| . . |
43362
|
[24] |
NUT,M8 x 1.25, Cl 10
|
BHB
M8, Cl 10
|
| . . |
239393N1
|
[48] |
WASHER
|
FO
Contact washer B 8 Superseded by part number: 322358
|
| 2. |
8170851
|
[1] |
SHEET
|
R
Side panel r.h.
|
| 3. |
614-6016
|
[12] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86508568
|
| . . |
825-1406
|
[12] |
NUT,M6, Cl 8
|
CAS
Superseded by part number: 86500688
|
| . . |
2393860
|
[12] |
WASHER
|
R
Contact washer A 6 Superseded by part number: 86588450
|
| 4. |
6543130
|
[3] |
HINGE
|
R
|
| 5. |
8305260
|
[1] |
SHEET
|
R
Knot cover
|
| 6. |
7912090
|
[4] |
MUDFLAP
|
R
Floor covering
|
| 7. |
8305360
|
[1] |
SHEET
|
R
Side panel r.h.
|
| 8. |
6100991
|
[6] |
SCREW
|
R
Flat head bolt M 8x 25
|
| 9. |
8305252
|
[1] |
SHEET
|
R
Roof plate
|
| 10. |
8305691
|
[1] |
SHEET
|
R
Guard plate
|
| 11. |
8306540
|
[1] |
SHEET
|
R
Front plate, Start Serial: 04400025
|
| 11. |
8305340
|
[1] |
SHEET
|
R
Front plate, Serial Range: -04400024
|
| 12. |
8305350
|
[1] |
SHEET
|
R
Side panel l.h.
|
| 13. |
8170841
|
[1] |
SHEET
|
R
Side panel l.h.
|
| 14. |
6100971
|
[10] |
SCREW
|
R
Flat head bolt M 8x 16
|
| . . |
98-029447
|
[10] |
WASHER
|
FO
Contact washer A 8 Superseded by part number: 322358
|
| 15. |
8306590
|
[2] |
SUPPORT
|
R
Angle, Start Serial: 04400025
|
| 16. |
8306530
|
[1] |
SHEET
|
R
Guard plate r.h., Start Serial: 04400025
|
| 17. |
8306520
|
[1] |
SHEET
|
R
Guard plate l.h., Start Serial: 04400025
|
