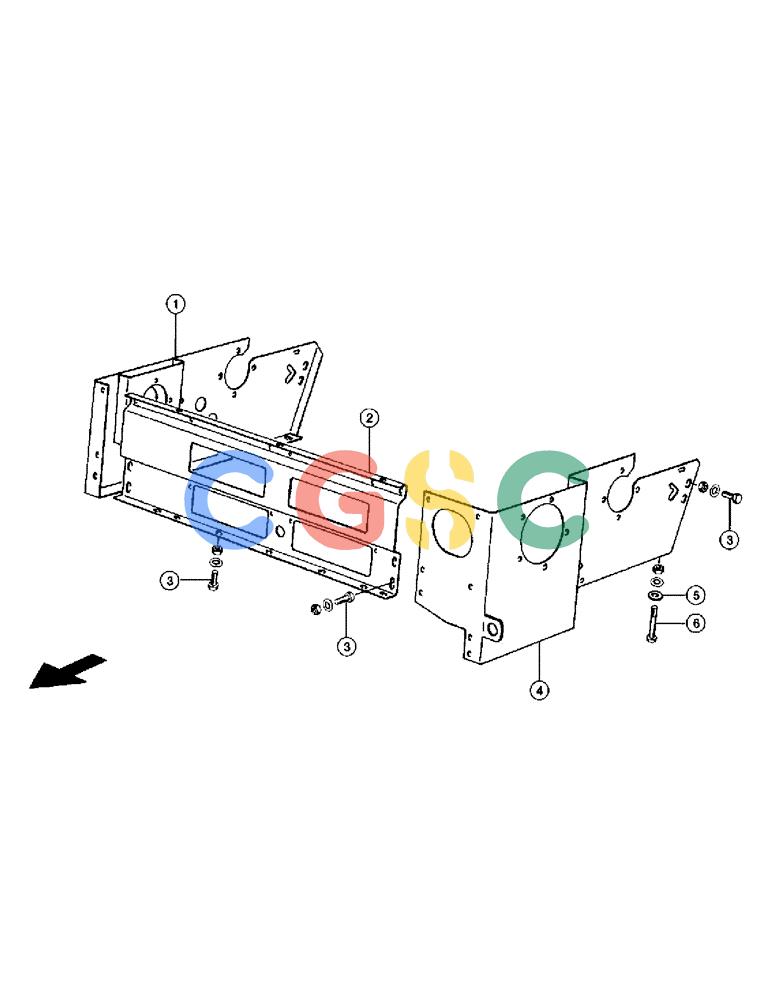

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (049) - TYING UNIT SUPPORT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
374 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8310220
|
[1] |
SHEET
|
R
Bearing plate r.h, Start Serial: 04400305
|
| 1. |
8303773
|
[1] |
SHEET
|
R
Bearing plate r.h, Serial Range: -04400304
|
| 2. |
8307570
|
[1] |
SHEET
|
R
Cross plate, Start Serial: 04400305
|
| 2. |
8303781
|
[1] |
SHEET
|
R
Cross plate, Serial Range: -04400304
|
| 3. |
814-10020
|
[17] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| . . |
100016
|
[17] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| . . |
98-029441
|
[17] |
WASHER
|
FO
Contact washer A10 Superseded by part number: 140045
|
| 4. |
8303721
|
[1] |
SHEET
|
R
Bearing plate l.h
|
| 5. |
9400158
|
[10] |
WASHER
|
R
End window
|
| 6. |
931360R1
|
[10] |
BOLT,Hex, M10 x 100mm, Cl 10.9
|
IH
Hexagonal screw M10x100 Superseded by part number: 120075
|
