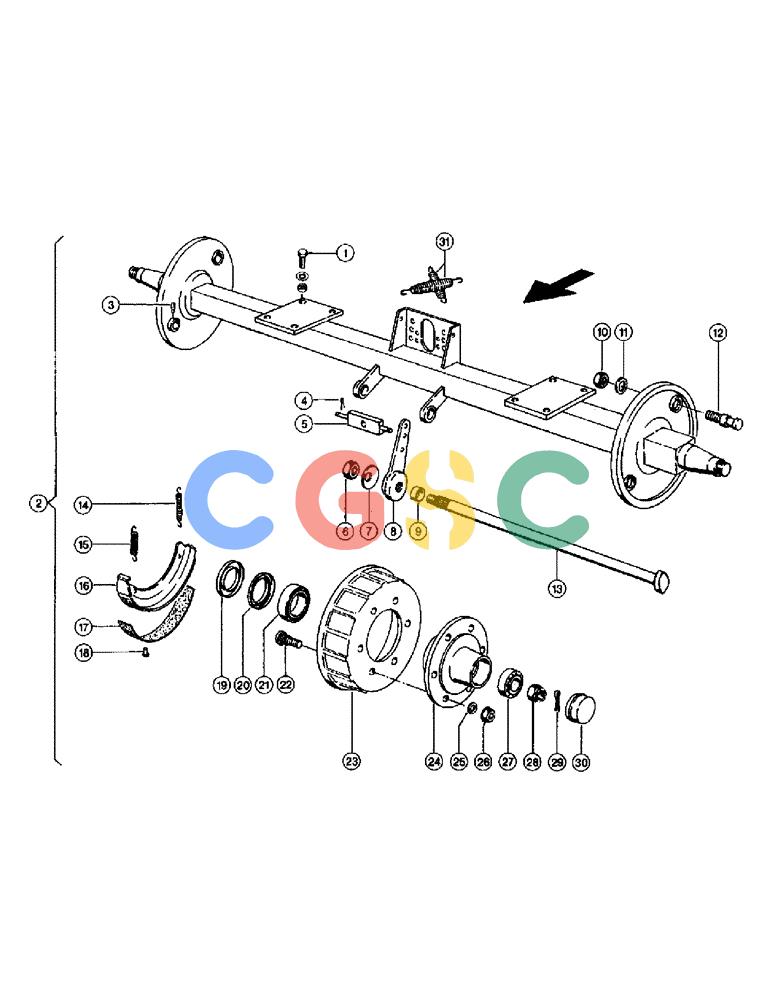

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (054) - BRAKE AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
452 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
614-16050
|
[8] |
BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 120090
|
| . . |
190003871339
|
[8] |
NUT
|
S
Hex, M16 Superseded by part number: 392530
|
| . . |
2393910
|
[8] |
WASHER
|
R
Contact washer A16
|
| 2. |
R8300351
|
[1] |
AXLE
|
R
Brake axle
|
| 3. |
2123700
|
[2] |
NIPPLE, LUBE
|
R
Grease nipple As10x1
|
| 4. |
732-4028
|
[2] |
COTTER PIN,M4 x 28
|
CAS
Split pin 4 x 28
|
| 5. |
8304940
|
[1] |
LINKAGE
|
R
Traverse
|
| 6. |
2123690
|
[2] |
NUT
|
R
Hexagonal nut Vm22x1,5
|
| 7. |
8173440
|
[2] |
BELLEVILLE SPRING
|
R
Plate spring D 70/22,5x2
|
| 8. |
8304930
|
[2] |
LEVER
|
R
Brake lever
|
| 9. |
8304920
|
[2] |
SPACER
|
R
ring
|
| 10. |
2349620
|
[2] |
NUT
|
R
Securing nut Vm24x1,5
|
| 11. |
2123740
|
[2] |
WASHER
|
R
Spring washer
|
| 12. |
9403890
|
[2] |
SCREW
|
R
Brake bolt
|
| 13. |
8304910
|
[2] |
SHAFT
|
R
Brake shaft 790 lang
|
| 14. |
9403840
|
[2] |
SPRING
|
R
Tension spring
|
| 15. |
8173370
|
[2] |
SPRING
|
R
Tension spring
|
| 16. |
8304900
|
[4] |
BRAKE SHOE
|
R
mit Pos. 17, 18
|
| 17. |
8304890
|
[4] |
BRAKE LINING
|
R
|
| 18. |
1061600
|
[64] |
RIVET
|
R
B6x12
|
| 19. |
8304880
|
[2] |
SPACER
|
R
Push ring
|
| 20. |
8304870
|
[2] |
SPACER
|
R
Ring
|
| 21. |
2119180
|
[2] |
BEARING
|
R
Ta.roller bearing 320 13x
|
| 22. |
8173311
|
[12] |
STUD
|
R
Wheel bolt M18x1,5x57
|
| 23. |
8173280
|
[2] |
BRAKE DRUM
|
R
6 Loch
|
| 24. |
8304860
|
[2] |
HUB
|
R
Wheel hub
|
| 25. |
2364470
|
[12] |
WASHER, THRUST
|
R
Spring washer
|
| 26. |
2379250
|
[12] |
NUT
|
R
Flat collar nut
|
| 27. |
2436700
|
[2] |
BEARING
|
R
Ta.roller bearing 322 07
|
| 28. |
2123680
|
[2] |
NUT
|
R
Castellated nut M27x1,5
|
| 29. |
632-205
|
[2] |
COTTER PIN,M5 x 40
|
CAS
Split pin 5 x 45
|
| 30. |
9403720
|
[2] |
CAP
|
R
Wheel cap D 72, 1
|
| 31. |
8260910
|
[2] |
SPRING
|
R
Tension spring, Start Serial: 04400025
|
