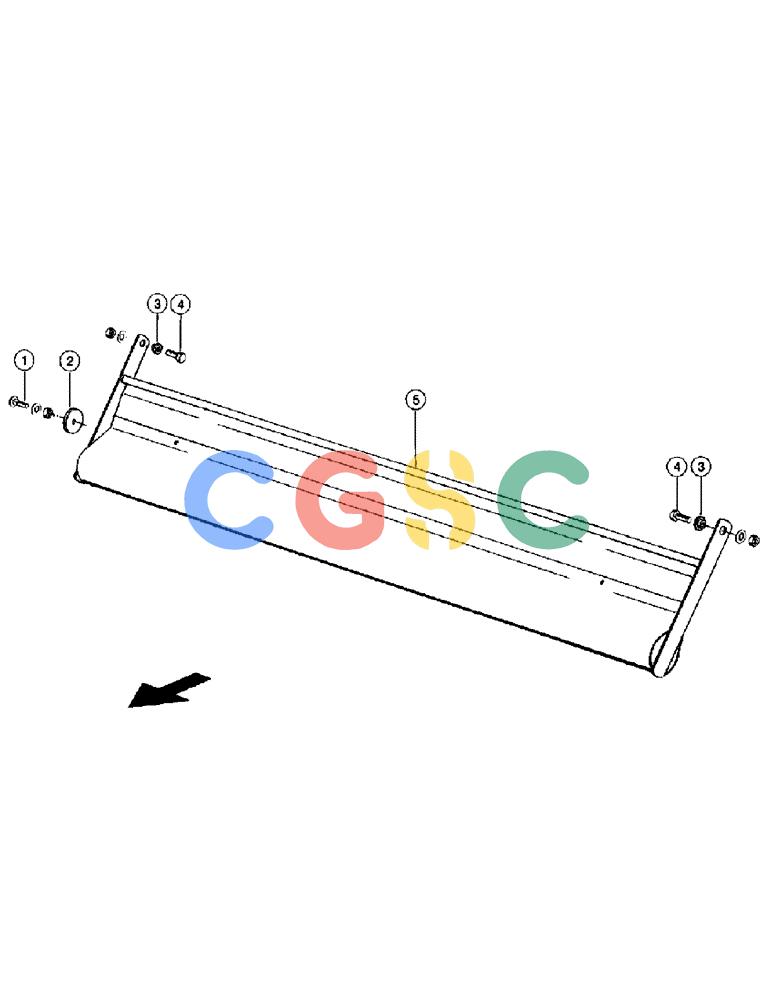

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (017) - BAFFLE PLATE, OPTIONAL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
866 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2335030
|
[4] |
SCREW
|
R
Flat head bolt M 8x 25
|
| . . |
43362
|
[4] |
NUT,M8 x 1.25, Cl 10
|
BHB
M8, Cl 10
|
| . . |
98-029447
|
[4] |
WASHER
|
FO
Contact washer A 8 Superseded by part number: 322358
|
| 2. |
9691390
|
[4] |
WASHER
|
R
Rest
|
| 3. |
6807910
|
[2] |
BUSHING
|
R
|
| 4. |
614-10030
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Hex, M10 x 30; 8.8 Superseded by part number: 43140
|
| . . |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| . . |
2393941
|
[2] |
WASHER
|
R
Contact washer B10
|
| 5. |
8160162
|
[1] |
LARGE PLATE
|
R
Baffle plate bei 2,00 M Aufsammler
|
| 5. |
8228631
|
[1] |
LARGE PLATE
|
R
Baffle plate bei 1,80 M Aufsammler
|
