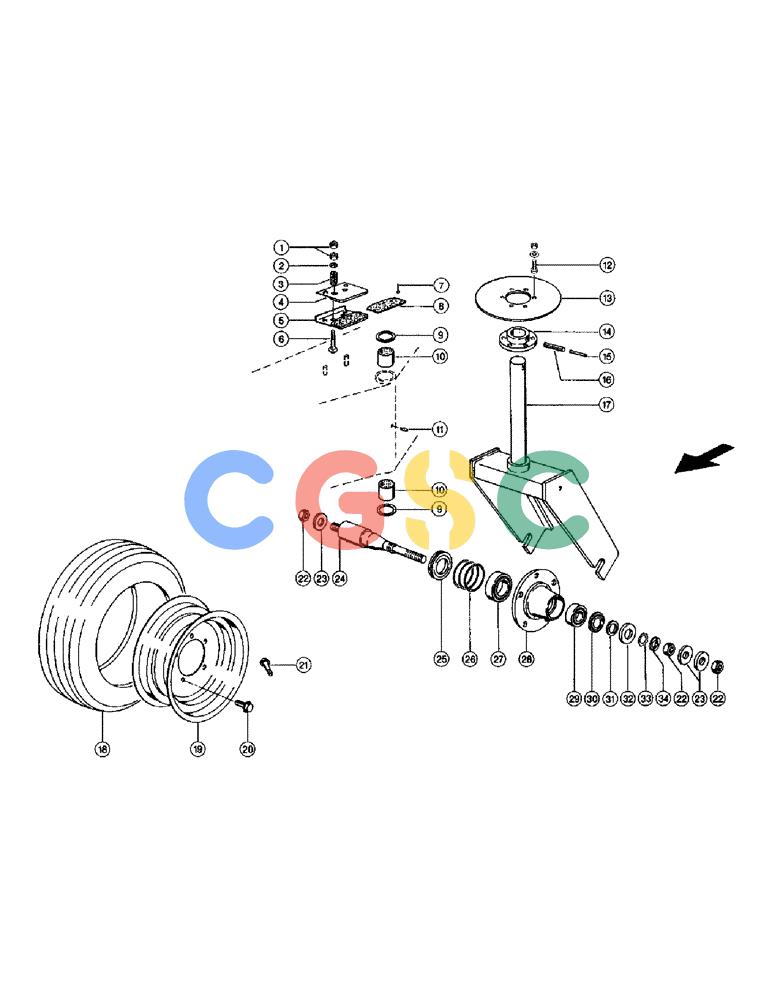

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (102) - BALE STACKER, WHEELS (VAR.9045) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
932 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
100016
|
[8] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 2. |
2368310
|
[4] |
WASHER
|
R
10,5x 25 x2
|
| 3. |
0000170
|
[4] |
SPRING
|
R
Compress.spring
|
| 4. |
8085472
|
[2] |
RETAINER
|
R
Brake plate
|
| 5. |
8085442
|
[2] |
RETAINER
|
R
Brake plate
|
| 6. |
2364640
|
[4] |
SCREW
|
R
Flat head bolt M10x 70
|
| 7. |
2379501
|
[16] |
RIVET
|
R
A 4,8x12
|
| 8. |
8085461
|
[4] |
BRAKE LINING
|
R
|
| 9. |
6851691
|
[4] |
WASHER
|
R
Pressure disc 45 x 65x3
|
| 10. |
9488460
|
[4] |
BUSHING
|
R
Bearing bush
|
| 11. |
2369420
|
[2] |
LUBE NIPPLE,M6 x 1
|
R
Grease nipple As 6x1 Superseded by part number: 321204
|
| 12. |
614-8025
|
[12] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43127
|
| . . |
43362
|
[12] |
NUT,M8 x 1.25, Cl 10
|
BHB
M8, Cl 10
|
| . . |
2150040
|
[12] |
WASHER
|
R
Contact washer Ers.d.2393870
|
| 13. |
8166973
|
[2] |
BRAKE DISC
|
R
|
| 14. |
8309530
|
[2] |
HUB
|
R
|
| 15. |
2376070
|
[2] |
SPLIT PIN/SAFETY PIN
|
R
Tensioning pin 6 x 65a Superseded by part number: 80130049
|
| 16. |
2376141
|
[2] |
SPLIT PIN/SAFETY PIN
|
R
Tensioning pin Superseded by part number: 2376142
|
| 17. |
8309501
|
[2] |
SUPPORT
|
R
Steering carrier
|
| 18. |
9542240
|
[2] |
TYRE/TIRE
|
R
Tyre 185 r14 tl
|
| . . |
6820580
|
[2] |
AIR TUBE
|
R
Tube 170-185 r14
|
| 19. |
9559750
|
[2] |
RIM
|
R
Wheel rim 5 1/2j14 h2
|
| 20. |
6550710
|
[10] |
STUD
|
R
Wheel bolt
|
| 21. |
2135530
|
[2] |
VALVE POPPET
|
R
Rubber valve 43 gs/11,5
|
| 22. |
2356060
|
[6] |
NUT
|
R
Hexagonal nut M24x2
|
| 23. |
2339670
|
[6] |
WASHER
|
R
Tension washer 24
|
| 24. |
9559220
|
[2] |
TRUNNION
|
R
Axle stub
|
| 25. |
6550882
|
[2] |
STOP
|
R
Thrust washer
|
| 26. |
6650881
|
[2] |
SEAL ASSY.
|
R
Set of seals
|
| 27. |
ST264
|
[2] |
BEARING, BALL,50 mm ID x 90 mm OD x 20 mm
|
IH
Grvd.ball bearing 6210 Superseded by part number: 87491045
|
| 28. |
6734211
|
[2] |
HUB CAP
|
R
Wheel hub
|
| 29. |
2377710
|
[2] |
BEARING
|
R
Grvd.ball bearing 6206 rs
|
| 30. |
1782580
|
[2] |
GASKET
|
R
Bearing seal ring 6206 zav
|
| 31. |
2343060
|
[2] |
WASHER
|
R
30,5x 42 x2
|
| 32. |
9118240
|
[2] |
WASHER
|
R
|
| 33. |
2449360
|
[2] |
WASHER
|
R
Locking plate A 30
|
| 34. |
2388190
|
[2] |
NUT
|
R
Slotted nut M30x1,5
|
