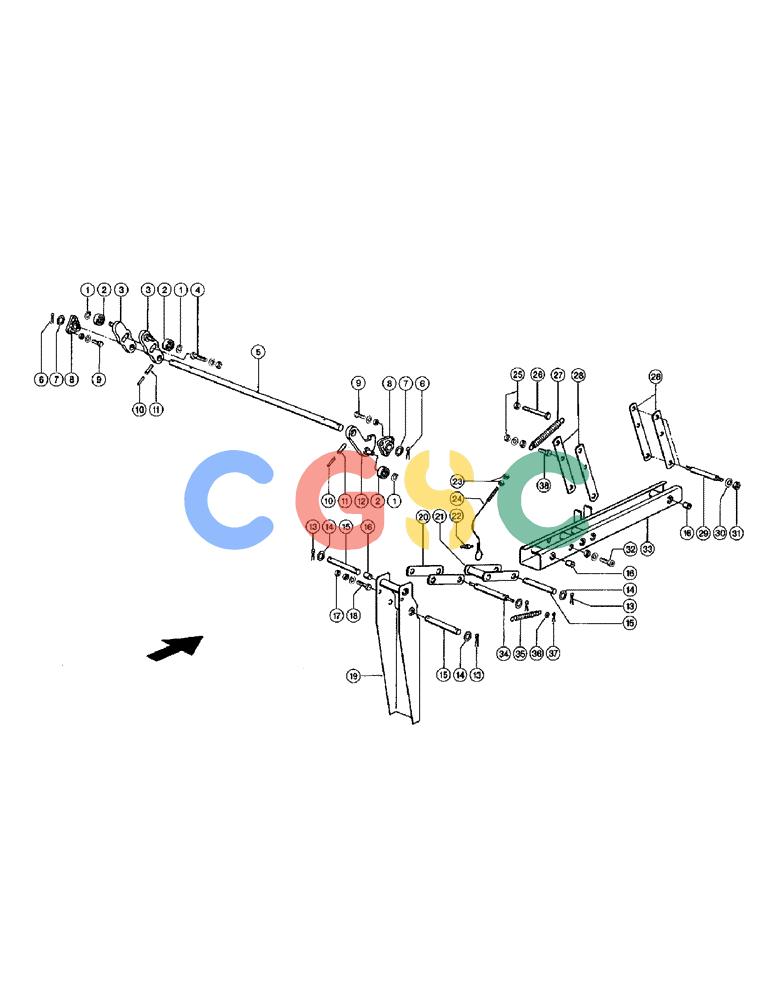

凯斯零件查询(110) - CASE IH QUADROBALE BALER (1/96-12/98) (108) - BALE STACKER, TRIP MECHANISM (VAR.9045) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
380 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
933073R1
|
[3] |
SNAP RING,M12, Ext
|
IH
Circlip 12x1 Superseded by part number: 11066076
|
| 2. |
02139191
|
[3] |
ROLLER
|
R
Guide roller 12 x 35 x 15
|
| 3. |
8308371
|
[2] |
LEVER
|
R
Control lever
|
| 4. |
614-12040
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| . . |
2361720
|
[1] |
NUT
|
R
Hex, M12 Superseded by part number: 337475
|
| . . |
239389N0
|
[2] |
WASHER
|
FO
Contact washer A12 Superseded by part number: 140046
|
| 5. |
8308393
|
[1] |
DRIVE SHAFT
|
R
Control shaft D20h9x778
|
| 6. |
732-5032
|
[2] |
COTTER PIN,M5 x 32
|
CAS
Split pin 5 x 32
|
| 7. |
2342950
|
[4] |
WASHER
|
R
2 mm
|
| . . |
2342340
|
[1] |
WASHER
|
R
1 mm
|
| 8. |
6496940
|
[2] |
CYLINDER END CAP
|
R
Bearing
|
| 9. |
614-6020
|
[6] |
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 120100
|
| . . |
825-1406
|
[6] |
NUT,M6, Cl 8
|
CAS
Superseded by part number: 86500688
|
| . . |
2393860
|
[6] |
WASHER
|
R
Contact washer A 6 Superseded by part number: 86588450
|
| 10. |
932335R1
|
[2] |
COTTER PIN,3.5mm OD x 36mm L, Slotted
|
IH
Tensioning pin 3,5x 36a
|
| 11. |
235665.2
|
[2] |
Tensioning pin 6x 36-b
|
|
| 12. |
8308351
|
[1] |
LEVER
|
R
Limiting lever
|
| 13. |
2350840
|
[8] |
PIN, SPLIT (COTTER)
|
R
Split pin 3,2x 28
|
| 14. |
2369490
|
[8] |
WASHER
|
R
3,0 mm
|
| . . |
2369480
|
[1] |
WASHER
|
R
1,5 mm
|
| 15. |
8309580
|
[3] |
PIN
|
R
|
| 16. |
0085110
|
[10] |
SPACER
|
R
Bushing
|
| 17. |
2381320
|
[2] |
NUT
|
R
Securing nut Vm 8 Superseded by part number: 86528579
|
| 18. |
2442230
|
[2] |
SCREW
|
R
Hexagonal screw M 8x 50
|
| . . |
43362
|
[2] |
NUT,M8 x 1.25, Cl 10
|
BHB
M8, Cl 10
|
| . . |
98-029447
|
[2] |
WASHER
|
FO
Contact washer A 8 Superseded by part number: 322358
|
| 19. |
8310720
|
[1] |
SUPPORT
|
R
Release mit Pos. 16
|
| 20. |
8309331
|
[2] |
LARGE PLATE
|
R
Strap
|
| 21. |
8309591
|
[1] |
CLEVIS
|
R
Fork
|
| 22. |
9400020
|
[2] |
CLAMP
|
R
Wire rope clamp 3
|
| 24. |
08311091
|
[1] |
CABLE
|
R
Wire rope 3x 370
|
| 25. |
100016
|
[3] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 26. |
2112470
|
[1] |
SCREW
|
R
Hexagonal screw M10x130
|
| 27. |
5002981
|
[1] |
VALVE SPRING
|
R
Tension spring
|
| 28. |
8308322
|
[4] |
LARGE PLATE
|
R
Strap
|
| 29. |
8309411
|
[4] |
ROD
|
R
Threaded bolt
|
| 32. |
2422400
|
[2] |
SCREW
|
R
Socket head screw M 10x20
|
| . . |
98-029441
|
[2] |
WASHER
|
FO
Contact washer A10 Superseded by part number: 140045
|
| 33. |
8310710
|
[1] |
SUPPORT
|
R
Release rail mit Pos. 16
|
| 34. |
8309570
|
[1] |
LARGE PIN
|
R
Pin
|
| 35. |
0130040
|
[2] |
SPRING
|
R
Tension spring
|
| 36. |
2368260
|
[2] |
WASHER
|
R
8,4x 17 x1
|
| 38. |
2352211
|
[1] |
SCREW
|
R
Hexagonal screw M10x 60
|
| 39. |
2383160
|
[2] |
NUT
|
R
Securing nut Vm10
|
