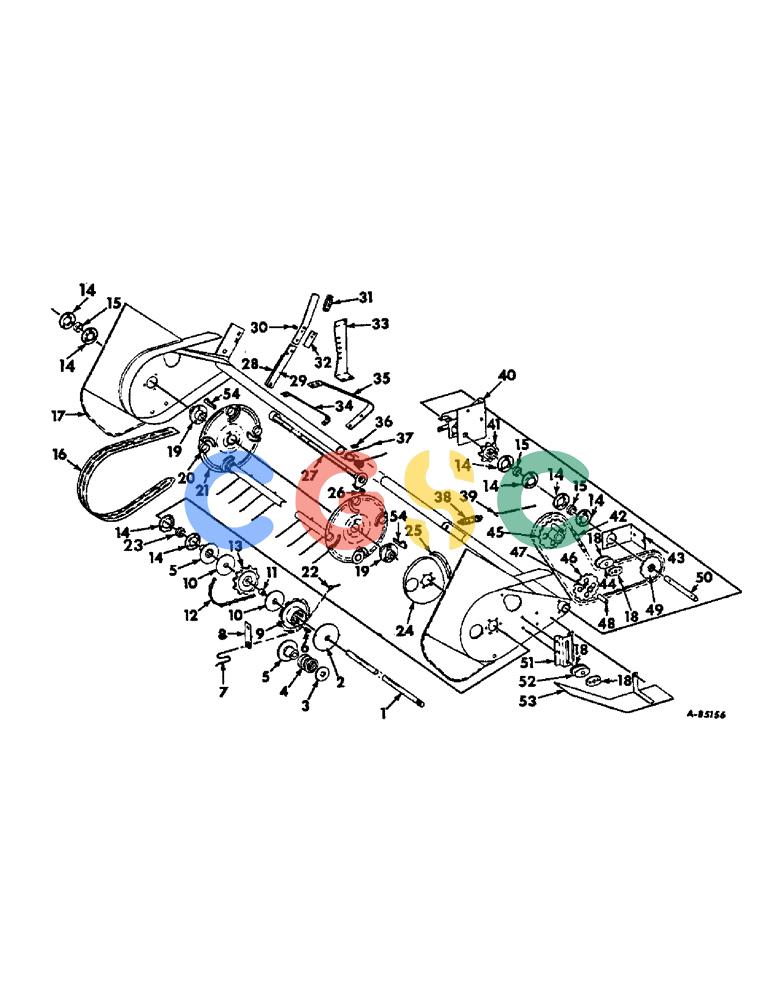

| 1. |
662074R1
|
[1] |
SHAFT
|
IH
pickup cylinder drive Superseded by part number: 662074R2
|
| . . |
427651
|
[1] |
SLOTTED NUT,1"-14, G5
|
IH
NUT, sl. 1 NF Superseded by part number: 86020752
|
| . . |
432-1232
|
[2] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Pin, Split (Cotter), 3/16" x 1 3/4" Superseded by part number: 87400
|
| . . |
Q114
|
[3] |
WASHER
|
IH
1-1/32 x 1-7/16 x 18 ga, (or as req) Superseded by part number: 591715R1
|
| . . |
551855R1
|
[1] |
WASHER
|
IH
1-1/32 x 1-1/4 x 16 ga, (or as req) Superseded by part number: 21789R1
|
| 2. |
667712R1
|
[1] |
|
P
WASHER, slip clutch retainer, used 47 Balers
|
| 3. |
662356R1
|
[1] |
DISC
|
IH
WASHER, slip clutch retainer, used 37 Balers Superseded by part number: 202090C1
|
| 4. |
U13661
|
[1] |
VALVE SPRING
|
IH
SPRING, pickup slip clutch, used 37 Balers
|
| 5. |
662026R2
|
[1] |
HUB
|
IH
pickup slip clutch, 1 used 37 Balers, 2 used 47 Balers Superseded by part number: 662026R4
|
| . . |
616253R1
|
[1] |
LOCK PIN,5/16" x 1 5/8", Slotted
|
IH
Pin, , 1 used 47 Balers, 2 used 37 Balers 5/16" x 1 5/8", Slotted Superseded by part number: 70921559
|
| 6. |
T576M
|
[1] |
SPRING
|
IH
pickup slip clutch, 4 used 47 Balers
|
| 8. |
667719R11
|
[1] |
|
P
GUIDE, pickup lift rope, 2 for 47 Baler
|
| . . |
80280503
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
|
BEL
BOLT, 3/8-16 x 1 short-sq-nk crg
|
| . . |
14995R1
|
[1] |
BOLT
|
IH
3/8 x 3/4 sq-nk crg Superseded by part number: 19284R1
|
| . . |
102635
|
[2] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[2] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 9. |
667711R1
|
[1] |
|
P
HUB, pickup lift, used 47 Balers
|
| . . |
576482R1
|
[1] |
LOCK PIN,5/16" x 2", Slotted
|
IH
used 47 Balers 5/16" x 2", Slotted Superseded by part number: 87040910
|
| 10. |
662291R1
|
[2] |
LINING
|
IH
FACING, pickup drive clutch Superseded by part number: 662291R2
|
| 11. |
662079R1
|
[1] |
BUSHING
|
IH
pickup slip clutch sprocket
|
| 12. |
CA320
|
[1] |
SPARE PART
|
IH
CHAIN, pickup drive, 28 links #55 steel chain Superseded by part number: CS55
|
| 13. |
662023R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup slip clutch
|
| 14. |
671682R1
|
[8] |
NO LONGER SERVICED
|
IH
FLANGE, pickup cylinder bearing Superseded by part number: 3101582R1
|
| . . |
14994R1
|
[3] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2 Superseded by part number: 434-512
|
| . . |
15007R1
|
[9] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2 Superseded by part number: 598803R1, 411-516
|
| . . |
103320
|
[12] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| . . |
9635082
|
[12] |
NUT,5/16" - 18, Gr 5
|
NH
5/16-18 hex.
|
| 15. |
671681R91
|
[3] |
BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W
|
IH
pickup cylinder
|
| 16. |
662316R1
|
[11] |
STRIPPER
|
IH
pickup Superseded by part number: 662316R2
|
| . . |
14993R1
|
[22] |
|
P
BOLT, cge, 1/4 x 3/4
|
| . . |
14985R1
|
[22] |
BOLT
|
IH
cge, 1/4 x 1/2 Superseded by part number: 598794R1
|
| . . |
109084
|
[44] |
NUT,1/4"-20, G5
|
IH
Superseded by part number: 7770
|
| . . |
103319
|
[44] |
LOCK WASHER,1/4"
|
IH
WASHER, LOCK, 1/4" Superseded by part number: 92-11025
|
| 17. |
668979R91
|
[1] |
|
P
CYLINDER ASSY, pickup, consists of ref. Nos.1, 2, 5, 6, 9, 10, 11, 13, 15, 16, 17, 19, 20, 21, 23, 24, 25, 26, 27, 34, 35, 36, 37, 51, 54
|
| 17. |
667701R91
|
[1] |
|
P
FRAME, pickup, cpt.
|
| . . |
137333
|
[2] |
PIN, cotter, plated, 5/16 x 3
|
|
| 18. |
673666R1
|
[1] |
CAP
|
IH
block tightener end, for 37 Baler serial No. 11058M up, for 47 Baler serial No. 14214M up
|
| . . |
15128R1
|
[1] |
BOLT,Sq Nk, 5/8" - 11 x 2 3/4"
|
IH
5/8-11 x 2-3/4 sq-nk crg Superseded by part number: 9602228
|
| . . |
15162R1
|
[1] |
BOLT, 5/8 x 3-1/4 crg
|
|
| . . |
102639
|
[2] |
NUT,5/8"-11, G5
|
IH
Superseded by part number: 280374
|
| . . |
103325
|
[2] |
LOCK WASHER,5/8"
|
IH
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
551177R1
|
[2] |
WASHER
|
IH
21/32 x 1-1/4 x 16 ga Superseded by part number: 131016
|
| . . |
Q1560
|
[2] |
|
P
WASHER, 31/32 x 1-1/2 x 9 ga
|
| 19. |
659942R1
|
[2] |
HUB
|
IH
pickup cylinder driving
|
| . . |
VC4941/2
|
[2] |
PIN, 5/16 x 2 std-hd
|
|
| . . |
103384
|
[2] |
COTTER PIN,1/8" x 3/4"
|
IH
Pin, Split (Cotter), 1/8" x 3/4" Superseded by part number: 80755
|
| 20. |
659437R1
|
[8] |
BUSHING
|
IH
pickup cylinder end
|
| 21. |
667705R11
|
[1] |
END
|
IH
W/BUSHING, pickup cylinder
|
| . . |
17425R1
|
[6] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
mach. 5/16 x 1 Superseded by part number: 179818
|
| 22. |
667720R1
|
[1] |
|
P
EYEBOLT, pickup lift, for 47 Baler
|
| 23. |
155264C91
|
[1] |
BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W
|
IH
pickup cylinder drive side, (replaces 671681R91, 155264R91)
|
| 24. |
662317R2
|
[1] |
CAM
|
IH
pickup tooth control
|
| 25. |
662318R11
|
[1] |
GUIDE
|
IH
tooth bar roller
|
| . . |
114662
|
[1] |
SCREW
|
IH
fl. hd. sl. 5/16 x 5/8 Superseded by part number: 182-515
|
| . . |
114617
|
[1] |
LOCK WASHER,Ext Csk Tooth, 5/16"
|
CAS
WASHER, ctsk ex tooth lock 5/16 Superseded by part number: 114617A1
|
| 26. |
ST543
|
[4] |
BALL BEARING,15mm ID x 35mm OD x 11mm W
|
IH
BEARING, pickup cylinder tine control
|
| . . |
Q366
|
[16] |
WASHER
|
IH
2-1/16 x 2-5/16 x 16 ga., (or as required) Superseded by part number: 86625259
|
| . . |
432-1240
|
[4] |
COTTER PIN,3/16" x 2 1/2"
|
CAS
Pin, Split (Cotter), 3/16" x 2 1/2" Superseded by part number: 86523959
|
| 27. |
495279R93
|
[4] |
CARRIER
|
IH
BAR, pickup tooth Superseded by part number: 3100831R92
|
| 28. |
662417R1
|
[1] |
|
P
ARM, pickup floating lever R.
|
| 29. |
662415R91
|
[1] |
LEVER
|
IH
pickup, cpt.
|
| . . |
104099
|
[2] |
RIVET,But Hd, 5/16" x 1"
|
IH
rd. hd. hd. 5/17 x 1 Superseded by part number: 45-516
|
| . . |
663922R1
|
[1] |
PIN,5/8" x 1 3/8"
|
IH
std. hd. cd. pl. 5/8 x 1-3/8 Superseded by part number: 21808R1
|
| . . |
432-1220
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
PIN, cotter, 3/8 x 1-1/4 Superseded by part number: 87398
|
| 30. |
18489D
|
[1] |
SPRING
|
IH
pickup lever clip
|
| . . |
U5353
|
[1] |
DOWEL
|
IH
PIN, std. hd. 5/16 x 2-3/16
|
| . . |
Q397
|
[1] |
WASHER
|
IH
11/32 x 3/4 x 16 ga. Superseded by part number: 95-81069
|
| 31. |
666930R1
|
[1] |
|
P
GRIP, pickup lever, used on 47 Baler
|
| 32. |
662506R1
|
[1] |
CLIP
|
IH
pickup lever
|
| 33. |
662419R1
|
[1] |
|
P
QUADRANT, pickup lever
|
| . . |
128144
|
[1] |
|
P
WASHER, 3/8 x 1-1/8 x .065
|
| 34. |
662314R1
|
[11] |
BRACE
|
IH
pickup stripper
|
| . . |
17574R1
|
[11] |
BOLT (SPREADER)
|
IH
BOLT, mach. 3/8 x 2-1/2 Superseded by part number: 179849
|
| 35. |
662315R1
|
[11] |
SUPPORT
|
IH
pickup stripper
|
| 36. |
27513K
|
[24] |
CUP WASHER
|
IH
WASHER, pickup cylinder spring tooth
|
| 37. |
MA74528
|
[24] |
SPRING
|
IH
pickup tooth
|
| 38. |
MA731
|
[1] |
SPRING
|
IH
pickup balance
|
| 39. |
665580R1
|
[1] |
|
P
BOLT, balance spring
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 40. |
667714R91
|
[1] |
|
P
BRACKET, pickup drive shaft pivot right
|
| . . |
17427R1
|
[1] |
BOLT, 7/16-14 x 1 hex-hd mach
|
|
| . . |
17447R1
|
[3] |
BOLT
|
IH
7/16-14 x 1-1/4 hex-hd mach
|
| . . |
NLS
|
[4] |
NO LONGER SERVICED
|
BAS
7/16-14 hex.
|
| . . |
103322
|
[4] |
LOCK WASHER,7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
21933K
|
[4] |
|
P
WASHER, 15/32 x 13/16 x 16 ga
|
| 41. |
662024R1
|
[1] |
SPROCKET
|
IH
pickup pivot drive shaft Superseded by part number: 662024R2
|
| . . |
Q1302
|
[1] |
HEADED PIN,5/16" x 2 1/4"
|
IH
PIN, 5/16 x 2-1/4 std-hd Superseded by part number: 439-5536
|
| 43. |
667717R1
|
[1] |
BRACKET
|
IH
pickup pivot drive shaft left
|
| 44. |
667459R1
|
[1] |
BLOCK
|
IH
tightener
|
| 45. |
662025R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup drive
|
| . . |
17648R1
|
[1] |
BOLT, 3/8-16 x 3-1/4 hex-hd mach
|
|
| 46. |
662575R1
|
[1] |
GEAR
|
IH
IDLER, main drive front
|
| 47. |
109461
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 48. |
668568R1
|
[1] |
BUSHING
|
IH
pickup idler sprocket
|
| . . |
17629R1
|
[1] |
BOLT,Hex, 5/8" - 11 x 3"
|
IH
5/8-11 x 3 hex-hd mach Superseded by part number: 87338
|
| . . |
10620P
|
[1] |
WASHER
|
IH
21/32 x 1-1/2 x 16 ga Superseded by part number: 87613191
|
| 49. |
662003R1
|
[1] |
SPROCKET
|
IH
pickup pivot driver Superseded by part number: 662003R2
|
| 50. |
667713R1
|
[1] |
SHAFT
|
IH
pickup pivot drive Superseded by part number: 667713R2
|
| 51. |
667718R1
|
[1] |
BRACKET
|
IH
pickup idler
|
| 52. |
668147R1
|
[1] |
BLOCK
|
IH
tightener Superseded by part number: 667459R1
|
| 53. |
662297R91
|
[1] |
SHIELD
|
IH
ASSY, pickup drive
|
| . . |
19416R1
|
[1] |
BOLT
|
IH
5/16 x 3/4 CDP sq-nk crg Superseded by part number: 598802R1
|
| . . |
120376
|
[1] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
19420R1
|
[1] |
BOLT, 7/16 x 3/4 CDP hex-hd
|
|
| 54. |
Q3931
|
[2] |
KEY,Gib, 5/16" Sq x 1 7/8"
|
IH
5/16 x 1-7/8 tapered gib
|
