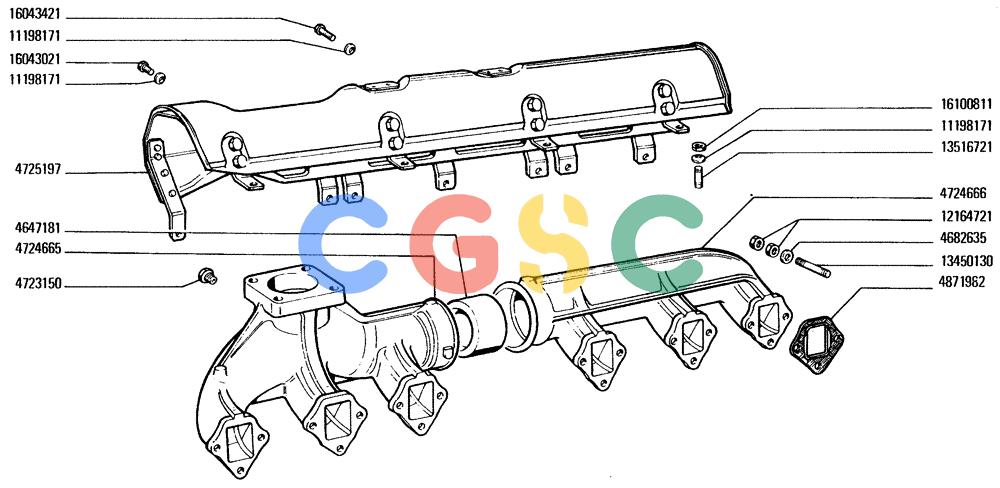

纽荷兰零件查询(FD20) - CRAWLER DOZER (A2.54[002]) - INTAKE AND EXHAUST MANIFOLDS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
726 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4647181. | 4647181 | [1] | RING | BRE |
| 4682635. | 4682635 | [18] | WASHER | BRE Superseded by part number: 98471734 |
| 4723150. | 4723150 | [1] | PLUG | MOD Superseded by part number: 4817522 |
| 4724665. | 4724665 | [1] | MANIFOLD | LECEXHAUST MANIFOLD |
| 4724666. | 4724666 | [1] | DUCT | LECEXHAUST MANIFOLD |
| 4725197. | 4725197 | [1] | GUARD | LECPROTECTION |
| 4871982. | 4871982 | [6] | MANIFOLD GASKET | BRE Superseded by part number: 4839530 |
| 1118171. | 11198171 | [36] | LOCK WASHER | MKTLOCKWASHER Superseded by part number: 17089874 |
| 12164721. | 12164721 | [36] | NUT,M10 x 1.25, Cl 10 | TTF |
| 13450130. | 13450130 | [18] | STUD | LEC |
| 13516721. | 13516721 | [4] | STUD | MKT |
| 16043021. | 16043021 | [25] | SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd | LECBOLT, Hex, M8 x 12, 8.8, Full Thd Superseded by part number: 16043024 |
| 16043421. | 16043421 | [7] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M8 x 20, 8.8 Superseded by part number: 16043424 |
| 16100811. | 16100811 | [4] | NUT,Hex, M8, 6.80mm, Cl 8, ZND | TTFM8, Cl 8 Superseded by part number: 43362 |
