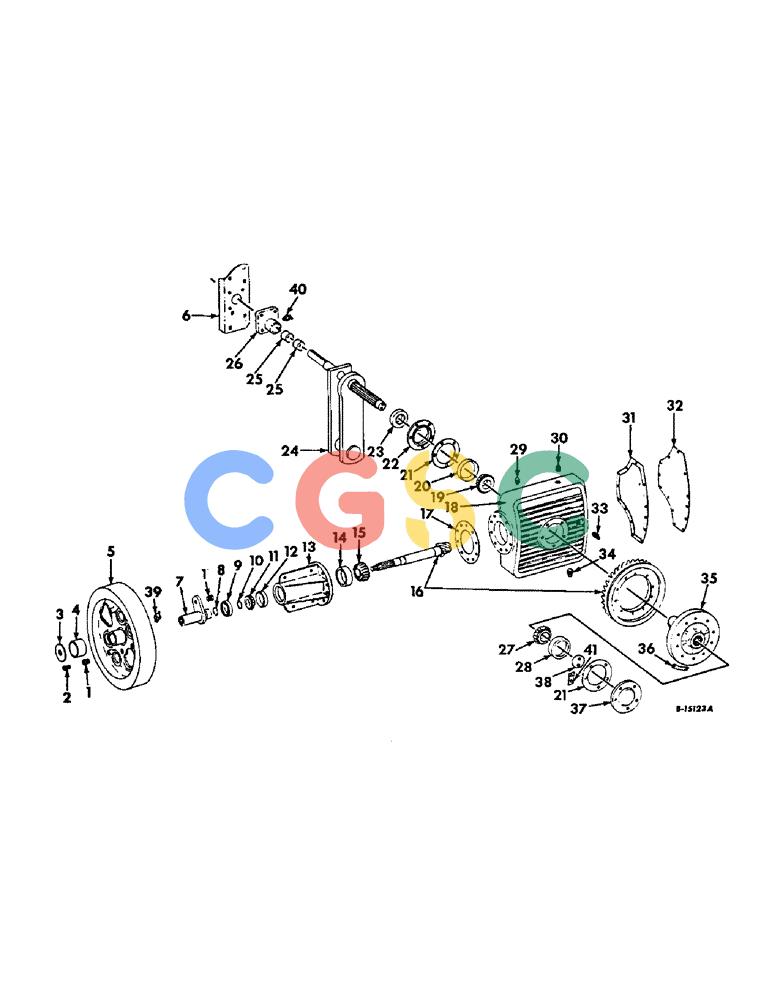

| 1. |
662122R1
|
[2] |
SHEAR BOLT BUSHING,Hex, 3/4" - 16 x 1/2"
|
IH
BUSHING, flywheel shear bolt, 000504 thru 002381
|
| 1. |
662555R1
|
[1] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
shear bolt, 002382 and up
|
| 2. |
181620
|
[7] |
SCREW,Hex, 5/16" - 24 x 2", Gr 5
|
IH
5/16-24 x 2 C-Z hex-hd cap shear bolt Superseded by part number: 414-532
|
| . . |
120368
|
[7] |
NUT,5/16"-24, G5
|
IH
Superseded by part number: 86629539
|
| . . |
80681
|
[7] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 3. |
670572R91
|
[1] |
|
P
WASHER ASSY, flywheel thrust, 000504 thru 002381
|
| 3. |
670573R1
|
[1] |
|
P
WASHER, flywheel thrust, 002382 thru 003106
|
| 3. |
202973C1
|
[1] |
|
P
WASHER, flywheel thrust, 003107 thru 003405
|
| 3. |
662103R1
|
[1] |
THRUST WASHER
|
IH
flywheel thrust, 003406 and up
|
| 4. |
662120R1
|
[1] |
BUSHING
|
IH
flywheel outer, 000504 thru 002381
|
| 4. |
201741C1
|
[1] |
FLYWHEEL
|
IH
BUSHING, flywheel, 002382 and up
|
| 5. |
667700R21
|
[1] |
FLYWHEEL
|
IH
W/BUSHINGS
|
| 6. |
670571R1
|
[1] |
SUPPORT ASSY.
|
IH
SUPPORT, plunger crank brg RH
|
| . . |
17433R1
|
[4] |
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
|
IH
BOLT, 1/2 x 1 C-Z hex-hd mach Superseded by part number: 424-816
|
| . . |
120384
|
[4] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| . . |
18508R1
|
[6] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| . . |
120377
|
[6] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[6] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 7. |
202483C91
|
[1] |
HUB
|
IH
ASSY, flywheel service pkg., consists of (1) hub assy, flywheel 667633R22 (NSS), (1) bushing 662555R1, (2) shim .005, 667605R1, (2) shim .007, 667606R1, (1) o-ring 310931R1
|
| 8. |
310931R1
|
[1] |
O-RING
|
IH
RING, flywheel hub O Superseded by part number: 70925639
|
| 9. |
380768R91
|
[1] |
OIL SEAL
|
IH
pinion shaft front oil
|
| 10. |
667605R1
|
[3] |
SHIM
|
IH
brg preload .005 (or as required)
|
| 10. |
667606R1
|
[2] |
SHIM
|
IH
brg preload .007 (or as required)
|
| 10. |
667607R1
|
[1] |
SHIM
|
IH
brg preload .020 (or as required)
|
| 11. |
ST2118
|
[1] |
TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"
|
IH
BEARING ASSY, pinion shaft front cone, replaces 62923R91 Superseded by part number: 84385347
|
| 12. |
ST987
|
[1] |
BEARING CUP
|
IH
BEARING, pinion shaft front cup, replaces 130503H Superseded by part number: 86900365
|
| 13. |
667601R1
|
[1] |
CASE
|
IH
main drive rear front
|
| . . |
179885
|
[4] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
Superseded by part number: 87689
|
| . . |
664573R1
|
[4] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2-13 hex. lock Superseded by part number: 231-4218
|
| . . |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| . . |
178373R1
|
[4] |
WASHER
|
IH
17/32 x 1 x 16 ga C-Z Superseded by part number: 495-51053
|
| . . |
180149
|
[10] |
LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5
|
IH
SCREW, 7/16-14 x 1-1/2 znd hex-hd cap Superseded by part number: 9637916
|
| . . |
120383
|
[10] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 14. |
107577R1
|
[1] |
BEARING, CUP
|
IH
BEARING, pinion shaft rear cup Superseded by part number: 86613256
|
| 15. |
662062R91
|
[1] |
ROLLER BEARING
|
IH
ASSY, pinion shaft rear cone
|
| 16. |
662050R11
|
[1] |
STRIPPER PACKAGE
|
IH
GEAR ASSY, ring and pinion Superseded by part number: 3102207R91
|
| . . |
427646
|
[1] |
SLOTTED NUT,7/8"-14, G5
|
IH
NUT, 7/8-14 C-Z slt hex., 000504 thru 002381 Superseded by part number: 26963R1
|
| . . |
425-1914
|
[1] |
SLOTTED NUT,7/8"-14, G5, Thk
|
CAS
NUT, 7/8-14 znd slt thick hex., 002382 and up
|
| . . |
137218
|
[1] |
COTTER PIN,5/32" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 5/32" x 1 1/4" Superseded by part number: 86523851
|
| 17. |
662088R1
|
[2] |
SHIM
|
IH
main drive gear case .020, (or as required)
|
| 17. |
662089R1
|
[2] |
SHIM
|
IH
main drive gear case .007, (or as required)
|
| 17. |
662090R1
|
[3] |
SHIM
|
IH
main drive gear case .005, (or as required)
|
| 18. |
667600R2
|
[1] |
CASE
|
IH
main drive gear rear
|
| . . |
413-1024
|
[2] |
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
|
CAS
SCREW, 5/8-11 x 1-1/2 hex-hd cap Superseded by part number: 88062
|
| . . |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
21067R1
|
[2] |
|
P
SCREW, 3/4-10 x 2-1/2 hex-hd nylock cap
|
| . . |
87340
|
[2] |
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
|
NH
WASHER, LOCK, 3/4"
|
| 19. |
ST2083
|
[1] |
BEARING ASSY
|
IH
main drive gear RH
|
| 20. |
13390D
|
[1] |
ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"
|
IH
main drive gear cup Superseded by part number: 163044
|
| 21. |
662091R1
|
[8] |
SHIM
|
IH
main drive bevel gear .005, (or as required)
|
| 21. |
662093R1
|
[4] |
SHIM
|
IH
main drive bevel gear .007, (or as required)
|
| 21. |
662092R1
|
[2] |
SHIM
|
IH
main drive bevel gear .020, (or as required)
|
| 22. |
662017R1
|
[1] |
COVER
|
IH
main drive bevel gear brg
|
| . . |
181420R1
|
[5] |
SCREW,Hex, 3/8" - 16 x 1", w/ Nylon Pellet
|
IH
3/8-16 x 1 C-Z hex-hd nylock cap Superseded by part number: 310-1616
|
| 23. |
662066R91
|
[1] |
OIL SEAL,60.33mm ID x 92.15mm OD x 11mm Thk
|
IH
plunger crank oil RH
|
| 24. |
667632R92
|
[1] |
CRANKSHAFT
|
IH
ASSY, plunger
|
| 25. |
670570R1
|
[2] |
BUSHING
|
IH
plunger crank RH
|
| 26. |
670569R11
|
[1] |
BUSHING
|
IH
BEARING W/BUSHING, plunger crank RH
|
| 27. |
971528R91
|
[1] |
BEARING
|
IH
ASSY, main drive gear cone Superseded by part number: 86577085
|
| 28. |
13363D
|
[1] |
TAPERED BEARING
|
IH
BEARING, main drive gear cup, replaces 22396V Superseded by part number: 510892
|
| 29. |
152127H1
|
[1] |
BREATHER,1/8"-27, Short
|
IH
VENT ASSY, main drive gear box, replaces 663002R91 Superseded by part number: 219-433
|
| 30. |
444676
|
[1] |
DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF
|
IH
PLUG, 1-11-1/2 automotive sq-soc pipe Superseded by part number: 221-846
|
| 31. |
667603R1
|
[1] |
GASKET
|
IH
main drive gear box cover
|
| 32. |
667602R11
|
[1] |
COVER
|
IH
ASSY, main drive gear case rear
|
| . . |
18764R1
|
[13] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 C-Z hex-hd mach Superseded by part number: 424-512
|
| 33. |
444574
|
[1] |
PLUG,Sq Hd, 1/4"-18 NPTF
|
IH
1/4-18 automotive sq-hd pipe
|
| 34. |
438159
|
[1] |
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
|
IH
PLUG, 1/2-14 automotive sq-hd pipe Superseded by part number: 444587
|
| 35. |
670568R1
|
[1] |
HUB
|
IH
main bevel gear
|
| . . |
181701
|
[10] |
BOLT,Hex, 1/2" - 20 x 1 5/8", Gr 5
|
IH
SCREW, 1/2-20 x 1-5/8 C-Z hex-hd cap Superseded by part number: 414-826
|
| 36. |
261622R1
|
[5] |
PLATE, LOCKING
|
IH
LOCKPLATE, main drive gear hub cap screw
|
| 37. |
667604R1
|
[1] |
CAP
|
IH
main drive bevel gear
|
| 38. |
200525C1
|
[1] |
WASHER
|
IH
plunger crankshaft thrust
|
| . . |
15507H
|
[2] |
SCREW,Hex, 5/16" - 24 x 1"
|
IH
3/8-24 x 1 hex-hd cap
|
| 39. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 str self tapping lub
|
| 40. |
87569
|
[1] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28 self tapping 45 deg angle lub
|
| 41. |
201580C1
|
[1] |
PLATE
|
IH
TAB, bolt holder
|
| . . |
181364
|
[2] |
BOLT,Hex, 3/8" - 24 x 1", Gr 5
|
IH
SCREW, 3/8-24 x 1 hex-hd cap Superseded by part number: 88374
|
