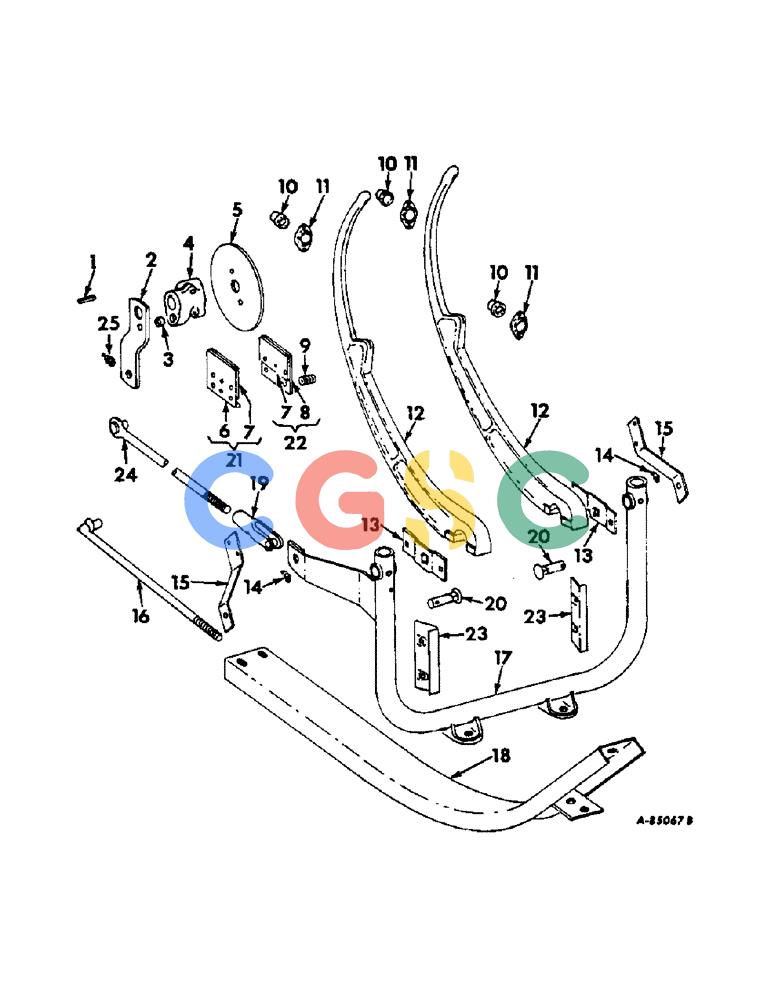

| 1. |
Q72
|
[1] |
KEY,5/16" Sq x 1 7/8", Par
|
IH
3/8 x 1-7/8 sq-parallel
|
| 2. |
201670C1
|
[1] |
DRAWBAR
|
IH
CRANK, needle drive, 001871 and up
|
| 2. |
662283R1
|
[1] |
CRANK
|
IH
needle drive, 001870 and below Superseded by part number: 754729R92, 754576R91
|
| 3. |
662555R1
|
[1] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
shear bolt
|
| . . |
120368
|
[1] |
NUT,5/16"-24, G5
|
IH
Superseded by part number: 86629539
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 4. |
202710C91
|
[1] |
HUB
|
IH
needle drive crank, includes 662555R1 bushing
|
| . . |
443056
|
[1] |
PIN,3/8" x 2", Type F
|
IH
Grooved, 3/8" x 2", Type F Superseded by part number: 86624092
|
| 5. |
662153R1
|
[1] |
PLATE
|
IH
knotter brake pressure
|
| . . |
113-206
|
[2] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
|
CAS
3/8-16 x 3/4 C-Z hex-hd cap Superseded by part number: 86500692
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 9. |
U13033
|
[2] |
SPRING
|
IH
knotter brake
|
| . . |
18770R1
|
[2] |
BOLT,Hex, 5/16"-18 x 2 3/4", G2
|
IH
5/16 x 2-3/4 C-Z hex-hd mach Superseded by part number: 180112
|
| . . |
120376
|
[4] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
120393
|
[2] |
BEARING WASHER,5/16", SAE
|
IH
WASHER , 11/32 x 11/16 x .065 C-Z Superseded by part number: 28588R1
|
| 10. |
670617R2
|
[3] |
GUIDE
|
IH
twine Superseded by part number: 3102165R2
|
| 11. |
352133R1
|
[3] |
PLATE
|
IH
twine guide mounting
|
| . . |
436732
|
[6] |
SCREW,Slotted Pan Hd, #10-24 x 1/2"
|
IH
10-24 x 1/2 C-Z slt-pan-hd mach Superseded by part number: 70-1108
|
| . . |
120361
|
[6] |
NUT,Hex Mach Screw, #10 - 24
|
IH
Superseded by part number: 87304
|
| . . |
120217
|
[6] |
LOCK WASHER,#10
|
IH
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 12. |
673306R3
|
[2] |
NEEDLE BEARING CAGE
|
IH
NEEDLE, twine, 00504 thru 002381 Superseded by part number: 673306R4
|
| 12. |
200588C5
|
[2] |
NEEDLE
|
IH
twine, 002382 and up
|
| . . |
179889
|
[4] |
BOLT,Hex, 1/2" - 13 x 2", Gr 5
|
IH
SCREW, 1/2-13 x 2 hex-hd cap Superseded by part number: 9706716
|
| . . |
120384
|
[4] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| . . |
455150R1
|
[4] |
WASHER
|
IH
17/32 x 1-1/4 x 1/4 C-Z Superseded by part number: 87393626
|
| 13. |
673303R2
|
[2] |
SUPPORT
|
IH
PIVOT, needle tie pipe, if 673303R1 is required order 673303R2 and 201579C1
|
| 14. |
1127743
|
[2] |
FITTING, 1/8-27 PTF 65 deg angle lub
|
WINDOW
|
| . . |
615041R1
|
[2] |
WASHER
|
IH
13/32 x 7/8 x 14 ga C-Z Superseded by part number: 195-104
|
| 15. |
673305R1
|
[2] |
SUPPORT
|
IH
STRAP, needle pivot support
|
| . . |
17351R1
|
[4] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 C-Z sq-nk crg Superseded by part number: 88682
|
| . . |
120377
|
[4] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 16. |
662282R1
|
[1] |
PITMAN
|
CAS
needle Superseded by part number: 1980553C1
|
| . . |
121358
|
[1] |
YOKE
|
NNA
5/8-18 C-Z hex. Superseded by part number: 425-1110, 425-1110, NLS
|
| . . |
21796R1
|
[2] |
WASHER
|
IH
21/32 x 1 x 16 ga C-Z Superseded by part number: 495-81176
|
| . . |
178375R1
|
[1] |
WASHER
|
IH
25/32 x 1-1/4 x 16 ga C-Z Superseded by part number: 249100
|
| . . |
87395
|
[1] |
COTTER PIN,1/8" OD x 1-1/4" OAL
|
NH
PIN, SPLIT (COTTER), 1/8" x 1-1/4"
|
| . . |
22754R1
|
[1] |
CLEVIS PIN,5/8" x 1.844"
|
IH
PIN, CLEVIS, , Rod end 5/8" x 1.844"
|
| . . |
137185
|
[1] |
COTTER PIN,1/8" x 1"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755
|
| 17. |
673299R2
|
[1] |
TUBE,21.56" Length
|
IH
PIPE ASSY, needle tie, 000504 thru 002381
|
| 17. |
201095C2
|
[1] |
PIPE
|
IH
ASSY, needle tie, 002382 and up
|
| 18. |
674004R1
|
[1] |
BRACKET
|
IH
GUARD ASSY, needle
|
| . . |
180147
|
[2] |
SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5
|
IH
7/16-14 x 1-1/4 C-Z hex-hd cap Superseded by part number: 9627887
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
NUT, 7/16-14 C-Z hex.
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
607891R1
|
[2] |
WASHER
|
IH
15/32 x 1 x 16 ga C-Z Superseded by part number: 495-81158
|
| . . |
432-1232
|
[1] |
COTTER PIN,3/16" OD x 2" L
|
CAS
PIN, 3/16 x 2-1/4 znp cot. Superseded by part number: 87400
|
| . . |
469668R1
|
[2] |
WASHER
|
IH
13/32 x 3/4, 16 ga C-Z Superseded by part number: 86632580
|
| 19. |
127786
|
[1] |
ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"
|
IH
CLEVIS, 5/8-18 x 4-15/16 adj rod end Superseded by part number: 213-2110
|
| 20. |
201579C1
|
[2] |
AXLE PIN
|
IH
PIN, needle tie pipe pivot
|
| 21. |
754777R91
|
[1] |
SHOE
|
IH
ASSY, knotter shaft brake LH Superseded by part number: 754777R92
|
| 22. |
754778R91
|
[1] |
SHOE
|
IH
ASSY, knotter shaft brake RH Superseded by part number: 754778R92
|
| . . |
180044
|
[1] |
SPRING
|
NNA
SCREW, 1/4-20 x 2 znd hex-hd cap Superseded by part number: 413-432, 413-432, NLS
|
| . . |
120375
|
[2] |
NUT,Hex, 1/4" - 20, Gr 5
|
IH
Superseded by part number: 7770
|
| 23. |
674099R1
|
[2] |
WEDGE
|
IH
hay
|
| . . |
22833R1
|
[4] |
BOLT, 7/16 x 7/8 znd sq-nk crg
|
|
| . . |
271501
|
[4] |
SOCKET
|
NNA
NUT, 7/16-14 znd hex.
|
| . . |
187988
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
| 24. |
201667C91
|
[1] |
PITMAN
|
IH
W/PIN, needle, 001871 and up
|
| 25. |
80722
|
[1] |
LUBE NIPPLE,3/16" x .55" lg, Drive
|
WIN
FITTING, 3/16 str drive lub, 001871 and up
|
