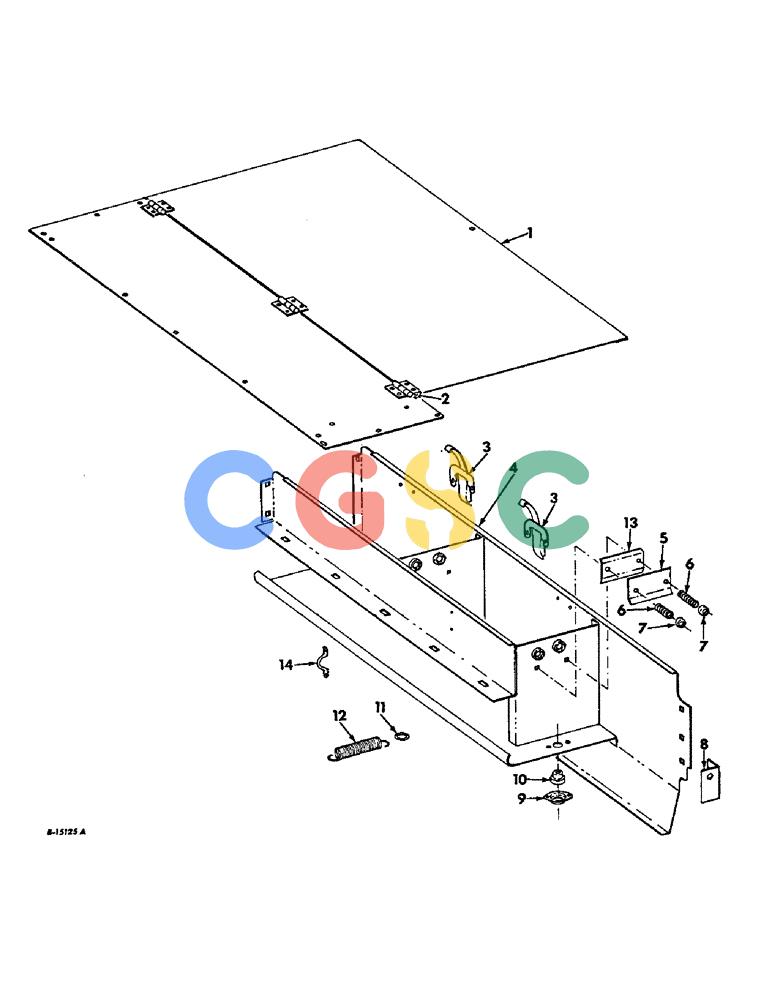

| 1. |
670627R91
|
[1] |
DOOR
|
IH
ASSY, twine chest
|
| . . |
18473R1
|
[7] |
SCREW,Hex, 5/16"-18 X 5/8", G2
|
IH
BOLT, 5/16 x 5/8 C-Z hex-hd mach Superseded by part number: 326-512
|
| . . |
80681
|
[7] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
120376
|
[3] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
619855R1
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| 2. |
670628R1
|
[3] |
HINGE
|
IH
twine chest door
|
| . . |
106883
|
[12] |
RIVET,Truss Hd, 3/16" x 3/8"
|
IH
Superseded by part number: 87467
|
| . . |
16547R1
|
[12] |
WASHER,0.2" ID x 0.5" OD x 0.04" Thk
|
CAS
13/64 x 1/2 x 11 ga C-Z
|
| 3. |
669184R1
|
[2] |
CLAMP
|
IH
twine chest door Superseded by part number: 1333780C1
|
| . . |
436730
|
[4] |
LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"
|
IH
SCREW, 10-24 x 3/48 C-Z slt-pan-hd mach Superseded by part number: 159908
|
| . . |
120361
|
[4] |
NUT,Hex Mach Screw, #10 - 24
|
IH
Superseded by part number: 87304
|
| . . |
120217
|
[4] |
LOCK WASHER,#10
|
IH
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 4. |
673407R1
|
[1] |
|
P
CHEST ASSY, twine
|
| . . |
18673R1
|
[12] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
|
IH
BOLT, 5/16 x 1/2 C-Z sq-nk crg Superseded by part number: 411-58
|
| . . |
18778R1
|
[12] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 C-Z med lock Superseded by part number: 180120
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[1] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 5. |
673760R1
|
[1] |
PLATE
|
IH
twine tension outside
|
| 6. |
269920R2
|
[2] |
SPRING
|
IH
twine tension roller
|
| 7. |
B32120
|
[2] |
WASHER
|
IH
twine roller spring cup
|
| . . |
495058R2
|
[2] |
BOLT,Carriage, 1/4" - 20 x 3"
|
IH
1/4 x 3 znd sq-nk crg
|
| . . |
126177
|
[2] |
WING NUT
|
IH
NUT, 1/4-20 znd wing Superseded by part number: 129-409, 129-409, 86627130
|
| 8. |
670622R2
|
[1] |
|
P
ANGLE, twine chest
|
| 9. |
352133R1
|
[1] |
PLATE
|
IH
twine guide mounting
|
| . . |
436732
|
[2] |
SCREW,Slotted Pan Hd, #10-24 x 1/2"
|
IH
10-24 x 1/2 C-Z slt-pan-hd mach Superseded by part number: 70-1108
|
| 10. |
670617R2
|
[1] |
GUIDE
|
IH
twine Superseded by part number: 3102165R2
|
| 11. |
670621R1
|
[2] |
RING
|
IH
slack arm
|
| 12. |
457094R1
|
[2] |
SPRING
|
IH
slack arm
|
| . . |
21644R1
|
[2] |
PIN,1/4" x 1"
|
IH
Split (Cotter), 1/4" x 1" Superseded by part number: 87401
|
| 13. |
662380R1
|
[1] |
GUIDE
|
IH
PLATE, twine tension
|
| 14. |
655108R2
|
[1] |
GUIDE
|
IH
twine
|
