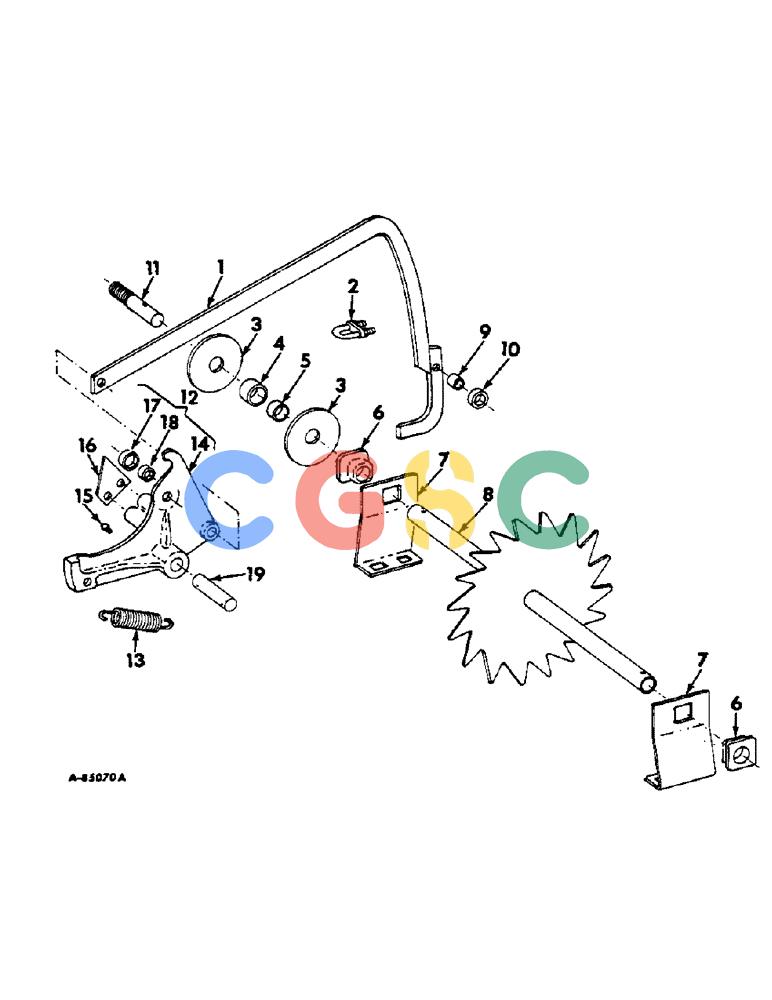

| 1. |
674019R1
|
[1] |
LEVER
|
IH
ROD ASSY, trip
|
| . . |
21964R1
|
[1] |
HEADED PIN,3/8" x 1 1/2"
|
IH
PIN, 3/8 x 1-1/2 znp std-hd Superseded by part number: 439-1624
|
| . . |
20803R1
|
[1] |
WASHER
|
IH
13/32 x 1 x 11 ga C-Z Superseded by part number: 87613212
|
| . . |
648002
|
[1] |
1/8" x 3/4"
|
KNIFE
|
| 2. |
667502R91
|
[1] |
SUPPORT
|
IH
CLAMP ASSY, trip rod
|
| 3. |
667782R1
|
[2] |
SHEAVE
|
IH
trip rod Superseded by part number: 210557C1
|
| 4. |
3100851R1
|
[1] |
ROLLER,35.05mm OD x 13.49mm L
|
IH
trip rod
|
| 5. |
3100852R1
|
[1] |
SPACER,16.94mm ID x 22.23mm OD x 12.7mm L
|
IH
trip rod roller
|
| 6. |
668999R1
|
[2] |
BUSHING
|
IH
meter wheel flanged
|
| 7. |
674013R1
|
[2] |
BRACKET
|
IH
meter wheel shaft brg
|
| . . |
18508R1
|
[4] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| . . |
120377
|
[4] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[4] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
619856R1
|
[4] |
WASHER
|
IH
13/32 x 1 x 16 ga C-Z Superseded by part number: 87613182
|
| 8. |
674014R1
|
[1] |
WHEEL (STEERING)
|
IH
WHEEL ASSY, meter Superseded by part number: 204616C1
|
| 9. |
674020R1
|
[1] |
BUSHING,6.55mm ID x 9.53mm OD x 10.67mm L
|
IH
trip rod
|
| 10. |
674021R1
|
[1] |
ROLLER,22.23mm OD x 9.65mm L
|
IH
trip rod
|
| . . |
18656R1
|
[1] |
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2
|
IH
1/4 x 1-1/4 C-Z hex-hd mach Superseded by part number: 424-420
|
| . . |
120375
|
[1] |
NUT,Hex, 1/4" - 20, Gr 5
|
IH
Superseded by part number: 7770
|
| . . |
492-11025
|
[1] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
21549R1
|
[1] |
WASHER
|
IH
9/32 x 3/4 x 18 ga C-Z Superseded by part number: 495-81106
|
| 11. |
674017R1
|
[1] |
LARGE PIN
|
IH
STUD, trip rod roller
|
| . . |
425-110
|
[1] |
5/8-18 znd hex.
|
|
| . . |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
20703R1
|
[2] |
WASHER
|
IH
29/32 x 1-3/4 x 16 ga C-Z, (or as required) Superseded by part number: 495-81059
|
| . . |
21648R1
|
[2] |
LOCK PIN,1/4" x 1 1/4", Slotted
|
IH
Pin, 1/4" x 1 1/4", Slotted Superseded by part number: 438-11620
|
| . . |
23277R1
|
[1] |
LOCK PIN,5/32" x 1 1/4", Slotted
|
IH
PIN, 5/32" x 1 1/4", Slotted Superseded by part number: 17080R1
|
| 12. |
670671R31
|
[1] |
ARM
|
IH
ASSY, trip
|
| 13. |
13985V
|
[1] |
SPRING
|
IH
trip lever return
|
| 15. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 self tap. str lub
|
| 16. |
670674R2
|
[1] |
SUPPORT
|
IH
CAM, trip arm unlocking
|
| . . |
665447R1
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Pellet
|
IH
5/16 x 3/4 C-Z hex-hd nylock
|
| . . |
80681
|
[2] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
619855R1
|
[4] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| 17. |
670673R2
|
[1] |
BUSHING
|
IH
ROLLER, trip arm
|
| . . |
18377R1
|
[1] |
|
P
RIVET, 1/2 x 7/8 wagon-box-hd solid
|
| 18. |
671614R1
|
[1] |
BUSHING
|
IH
trip arm roller
|
| 19. |
663547R1
|
[1] |
AXLE PIN
|
IH
PIN, trip arm pivot
|
| . . |
657196R1
|
[1] |
PIN
|
IH
1/4 x 2 slt-spring Superseded by part number: 86624088
|
| . . |
187988
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
| . . |
178375R1
|
[3] |
WASHER
|
IH
25/32 x 1-1/4 x 16 ga C-Z, (or as required) Superseded by part number: 249100
|
| . . |
674414R91
|
[1] |
|
P
PRODUCT GRAPHIC, set
|
| . . |
2754032R1
|
[1] |
PRODUCT GRAPHIC
|
IH
model Nos., included in product graphic set 674414R91 Superseded by part number: 71812C1
|
| . . |
2751130R1
|
[1] |
PRODUCT GRAPHIC
|
IH
International, on sheet above pickup Superseded by part number: 2752300R1
|
| . . |
2751271R1
|
[1] |
PRODUCT GRAPHIC
|
IH
International, on twine container back sheet
|
| . . |
2750502R1
|
[1] |
PRODUCT GRAPHIC
|
IH
IH, bale chamber sides rear Superseded by part number: 77582C91
|
