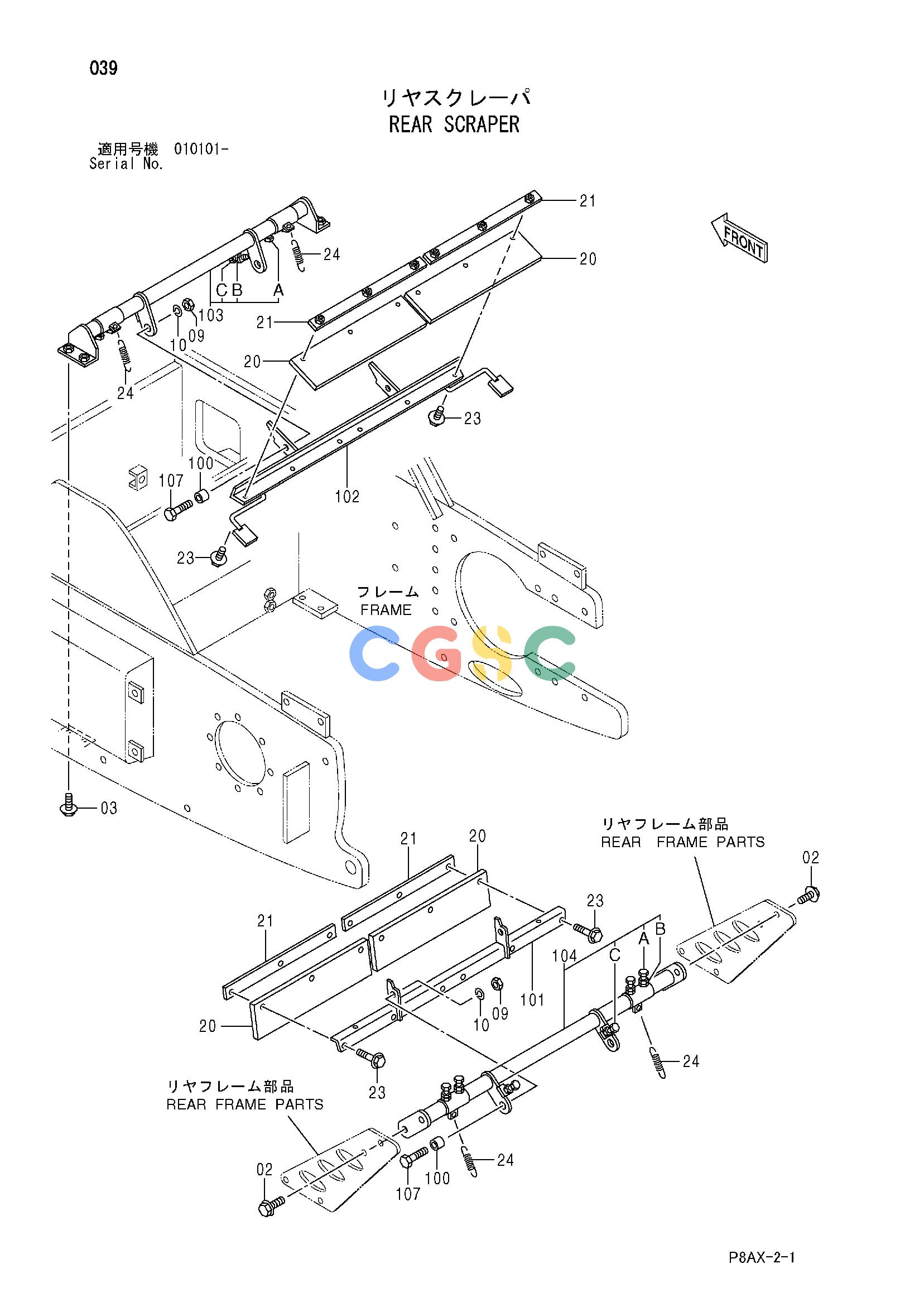

日立零件查询（CS125）REAR SCRAPER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
582 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 500037 | [4] | BOLT;SEMS | |
| 03. | 500194 | [4] | BOLT;SEMS | |
| 09. | 947864 | [4] | NUT | |
| 10. | 947888 | [4] | WASHER;SPRING | |
| 20. | 425131 | [4] | BLADE | |
| 21. | 425393 | [4] | SEAT;SCREW | |
| 23. | 500031 | [12] | BOLT;SEMS | |
| 24. | 425130 | [4] | SPRING;TENSION | |
| 100. | 425269 | [4] | SPACER | |
| 101. | 425338 | [1] | BRACKET | |
| 102. | 425341 | [1] | BRACKET | |
| 103. | 425339 | [1] | BRACKET | |
| 103A. | 500091 | [4] | BOLT | |
| 103B. | 947863 | [6] | NUT | |
| 103C. | 425074 | [2] | BOLT | |
| 104. | 425340 | [1] | BRACKET | |
| 104A. | 947633 | [4] | BOLT | |
| 104B. | 947863 | [6] | NUT | |
| 104C. | 425074 | [2] | BOLT | |
| 107. | 947645 | [4] | BOLT | |
