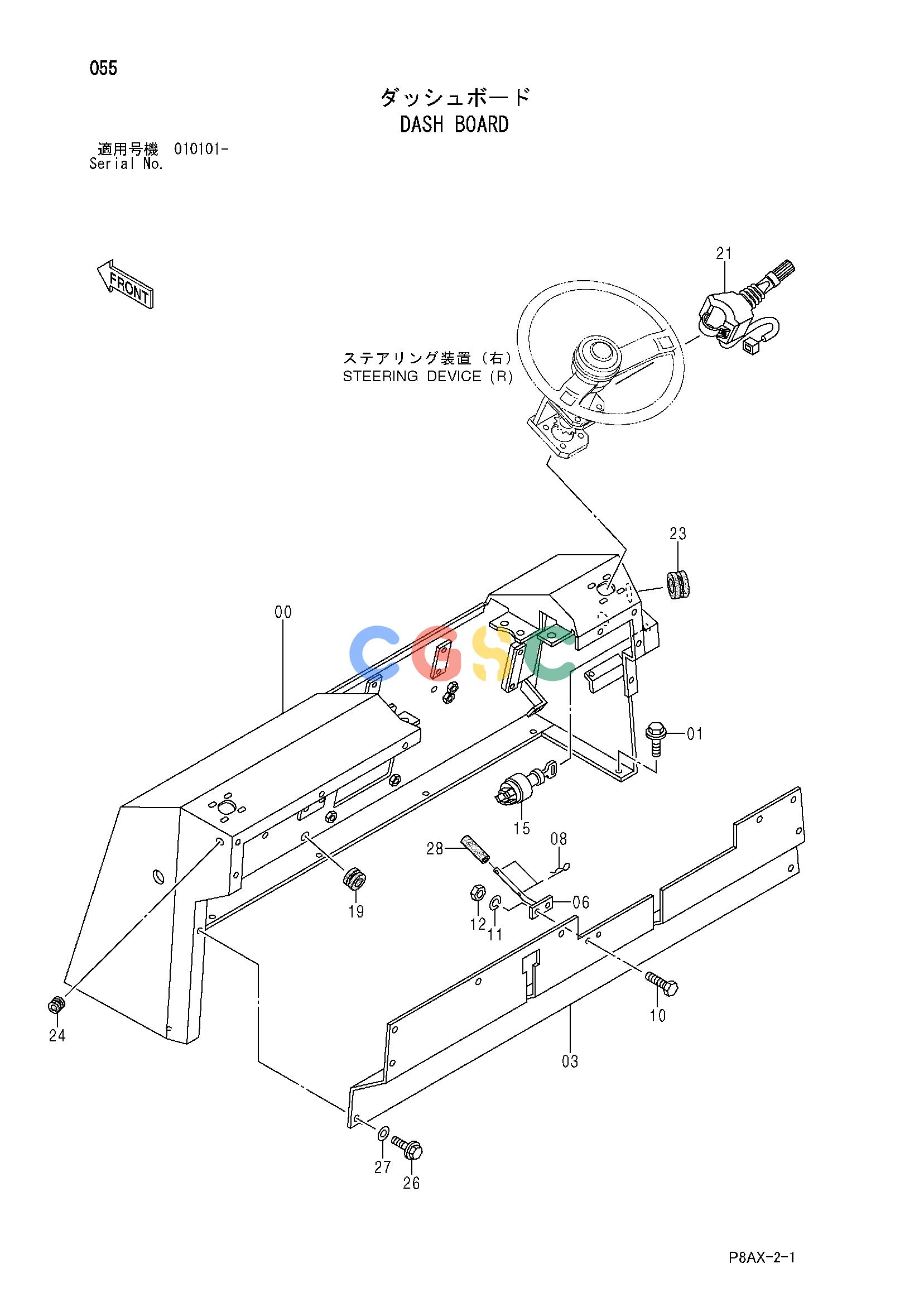

日立零件查询（CS125）DASH BOARD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
899 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425306 | [1] | DASHBOARD | |
| 01. | 500028 | [7] | BOLT;SEMS | |
| 03. | 425094 | [1] | COVER | |
| 06. | 425401 | [1] | GUIDE | |
| 08. | 424918 | [2] | PIN;LOCK | |
| 10. | 947609 | [2] | BOLT | |
| 11. | 947886 | [2] | WASHER;SPRING | |
| 12. | 947853 | [2] | NUT | |
| 15. | +++++++ | [1] | SWITCH;START | |
| 19. | 424938 | [1] | BUSHING;RUBBER | |
| 21. | 425224 | [1] | SWITCH | |
| 23. | 424987 | [1] | BUSHING;RUBBER | |
| 24. | 424930 | [1] | BUSHING;RUBBER | |
| 26. | 947621 | [9] | BOLT;SEMS | |
| 27. | 947324 | [9] | WASHER;PLANE | |
| 28. | 425254 | [1] | HOSE;RUBBER | |
