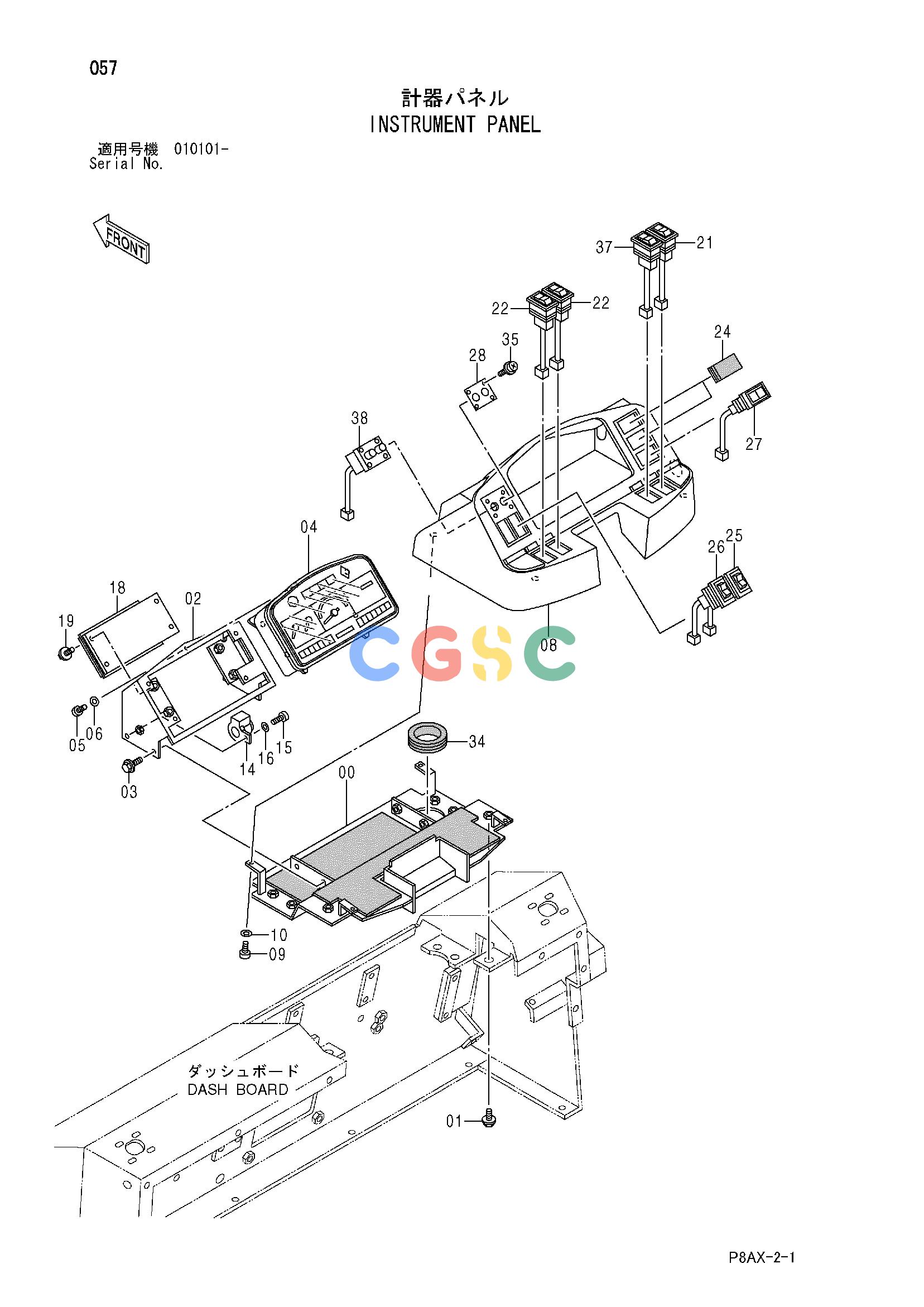

日立零件查询（CS125）INSTRUMENT PANEL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
328 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425333 | [1] | BRACKET | |
| 01. | 500048 | [6] | BOLT;SEMS | |
| 02. | 425332 | [1] | BRACKET | |
| 03. | 947621 | [4] | BOLT;SEMS | |
| 04. | 425149 | [1] | PANEL;GAUGE | |
| 05. | 425077 | [5] | SCREW | |
| 06. | 947322 | [5] | WASHER;PLANE | |
| 08. | 425392 | [1] | COVER | |
| 09. | 424222 | [4] | SCREW | |
| 10. | 947322 | [4] | WASHER;PLANE | |
| 14. | 425015 | [1] | BUZZER | |
| 15. | 439857 | [1] | SCREW | |
| 16. | 438155 | [1] | WASHER;PLANE | |
| 18. | 425150 | [1] | CONTROLLER | |
| 19. | 747621 | [4] | BOLT;SEMS | |
| 21. | 425003 | [1] | SWITCH;TUMBLER | |
| 22. | 424707 | [2] | SWITCH;TUMBLER | |
| 24. | 425009 | [2] | BUSHING;RUBBER | |
| 25. | 425237 | [1] | SWITCH;TUMBLER | |
| 26. | 425242 | [1] | SWITCH;TUMBLER | |
| 27. | 425243 | [1] | SWITCH;TUMBLER | |
| 28. | 425096 | [1] | NAME-PLATE | |
| 34. | 424964 | [1] | BUSHING;RUBBER | |
| 35. | 425069 | [4] | SCREW;SEMS | |
| 37. | 425235 | [1] | SWITCH | |
| 38. | 425227 | [1] | TIMER | |
