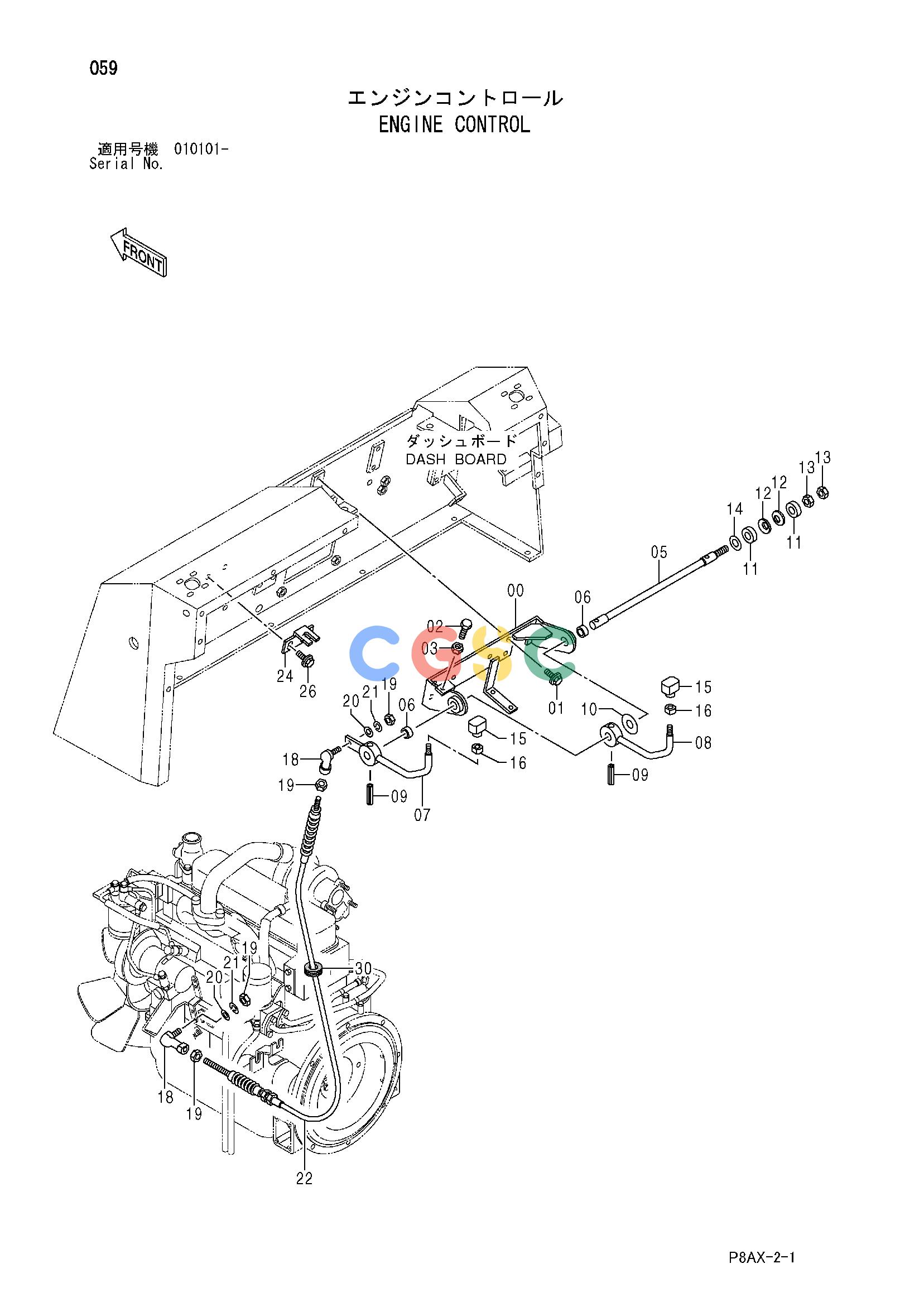

日立零件查询（CS125）ENGINE CONTROL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
799 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425374 | [1] | BRACKET | |
| 01. | 500048 | [4] | BOLT;SEMS | |
| 02. | 947633 | [1] | BOLT | |
| 03. | 947863 | [1] | NUT | |
| 05. | 425166 | [1] | SHAFT | |
| 06. | 425216 | [2] | BUSHING | |
| 07. | 425371 | [1] | LEVER | |
| 08. | 425372 | [1] | LEVER | |
| 09. | 629043 | [2] | PIN;SPRING | |
| 10. | 425218 | [1] | DISC;FRICTION | |
| 11. | 821128 | [2] | WASHER | |
| 12. | 425217 | [2] | SPRING;DISK | |
| 13. | 947857 | [2] | NUT | |
| 14. | 425233 | [1] | DISC;FRICTION | |
| 15. | 424737 | [2] | GRIP | |
| 16. | 425113 | [2] | NUT | |
| 18. | 424923 | [2] | JOINT;BALL | |
| 19. | 947852 | [4] | NUT | |
| 20. | 947321 | [2] | WASHER;PLANE | |
| 21. | 947885 | [2] | WASHER;SPRING | |
| 22. | 425109 | [1] | CABLE;CONTROL | |
| 24. | 425248 | [1] | BRACKET | |
| 26. | 947621 | [2] | BOLT;SEMS | |
| 30. | 424986 | [1] | BUSHING;RUBBER | |
