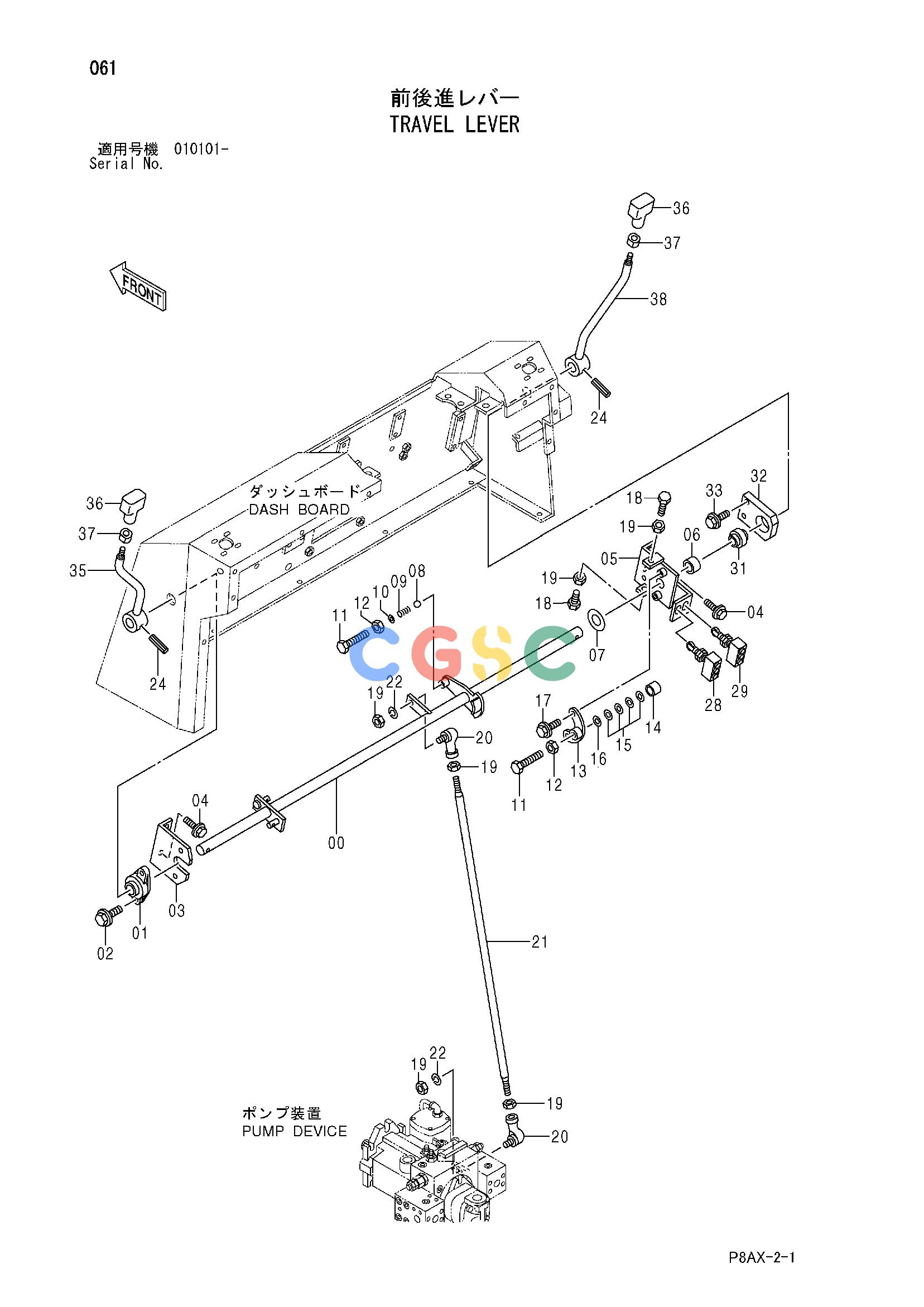

日立零件查询（CS125）TRAVEL LEVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
256 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425330 | [1] | SHAFT | |
| 01. | 425211 | [1] | BRG.;UNIT | |
| 02. | 500194 | [2] | BOLT;SEMS | |
| 03. | 425373 | [1] | BRACKET | |
| 04. | 500028 | [4] | BOLT;SEMS | |
| 05. | 425368 | [1] | BRACKET | |
| 06. | 425212 | [1] | BUSHING | |
| 07. | 425205 | [1] | DISC;FRICTION | |
| 08. | 425213 | [1] | BALL;STEEL | |
| 09. | 425208 | [1] | SPRING;COMPRES. | |
| 10. | 947321 | [1] | WASHER;PLANE | |
| 11. | 947688 | [2] | BOLT | |
| 12. | 947864 | [2] | NUT | |
| 13. | 425395 | [1] | BRACKET | |
| 14. | 425204 | [1] | HOLDER | |
| 15. | 425210 | [4] | SPRING;DISK | |
| 16. | 425065 | [1] | WASHER | |
| 17. | 500048 | [2] | BOLT;SEMS | |
| 18. | 947680 | [2] | BOLT | |
| 19. | 947854 | [6] | NUT | |
| 20. | 424924 | [2] | JOINT;BALL | |
| 21. | 425214 | [1] | ROD | |
| 22. | 606020 | [2] | WASHER;SPRING | |
| 24. | 629043 | [2] | PIN;SPRING | |
| 28. | 947158 | [1] | SWITCH;MICRO | |
| 29. | 425234 | [1] | SWITCH;MICRO | |
| 31. | 425251 | [1] | BRG.;DRY | |
| 32. | 425252 | [1] | PLATE | |
| 33. | 500029 | [2] | BOLT;SEMS | |
| 35. | 425390 | [1] | LEVER | |
| 36. | 424914 | [2] | GRIP | |
| 37. | 947878 | [2] | NUT | |
| 38. | 425391 | [1] | LEVER | |
