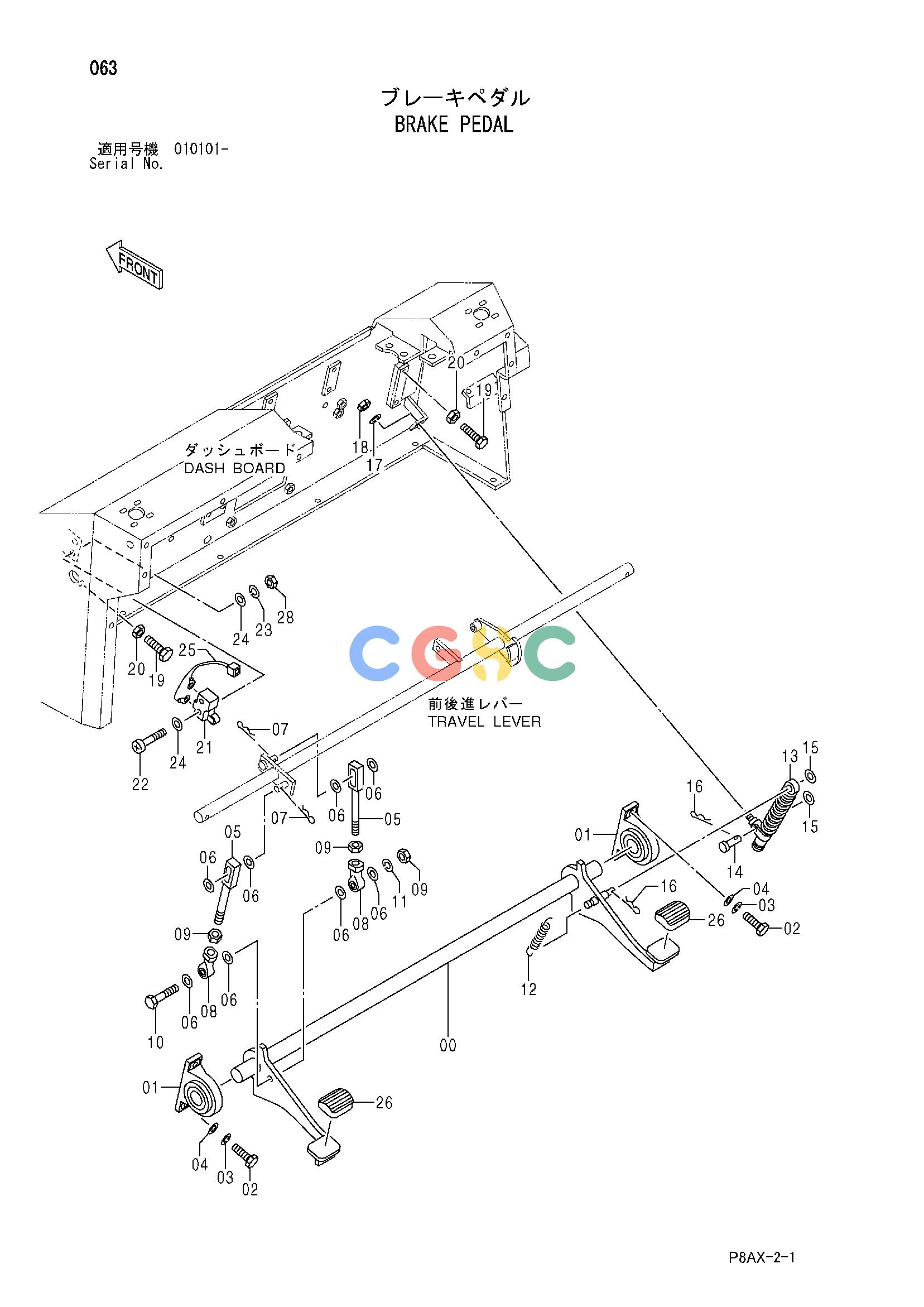

日立零件查询（CS125）BRAKE PEDAL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
410 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425311 | [1] | PEDAL | |
| 01. | 424927 | [2] | BRG.;UNIT | |
| 02. | 439058 | [4] | BOLT | |
| 03. | 947889 | [4] | WASHER;SPRING | |
| 04. | 947326 | [4] | WASHER;PLANE | |
| 05. | 425367 | [2] | ROD | |
| 06. | 947324 | [8] | WASHER;PLANE | |
| 07. | 424920 | [2] | PIN;LOCK | |
| 08. | 438337 | [2] | END;ROD | |
| 09. | 947863 | [3] | NUT | |
| 10. | 500058 | [1] | BOLT | |
| 11. | 947887 | [1] | WASHER;SPRING | |
| 12. | 424915 | [1] | SPRING;TENSION | |
| 13. | 424958 | [1] | DAMPER | |
| 14. | 424921 | [1] | PIN | |
| 15. | 947323 | [2] | WASHER;PLANE | |
| 16. | 424919 | [2] | PIN;LOCK | |
| 17. | 606020 | [1] | WASHER;SPRING | |
| 18. | 947854 | [1] | NUT | |
| 19. | 947635 | [3] | BOLT | |
| 20. | 947863 | [3] | NUT | |
| 21. | 424112 | [1] | SWITCH;LIMIT | |
| 22. | 425076 | [2] | SCREW | |
| 23. | 947884 | [2] | WASHER;SPRING | |
| 24. | 438155 | [4] | WASHER;PLANE | |
| 25. | 425006 | [1] | HARNESS;WIRE | |
| 26. | 425016 | [2] | COVER | |
| 28. | 947851 | [2] | NUT | |
