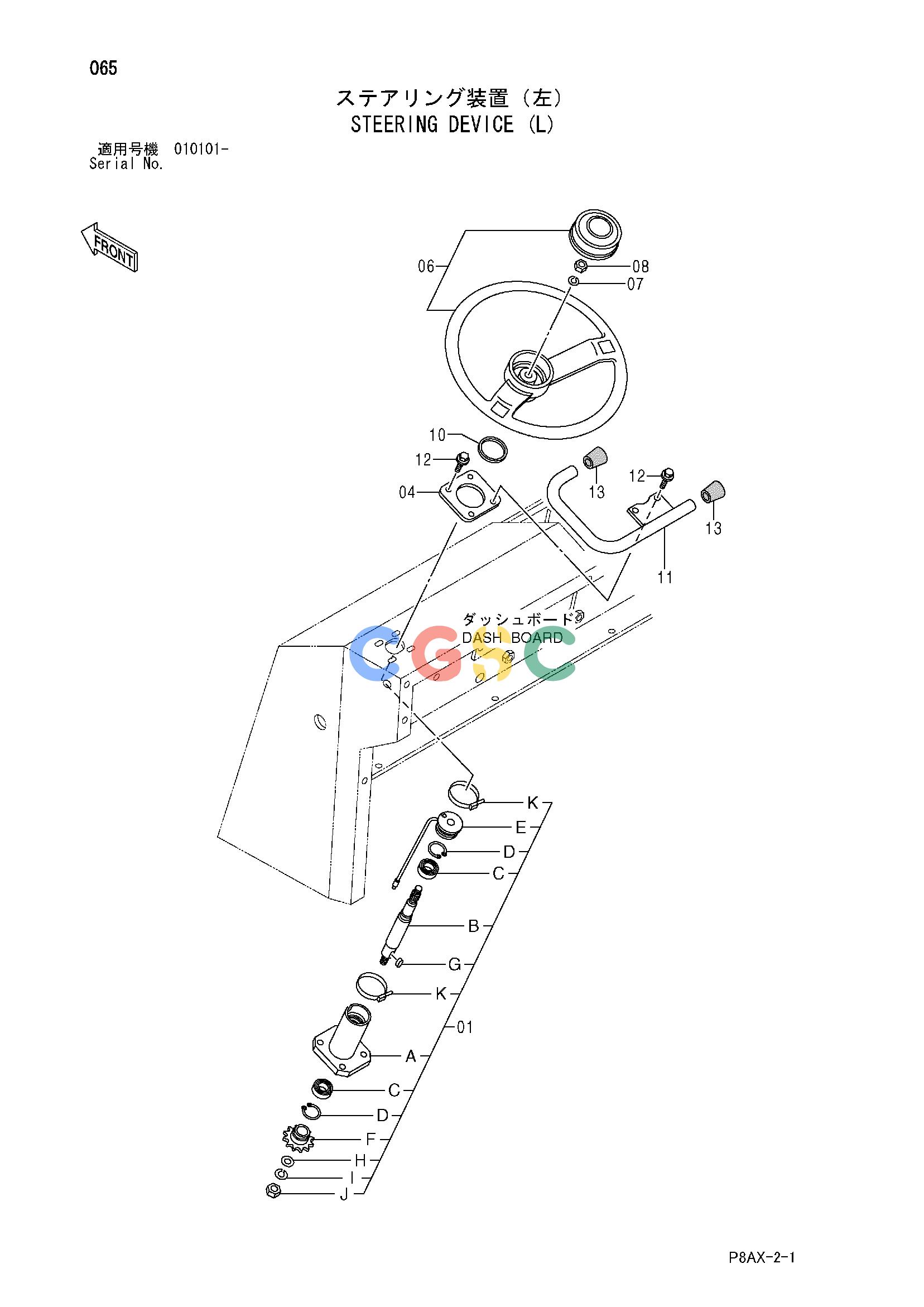

日立零件查询（CS125）STEERING DEVICE (L) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 425226 | [1] | COLUMN;STEERING | |
| 01A. | 425376 | [1] | COLUMN | |
| 01B. | 425093 | [1] | SHAFT | |
| 01C. | 424993 | [2] | BRG.;BALL | |
| 01D. | 424932 | [2] | RING;RETAINING | |
| 01E. | 424994 | [1] | BUSHING | |
| 01F. | 430939 | [1] | SPROCKET | |
| 01G. | 431197 | [1] | KEY | |
| 01H. | 947326 | [1] | WASHER;PLANE | |
| 01I. | 947889 | [1] | WASHER;SPRING | |
| 01J. | 947879 | [1] | NUT | |
| 01K. | 424646 | [2] | CLIP;BAND | |
| 04. | 425209 | [1] | COVER | |
| 06. | 439177 | [1] | WHEEL;STEERING | |
| 07. | 947888 | [1] | WASHER;SPRING | |
| 08. | 947864 | [1] | NUT | |
| 10. | 425249 | [1] | SEAL | |
| 11. | 425387 | [1] | HANDRAIL | |
| 12. | 500029 | [4] | BOLT;SEMS | |
| 13. | 425268 | [2] | RUBBER | |
