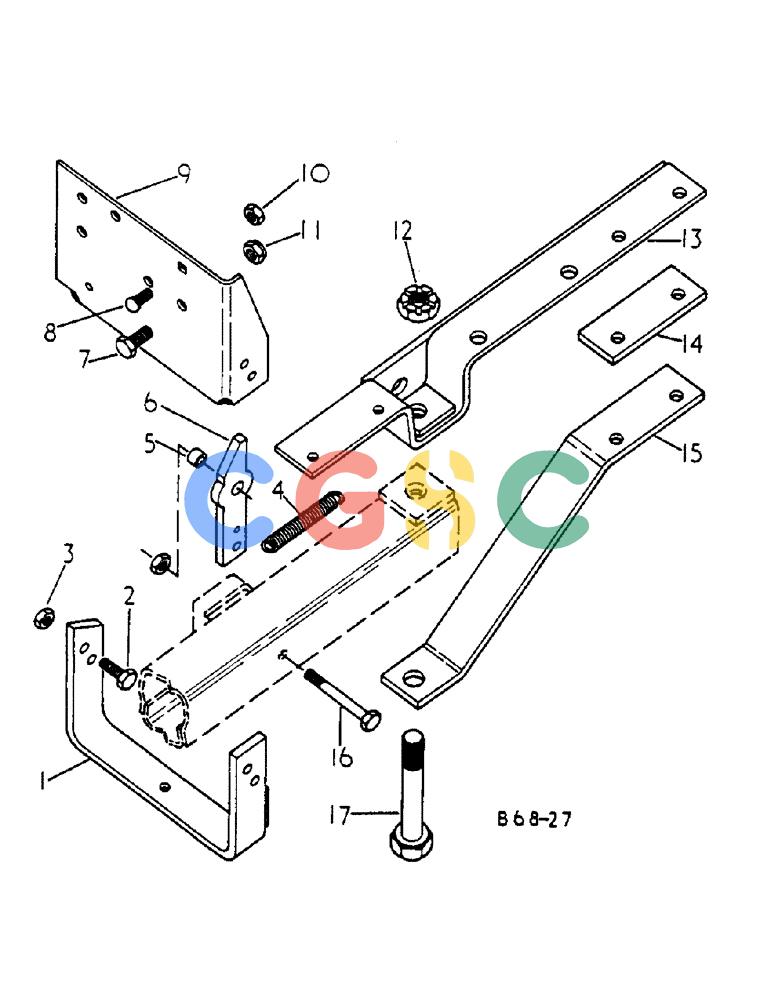

| 1. |
3103058R1
|
[1] |
BRACKET
|
IH
ASSY, hitch support
|
| 2. |
17473R1
|
[4] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2
|
IH
1/2 x 1-1/2 Superseded by part number: 87689
|
| . . |
103323
|
[4] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| 3. |
664573R1
|
[4] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2-13 hex lock Superseded by part number: 231-4218
|
| 4. |
165
|
[1] |
SPRING
|
IH
hitch lever Superseded by part number: 165-2
|
| . . |
21644R1
|
[1] |
PIN,1/4" x 1"
|
IH
Split (Cotter), 1/4" x 1" Superseded by part number: 87401
|
| . . |
18481R1
|
[1] |
COTTER PIN,3/16" x 1"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1" Superseded by part number: 432-1216
|
| 5. |
204112C1
|
[1] |
BUSHING
|
IH
PIVOT, hitch lever
|
| 6. |
204111C1
|
[1] |
LEVER
|
IH
hitch
|
| 7. |
271556
|
[5] |
WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5
|
IH
BOLT, 5/8 x 1-1/4
|
| . . |
366866C1
|
[5] |
LOCK WASHER,5/8"
|
IH
5/8" Superseded by part number: 86729275
|
| 8. |
15010R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
|
IH
BOLT, 1/2 x 1 crg
|
| 9. |
674109R2
|
[1] |
PLATE
|
IH
hitch support
|
| 11. |
202708C1
|
[5] |
NUT
|
IH
5/8 lock
|
| 12. |
3102164R1
|
[1] |
NUT
|
IH
1-14 UNF slt jam
|
| 13. |
674110R1
|
[1] |
PIVOT
|
IH
ASSY, hitch
|
| . . |
179860
|
[2] |
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5
|
IH
7/16 x 1-1/4 pln type 5 Superseded by part number: 9627887
|
| . . |
664646R1
|
[2] |
LOCK NUT,7/16"-14, GB
|
IH
NUT, 7/16-14 hex. lock Superseded by part number: 280980
|
| . . |
103322
|
[2] |
LOCK WASHER,7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 14. |
3103061R1
|
[1] |
SPACER
|
IH
hitch pivot assy
|
| 15. |
667628R1
|
[1] |
ANGLE
|
IH
STRAP, hitch pivot assy
|
| . . |
2718564
|
[2] |
BOLT, 5/8 x 2-1/2 pln type 5
|
|
| . . |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
102639
|
[2] |
NUT,5/8"-11, G5
|
IH
Superseded by part number: 280374
|
| 16. |
17768R1
|
[1] |
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2
|
IH
1/2 x 4-1/2 mach Superseded by part number: 190256
|
| . . |
178373R1
|
[1] |
WASHER
|
IH
.531 x 1.000 x .056 Superseded by part number: 495-51053
|
| 17. |
3103060R1
|
[1] |
BOLT,Hex, 1" - 14 x 7"
|
IH
1-14 x 7 hitch anchor
|
| . . |
21213R1
|
[1] |
WASHER
|
IH
1.031 x 2.000 x .105 Superseded by part number: 495-81077
|
| . . |
125637
|
[1] |
COTTER PIN,1/8" x 2"
|
IH
PIN, SPLIT (COTTER), 1/8" x 2" Superseded by part number: 86523955
|
