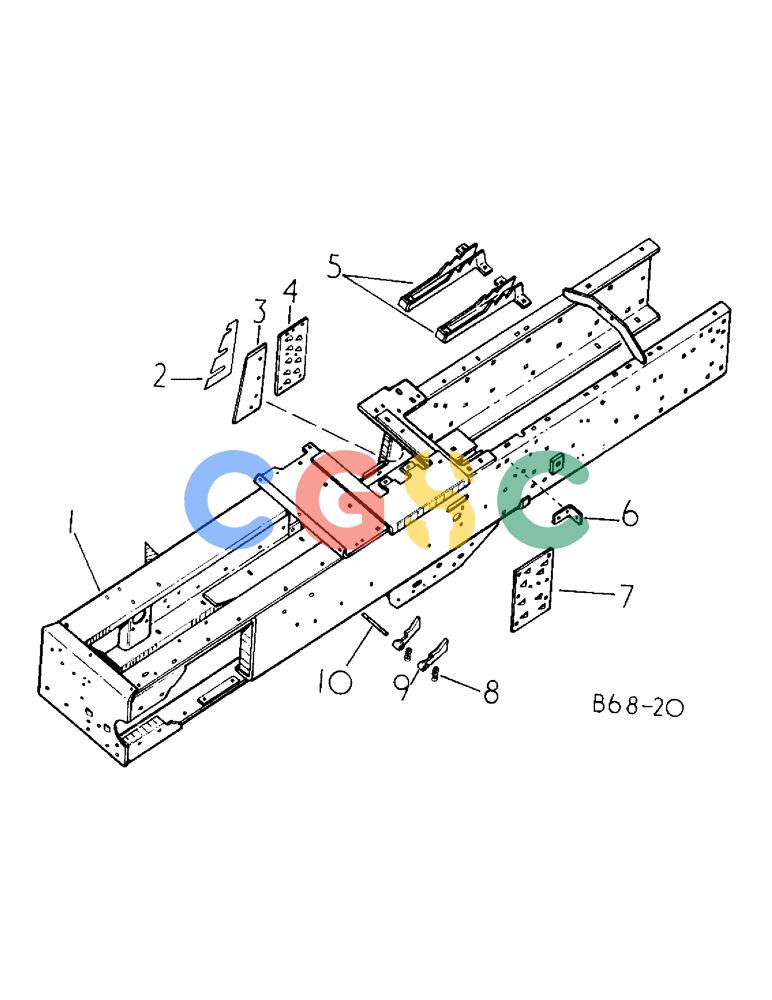

| 1. |
3102958R1
|
[1] |
CHAMBER
|
IH
ASSY, bale
|
| 2. |
203016C1
|
[2] |
SHIM
|
IH
stationary knife, (or as required)
|
| 2. |
203017C1
|
[1] |
SHIM
|
IH
stationary knife
|
| 3. |
203021C1
|
[1] |
KNIFE
|
IH
hay
|
| . . |
15588R1
|
[3] |
PLOW BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2
|
IH
BOLT, PLOW, 5/8"-11 x 1 1/2", G2, Full Thd
|
| . . |
102839
|
[3] |
EXTENSION
|
NH
NUT, 5/8 pln type 5
|
| . . |
103325
|
[3] |
LOCK WASHER,5/8"
|
IH
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 4. |
754922R2
|
[1] |
PLATE
|
IH
hay retainer RH, replaces 662294R3
|
| . . |
18508R1
|
[4] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 crg type 1 Superseded by part number: 86508748
|
| . . |
103321
|
[4] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
102635
|
[4] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| 5. |
3102133R1
|
[2] |
NO LONGER SERVICED
|
IH
BLADE ASSY, lower groover Superseded by part number: 3102133R2
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 crg type 1 Superseded by part number: 88682
|
| . . |
19019R1
|
[4] |
CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 plow type 1 Superseded by part number: 419-3616
|
| 6. |
3102964R1
|
[1] |
SUPPORT
|
IH
spring trip arm
|
| 7. |
754921R3
|
[1] |
PLATE
|
IH
hay retainer LH
|
| . . |
Q1597
|
[9] |
WASHER
|
IH
.406 x .734 x .056 pln Superseded by part number: 86632580
|
| 8. |
668869R1
|
[2] |
SPRING
|
IH
hay retainer
|
| 9. |
662007R2
|
[2] |
RETAINER
|
IH
hay
|
| 10. |
667685R1
|
[1] |
PIN
|
IH
hay retainer
|
| . . |
187988
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
