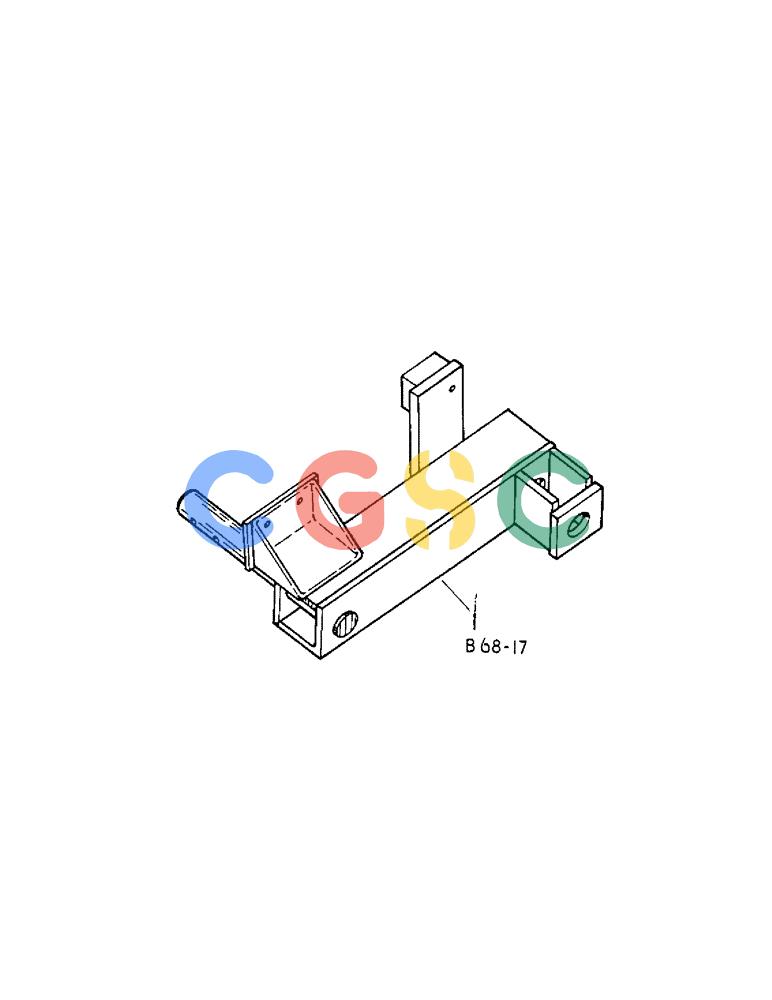

凯斯零件查询(425) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/76-12/85) (A-09[A]) - WHEEL RELOCATOR LH ATTACHMENT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
494 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3103413R1
|
[1] |
AXLE
|
IH
ASSY
|
| . . |
179892
|
[2] |
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
|
IH
1/2 x 2-3/4 pln type 5 Superseded by part number: 87974
|
| . . |
102637
|
[4] |
NUT,1/2"-13, G5
|
IH
Superseded by part number: 280431
|
| . . |
103323
|
[4] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| . . |
179849
|
[1] |
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
|
IH
Superseded by part number: 87936
|
| . . |
102635
|
[1] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[1] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
179883
|
[2] |
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
|
IH
Superseded by part number: 180175
|
