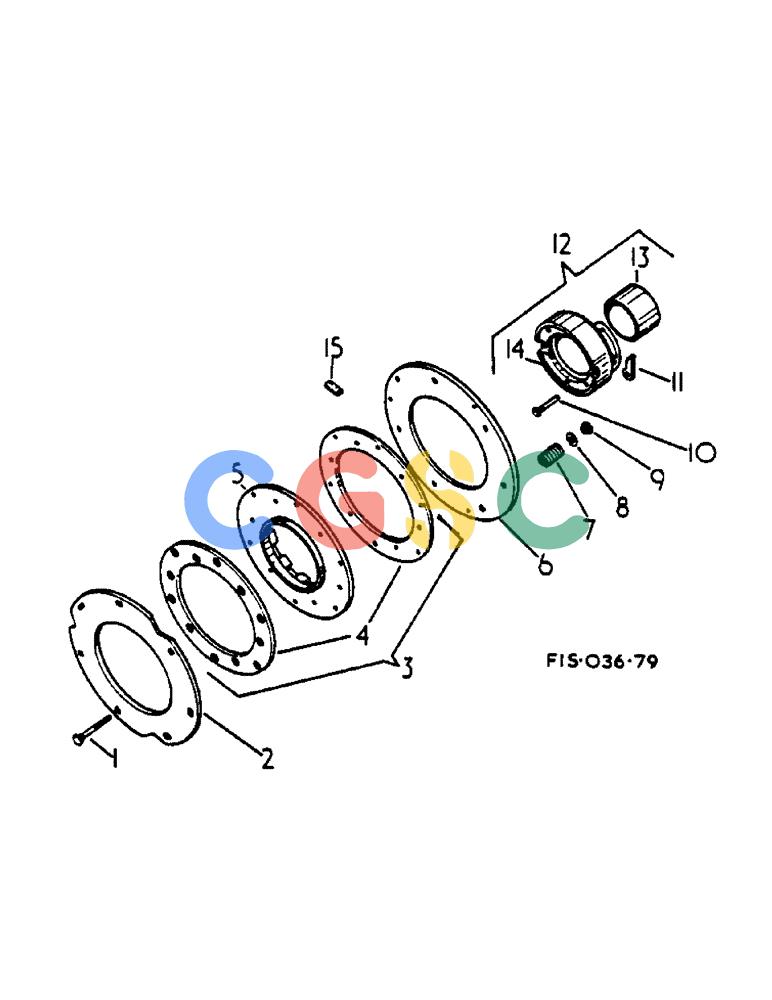

凯斯零件查询(425) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/76-12/85) (A-10) - POWER TAKE-OFF DRIVE SHAFT CLUTCH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
202568C1
|
[7] |
SCREW
|
IH
NUT AND BOLT ASSY
|
| 2. |
3100036R1
|
[1] |
PLATE
|
IH
clutch pressure
|
| 3. |
3100038R91
|
[1] |
CLUTCH DISC
|
IH
DISC ASSY, clutch Superseded by part number: 3100042R21, 3100040R11
|
| 4. |
3100042R11
|
[1] |
FACING
|
IH
W/RIVETS, clutch Superseded by part number: 3100042R21
|
| . . |
113342
|
[12] |
RIVET,Tr Hd, 3/16" x 3/8", Brass
|
IH
Superseded by part number: 113356
|
| 6. |
3100043R1
|
[1] |
PLATE
|
IH
clutch back
|
| . . |
3102540R1
|
[3] |
SCREW
|
IH
clutch
|
| . . |
103321
|
[3] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 7. |
M1015
|
[7] |
SPRING
|
IH
clutch
|
| 8. |
Q511
|
[7] |
WASHER
|
IH
9/16 x 1-1/4 x 7 ga Superseded by part number: 106265
|
| 10. |
662558R1
|
[2] |
PIN
|
IH
.406 x 1-7/8 rod end
|
| 11. |
3101008R1
|
[2] |
PAWL
|
IH
over running clutch
|
| 12. |
3100973R11
|
[1] |
CARRIER
|
IH
W/BUSHING, over running
|
| 13. |
662078R1
|
[1] |
BUSHING
|
IH
over running clutch
|
| 15. |
202859C1
|
[1] |
SPACER
|
IH
ASSY, clutch
|
