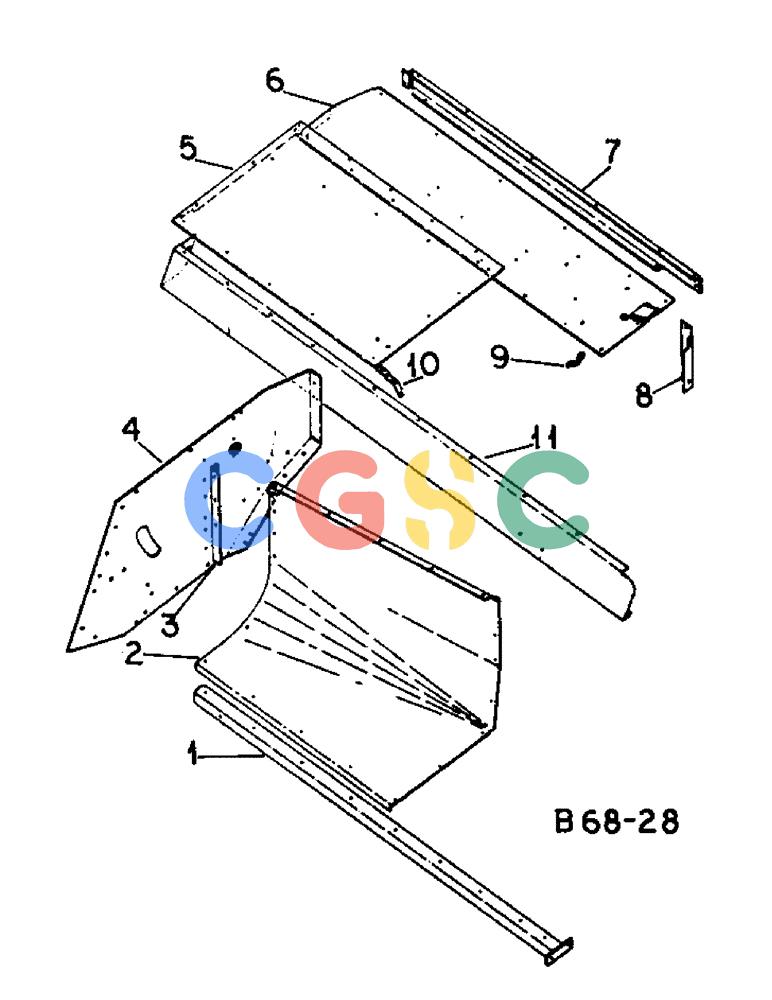

| 1. |
3101810R1
|
[1] |
CHANNEL
|
IH
ASSY, cross conveyor support
|
| . . |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
|
| . . |
102635
|
[1] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[1] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
662357R1
|
[1] |
PLATFORM
|
IH
cross conveyor
|
| . . |
16897R1
|
[5] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 crg type 1 Superseded by part number: 412-512
|
| . . |
9635082
|
[5] |
NUT,5/16" - 18, Gr 5
|
NH
5/16 pln hex
|
| . . |
103320
|
[5] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| . . |
160536
|
[5] |
SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"
|
IH
Superseded by part number: 86511931
|
| . . |
109084
|
[10] |
NUT,1/4"-20, G5
|
IH
Superseded by part number: 7770
|
| . . |
103319
|
[10] |
LOCK WASHER,1/4"
|
IH
WASHER, LOCK, 1/4" Superseded by part number: 92-11025
|
| . . |
95-11028
|
[10] |
WASHER,1/4"
|
CAS
.281 x .625 x .051 pln
|
| . . |
120697
|
[5] |
SCREW, 1/4 x 3/4 znp f/hds mach
|
|
| 3. |
3101817R1
|
[1] |
BRACE
|
IH
cross conveyor platform
|
| . . |
18508R1
|
[3] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 crg type 1 Superseded by part number: 86508748
|
| 4. |
3102940R1
|
[1] |
SHEET
|
IH
ASSY, cross conveyor side
|
| 5. |
3101818R1
|
[1] |
COVER
|
IH
cross conveyor
|
| . . |
18673R1
|
[3] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
|
IH
BOLT, 5/16 x 1/2 crg type 1 Superseded by part number: 411-58
|
| 6. |
3102943R91
|
[1] |
COVER
|
IH
TOP W/GUIDES, twine can
|
| . . |
672803R1
|
[7] |
NUT
|
IH
1/4-20 speed grip
|
| . . |
21549R1
|
[2] |
WASHER
|
IH
.281 x .750 x .042 Superseded by part number: 495-81106
|
| 7. |
3102950R1
|
[1] |
PANEL
|
IH
rear cross sheet
|
| 8. |
3102948R1
|
[1] |
SHEET
|
IH
rear filler
|
| . . |
179793
|
[1] |
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
|
IH
Superseded by part number: 280641
|
| . . |
704445R1
|
[1] |
NUT
|
IH
1/4-20 spire speed Superseded by part number: 86521425
|
| . . |
21784R1
|
[1] |
WASHER
|
IH
.266 x .500 x .054 Superseded by part number: 86624137
|
| 9. |
655108R2
|
[3] |
GUIDE
|
IH
twine
|
| . . |
106883
|
[1] |
RIVET,Truss Hd, 3/16" x 3/8"
|
IH
Superseded by part number: 87467
|
| 10. |
667742R1
|
[1] |
STRAP
|
IH
feed opening tie
|
| . . |
17351R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 crg type 1 Superseded by part number: 88682
|
| 11. |
3103030R1
|
[1] |
SHEET
|
IH
ASSY, cross conveyor front
|
| . . |
19570R1
|
[6] |
BOLT,Hex, 1/4" - 20 x 5/8", Gr 2
|
IH
1/4 x 5/8 type 1 Superseded by part number: 280641
|
| . . |
102392
|
[7] |
WASHER
|
IH
SCREW, 5/16 x 1 O/PT pln hdl/s set Superseded by part number: 138675
|
