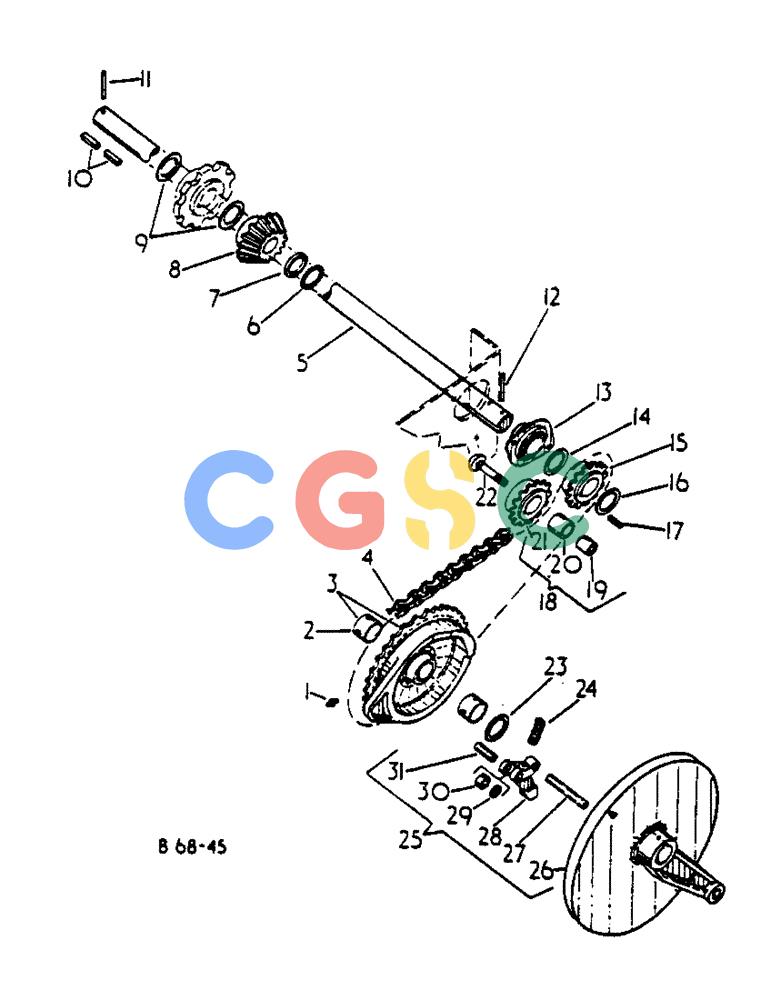

| 1. |
109461
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 2. |
3102899R91
|
[2] |
BEARING, sprocket knotter
|
|
| 3. |
3102897R91
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET ASSY, knotter shaft
|
| 5. |
3102896R1
|
[1] |
SHAFT
|
IH
rear knotter drive
|
| 6. |
23041R1
|
[3] |
WASHER
|
IH
1/5-32 x 1-1/2 x .054, (or as required) Superseded by part number: Q162
|
| 7. |
3102895R1
|
[1] |
SPACER
|
IH
gear pinion
|
| 8. |
3102894R1
|
[1] |
GEAR
|
IH
pinion knotter drive
|
| 9. |
Q162
|
[4] |
WASHER
|
IH
1.156 x 1.750 x 0.054, (or as required) Superseded by part number: 495-81188
|
| 10. |
Q1482
|
[1] |
KEY,5/16" Sq x 1", Par
|
IH
5/16 x 1
|
| 11. |
576482R1
|
[1] |
LOCK PIN,5/16" x 2", Slotted
|
IH
Superseded by part number: 87040910
|
| 13. |
3103088R91
|
[1] |
BEARING ASSY,28.575 mm ID x 44.45 mm OD x 35.7 mm
|
IH
ASSY, knotter drive shaft, consists of Superseded by part number: 3102889R91
|
| . . |
3102886R1
|
[1] |
BEARING
|
IH
Superseded by part number: 3102886R91
|
| . . |
3102887R1
|
[1] |
COLLAR
|
IH
|
| . . |
3102888R1
|
[2] |
NO LONGER SERVICED
|
IH
FLANGE Superseded by part number: 3102891R1
|
| 13. |
3102889R91
|
[1] |
BEARING ASSY,28.588 mm ID x 40 mm OD
|
IH
ASSY, knotter drive shaft, consists of
|
| . . |
3103085R1
|
[1] |
JOURNAL
|
IH
BEARING ASSY Superseded by part number: 3102891R1, 3102887R1, 3102886R1
|
| . . |
3102891R1
|
[1] |
FLANGE
|
IH
|
| 13. |
3103086R91
|
[1] |
JOURNAL
|
IH
BEARING ASSY, knotter drive shaft Superseded by part number: 3102891R1, 3102890R1
|
| . . |
3102890R1
|
[1] |
BEARING
|
IH
Superseded by part number: 3102890R91
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 crg type 1 Superseded by part number: 88682
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 15. |
3102901R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, knotter drive
|
| 18. |
3103010R91
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET ASSY, tensioner
|
| 19. |
3103013R2
|
[1] |
SPACER
|
IH
sprocket
|
| 20. |
3103012R1
|
[1] |
PRESS
|
IH
BUSHING, sprocket tensioner
|
| 22. |
466971R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
|
IH
BOLT, 1/2 x 2 sq nk crg Superseded by part number: 280185
|
| . . |
120396
|
[1] |
WASHER
|
IH
.531 x 1.062 x .074 Superseded by part number: 495-11053, 495-11053, NLS
|
| . . |
120384
|
[1] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 23. |
3102900R1
|
[2] |
THRUST WASHER
|
IH
thrust
|
| 24. |
753027R1
|
[1] |
SPRING
|
IH
trip dog
|
| 25. |
3102903R1
|
[1] |
CARRIER ASSY, trip dog
|
|
| . . |
125735
|
[1] |
SET SCREW,Hex Skt, 1/4"-20 x 3/8"
|
IH
Cup point Hex Soc, 1/4"-20 x 3/8" Superseded by part number: 483-1256
|
| 27. |
3102907R2
|
[1] |
PIVOT
|
IH
trip dog
|
| 28. |
3102905R91
|
[1] |
PAWL
|
IH
W/ROLLER AND STUD, trip
|
| 29. |
21755R1
|
[1] |
WASHER
|
IH
15/32 x 3/16 x 18 ga C-Z, (or as required)
|
| 29. |
21756R1
|
[1] |
WASHER
|
IH
15/32 x 22 ga C-Z, (or as required) Superseded by part number: 86624145
|
| 30. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 31. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
