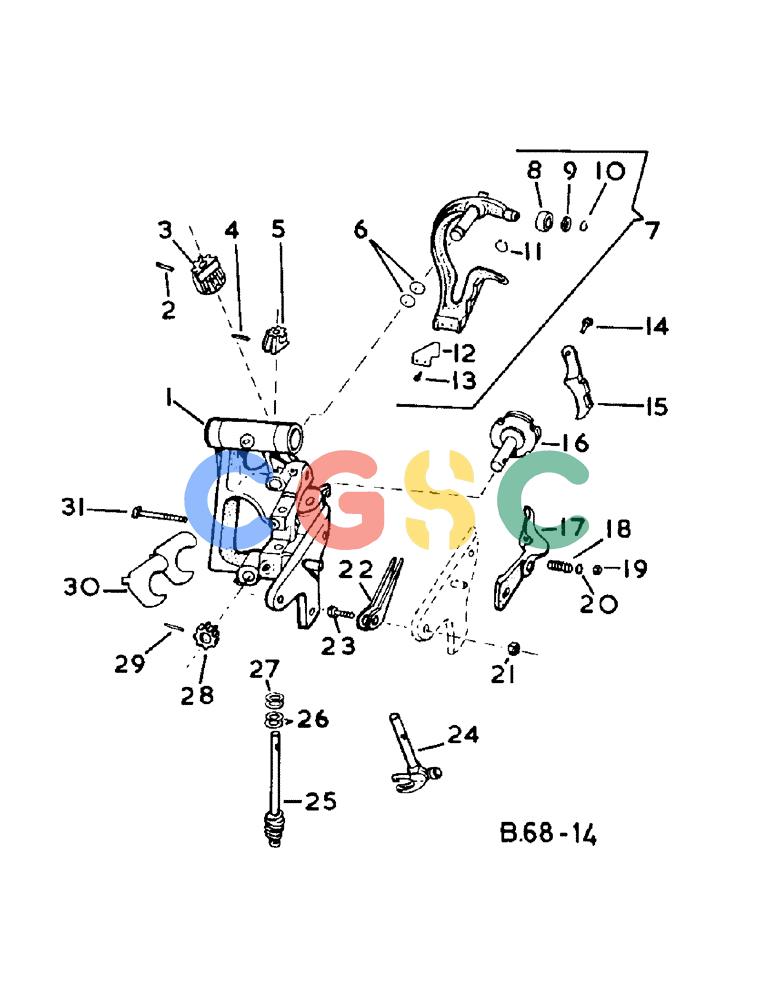

凯斯零件查询(425) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/76-12/85) (A-31) - KNOTTER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
785 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
3102817R91
|
[1] |
KNOTTER
|
IH
ASSY
|
| 1. |
3103528R1
|
[1] |
FRAME
|
IH
knotter
|
| 2. |
732741R1
|
[1] |
PIN, ROLL
|
IH
ed spring Superseded by part number: 838-3520
|
| 3. |
3103549R1
|
[1] |
GEAR
|
IH
pinion
|
| 5. |
3103541R1
|
[1] |
GEAR
|
IH
pinion Superseded by part number: 700710904
|
| 6. |
3103534R1
|
[2] |
SPACER
|
IH
disc
|
| 7. |
3103529R1
|
[1] |
ARM
|
IH
ASSY, knife
|
| 8. |
3103532R1
|
[1] |
RING
|
IH
ROLLER, steel Superseded by part number: 700707887
|
| 9. |
934512R1
|
[2] |
SHIM,M15 ID x 21 OD x 1 Thk
|
IH
SPACER, disc Superseded by part number: 84007145
|
| 10. |
3103533R1
|
[1] |
RETAINER
|
IH
RING, retaining Superseded by part number: 9838808
|
| 11. |
3103535R1
|
[1] |
RETAINER
|
IH
RING, retaining
|
| 12. |
3103530R1
|
[1] |
KNIFE
|
IH
twine
|
| 13. |
3103531R1
|
[2] |
BOLT
|
IH
hex Superseded by part number: 700707886
|
| 14. |
3103546R1
|
[1] |
BOLT
|
IH
|
| 15. |
3103545R1
|
[1] |
ADJUSTER
|
IH
BLADE, keeper Superseded by part number: 700721692
|
| 16. |
3103539R1
|
[1] |
HOLDER
|
IH
cpte, twine Superseded by part number: 700721690
|
| 17. |
3103536R1
|
[1] |
CLUTCH
|
IH
CAM, jaw Superseded by part number: 700707891
|
| 18. |
3103538R1
|
[1] |
SPRING
|
IH
Superseded by part number: 700707894
|
| 19. |
717457R1
|
[1] |
NUT,M8 x 1.25, Thin
|
IH
NUT, safety Superseded by part number: 86528579
|
| 20. |
934006R1
|
[1] |
WASHER,M8 x 16 x 1.6
|
IH
Superseded by part number: 86624185
|
| 21. |
933995R1
|
[1] |
NUT,M10 x 1.25, Cl 8
|
IH
hex
|
| 22. |
3103547R1
|
[2] |
SPRING
|
IH
Superseded by part number: 84401492
|
| 23. |
930265R1
|
[1] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 613-10025
|
| 24. |
3103548R1
|
[1] |
HOOK
|
IH
CPTE, knotter Superseded by part number: 700707906
|
| 25. |
3103542R1
|
[1] |
GEAR
|
IH
SHAFT CPTE, worm Superseded by part number: 700707900
|
| 27. |
3103543R1
|
[1] |
SPACER
|
IH
disc Superseded by part number: 7852163
|
| 28. |
3103540R1
|
[1] |
GEAR
|
IH
pinion worm Superseded by part number: 700707897
|
| 30. |
3103544R1
|
[2] |
CLEANER
|
IH
|
| 31. |
3103537R1
|
[1] |
BOLT
|
IH
|
