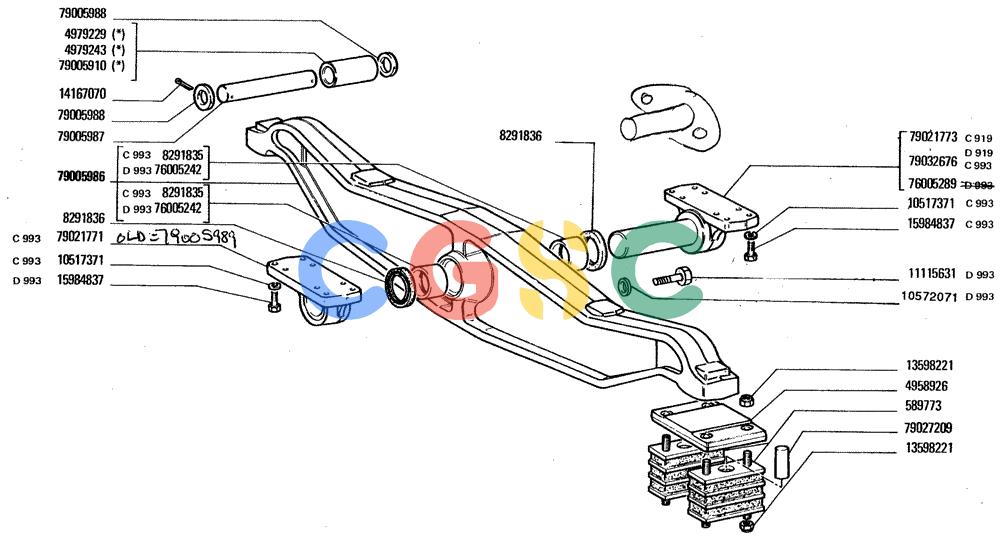

纽荷兰零件查询(FD20) - CRAWLER DOZER (D3.01[001]) - FRONT SUSPENSION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
459 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 589773. | 589773 | [4] | PAD | LEC |
| 4958879. | 4958879 | [4] | PIN | LEC |
| 4958926. | 4958926 | [4] | PLATE | LEC |
| 4979229. | 4979229 | [2] | BUSHING | MKTBUSH Superseded by part number: 4979243 |
| 4979243. | 4979243 | [2] | BUSHING | MKTBUSH Superseded by part number: 79005910 |
| 8291835. | 8291835 | [2] | BUSHING | LECBUSH |
| 8291836. | 8291836 | [2] | SEAL | LECSEAL Superseded by part number: 79065583 |
| 10517371. | 10517371 | [16] | LOCK WASHER | MODLOCKWASHER Superseded by part number: |
| 10572071. | 10572071 | [2] | LOCK WASHER,M14 | MKTLOCKWASHER Superseded by part number: 10517171 |
| 11115631. | 11115631 | [2] | BOLT,Hex, M14 x 35, 10.9, Full Thd | LEC |
| 13598221. | 13598221 | [16] | NUT,M14 x 1.5 | BAS |
| 14167070. | 14167070 | [4] | ROLL PIN | LECPIN Superseded by part number: 14601970 |
| 15984837. | 15984837 | [16] | BOLT,Hex, M18 x 1.5 x 80mm, Cl 10.9 | LECSCREW |
| 76005242. | 76005242 | [2] | BUSHING | LECBUSH Superseded by part number: 76032158 |
| 76006389. | 76006389 | [1] | KIT | HITPIN |
| 79005910. | 79005910 | [2] | BUSHING | MODBUSH |
| 79005986. | 79005986 | [1] | BEAM | LECCROSSRAIL |
| 79005987. | 79005987 | [2] | SHAFT | LEC |
| 79005988. | 79005988 | [4] | COLLAR | LECRETAINER |
| 79021771. | 79021771 | [1] | SUPPORT | LEC |
| 79021773. | 79021773 | [1] | PIN | LEC Superseded by part number: 79032676 |
| 79027209. | 79027209 | [4] | PIN | LEC |
| 79032676. | 79032676 | [1] | PIN | LEC Superseded by part number: 76005289 |
