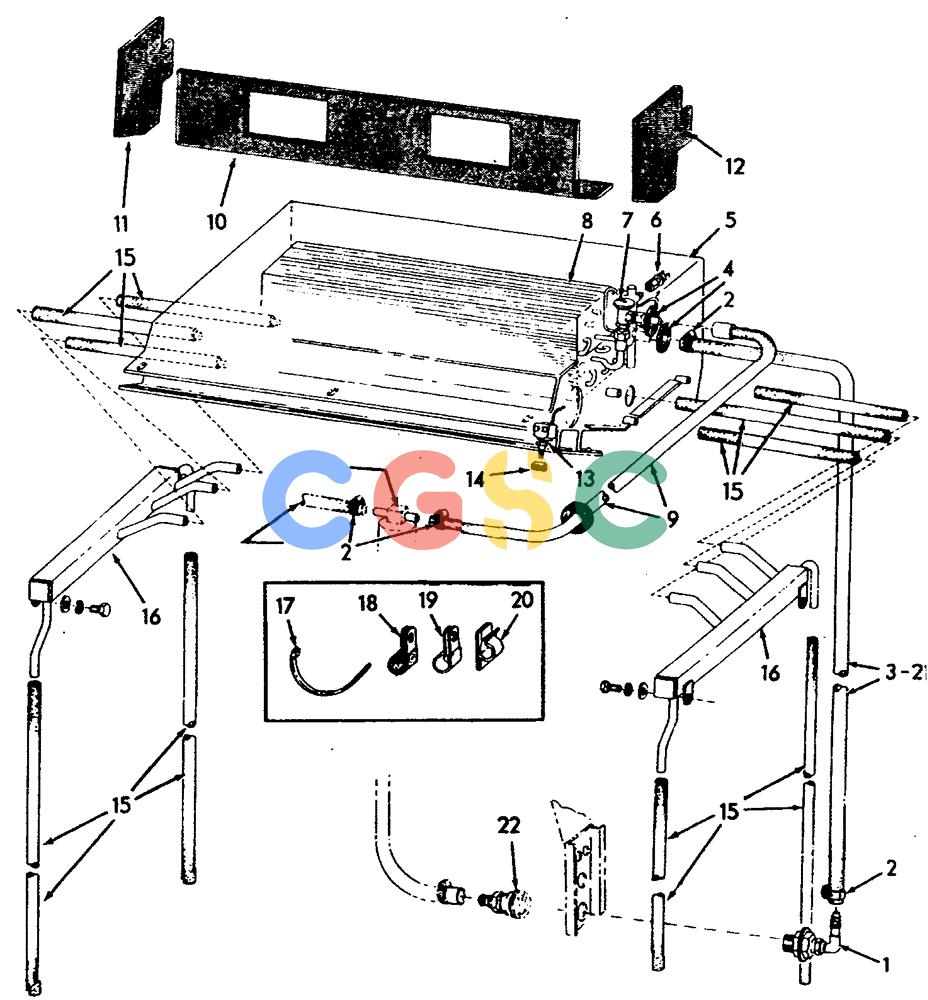

纽荷兰零件查询(FD20) - CRAWLER DOZER (E1.01[003]) - EVAPORATOR AND LINES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
260 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73108404 | [1] | HYD CONNECTOR | CMIFITTING , QUICK DISCONNECT |
| 2. | 73107640 | [2] | CLAMP | CMI |
| 4. | 73107282 | [3] | GROMMET | CMI |
| 6. | 73107631 | [1] | CROSSRAIL | CMICONTROL , LOW PRESSURE |
| 7. | 73107633 | [1] | HYDRAULIC VALVE | CMIVALVE , THERMAL EXPANSION |
| 8. | 73114695 | [1] | EVAPORATOR | CMICOIL ASSY., EVAPORATOR |
| 9. | 73114667 | [1] | FLEXIBLE HOSE | CMIHOSE , 5/16''I.D. x 96'' |
| 10. | 73114694 | [1] | INSULATOR | CMIINSULATION,BOTTOM |
| 11. | 73114691 | [1] | INSULATOR | CMIINSULATION,LEFT |
| 12. | 73114692 | [1] | INSULATOR | CMIINSULATION,RIGHT |
| 13. | 73107635 | [1] | SWITCH | CMICOLD CONTROL |
| 14. | 73107623 | [1] | KNOB | CMI |
| 15. | 73114670 | [1] | HOSE | CMI1/2'' I.D.x 40 FT. (USE AS REQUIRED) (CUT TO PROPER LENGTH) |
| 16. | 73124255 | [1] | SPARE PART | CMITUBE , CONDENSATE , LEFT |
| 16. | 73124256 | [1] | SPARE PART | CMITUBE , CONDENSATE , RIGHT |
| 16. | 70922300 | [4] | SCREW | BHBCAPSCREW , 3/8''NC x 3/4'' Superseded by part number: 86500692 |
| 16. | 70919383 | [4] | WASHER | MKT Superseded by part number: 70911992 |
| 16. | 70919312 | [4] | WASHER | CMILOCKWASHER , 3/8'' Superseded by part number: 80680 |
| 17. | 70930871 | [1] | COLLAR | CMITIE |
| 18. | 70929665 | [24] | COLLAR | CMICLIP |
| 19. | 73114666 | [1] | CLIP | CMIUSE AS REQUIRED |
| 20. | 73114671 | [8] | CLIP | CMI |
| 21. | 70932510 | [1] | HOSE,12.7mm ID x 7620mm L | CMI1/2''I.D.x25 FT. (USE AS REQUIRED) |
