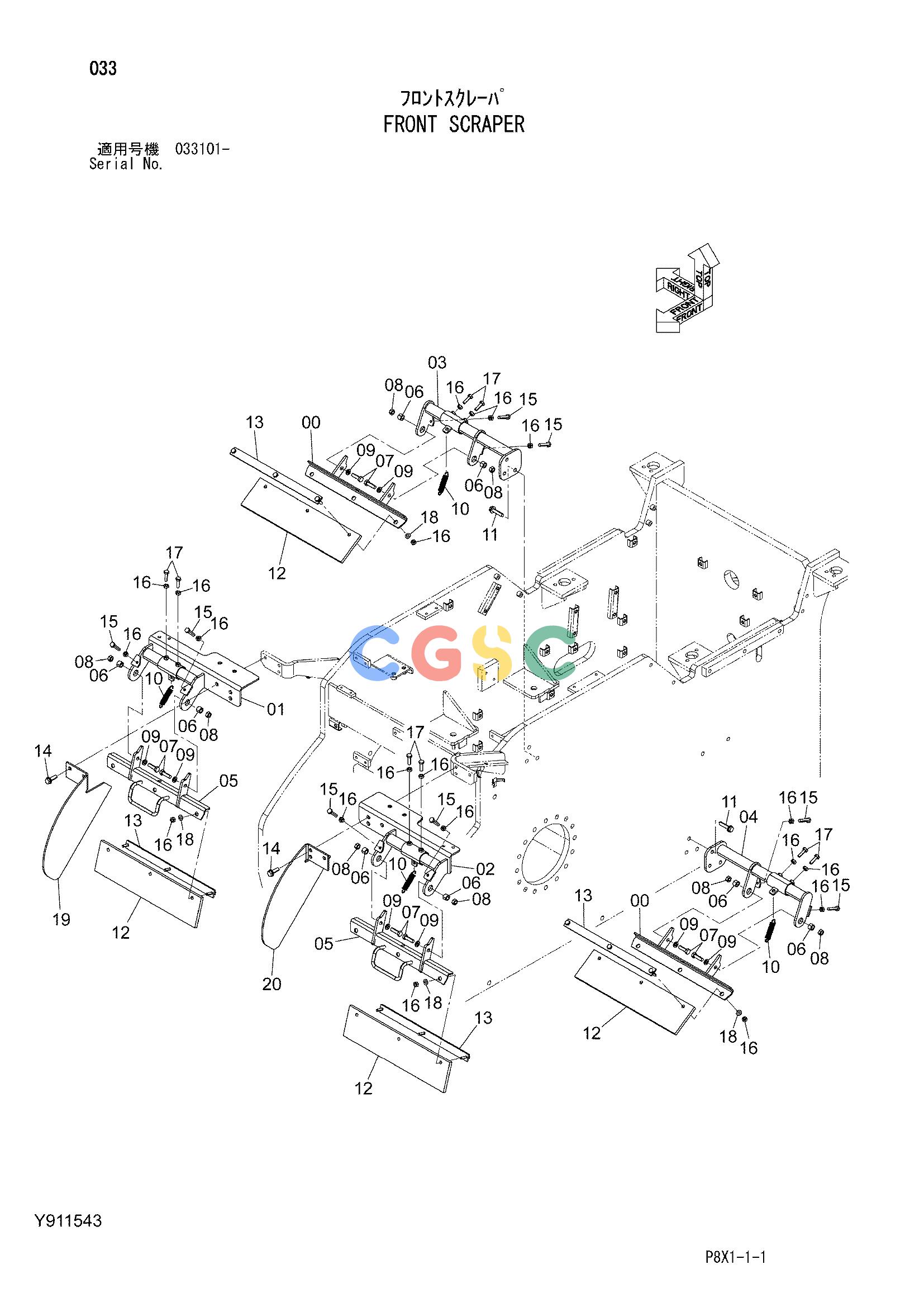

日立零件查询（CS125-3）FRONT SCRAPER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
747 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y700354 | [2] | BRACKET | |
| 01. | Y700362 | [1] | BRACKET | |
| 02. | Y700356 | [1] | BRACKET | |
| 03. | Y700364 | [1] | BRACKET | |
| 04. | Y700365 | [1] | BRACKET | |
| 05. | Y700370 | [2] | BRACKET | |
| 06. | Y405015 | [8] | SPACER | |
| 07. | J901240 | [8] | BOLT | |
| 08. | J950012 | [8] | NUT | |
| 09. | A590912 | [8] | WASHER;SPRING | |
| 10. | Y404718 | [4] | SPRING | |
| 11. | J271255 | [6] | BOLT;SEMS | |
| 11A. | J901255 | [1] | BOLT | |
| 11B. | J222012 | [1] | WASHER | |
| 12. | Y404721 | [4] | BLADE | |
| 13. | Y971846 | [4] | SEAT;SCREW | |
| 14. | J271240 | [6] | BOLT;SEMS | |
| 14A. | J901240 | [1] | BOLT | |
| 14B. | J222012 | [1] | WASHER | |
| 15. | M261050 | [8] | BOLT | |
| 16. | J950010 | [28] | NUT | |
| 17. | J901035 | [8] | BOLT | |
| 18. | A590110 | [12] | WASHER;PLANE | |
| 19. | Y301426 | [1] | GUARD;(R) | |
| 20. | Y301427 | [1] | GUARD;(L) | |
