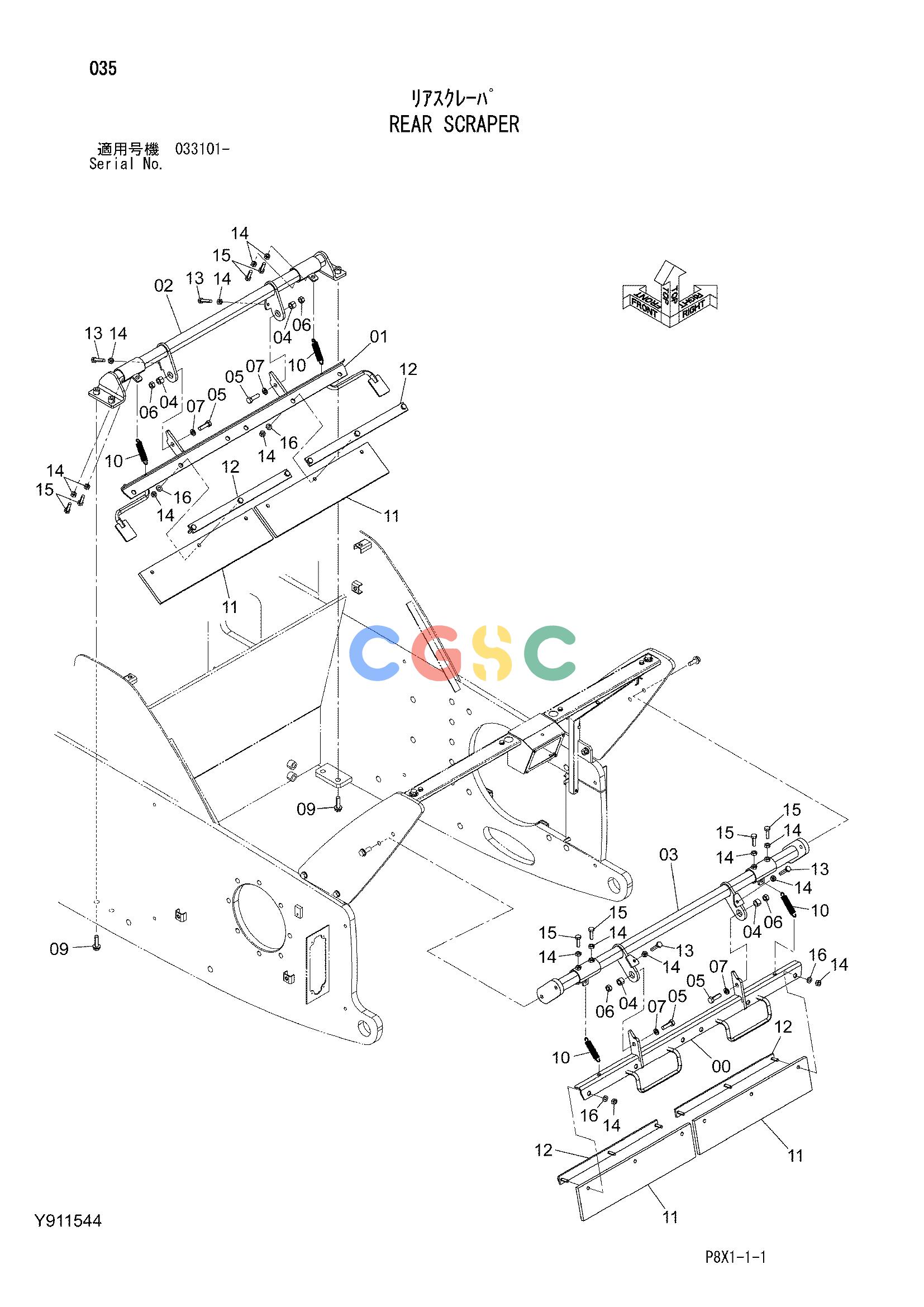

日立零件查询（CS125-3）REAR SCRAPER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
205 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y701192 | [1] | BRACKET | |
| 01. | Y700360 | [1] | BRACKET | |
| 02. | Y700358 | [1] | BRACKET | |
| 03. | Y700359 | [1] | BRACKET | |
| 04. | Y405015 | [4] | SPACER | |
| 05. | J901240 | [4] | BOLT | |
| 06. | J950012 | [4] | NUT | |
| 07. | A590912 | [4] | WASHER;SPRING | |
| 09. | J271245 | [4] | BOLT;SEMS | |
| 09A. | J901245 | [1] | BOLT | |
| 09B. | J222012 | [1] | WASHER | |
| 10. | Y404718 | [4] | SPRING | |
| 11. | Y404721 | [4] | BLADE | |
| 12. | Y971846 | [4] | SEAT;SCREW | |
| 13. | M261050 | [4] | BOLT | |
| 14. | J950010 | [24] | NUT | |
| 15. | J901035 | [8] | BOLT | |
| 16. | A590110 | [12] | WASHER;PLANE | |
