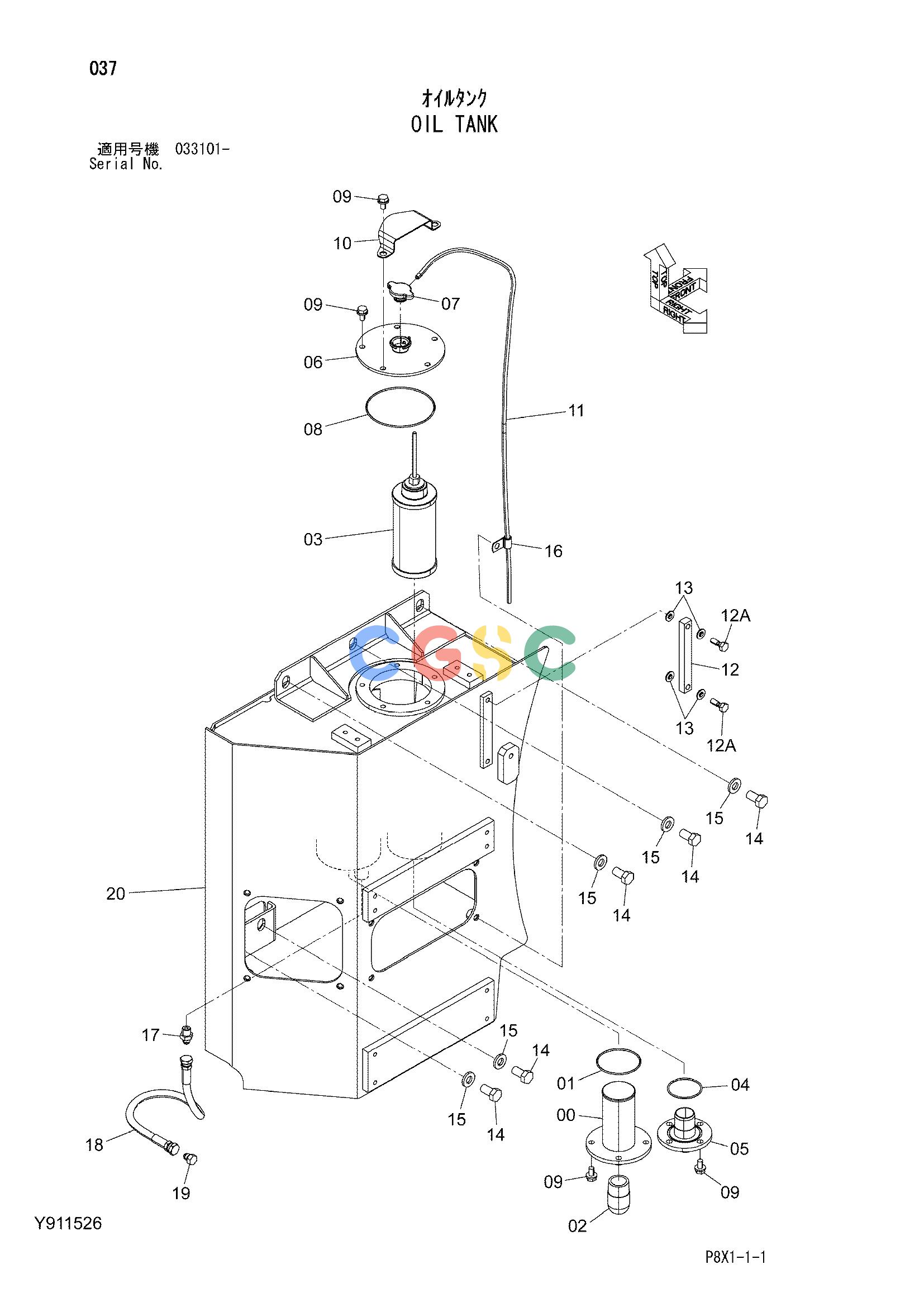

日立零件查询（CS125-3）OIL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
320 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4339554 | [1] | FILTER;SUCTION | |
| 01. | A810085 | [1] | O-RING | |
| 02. | Y404889 | [1] | ELBOW;S | |
| 03. | Y404900 | [1] | FILTER;RETURN | |
| 04. | A810065 | [1] | O-RING | |
| 05. | Y800798 | [1] | PIPE;RETURN | |
| 06. | 8051329 | [1] | COVER | |
| 07. | 4272375 | [1] | CAP | |
| 08. | A810135 | [1] | O-RING | |
| 09. | J271020 | [13] | BOLT;SEMS | |
| 09A. | J901020 | [1] | BOLT | |
| 09B. | J222010 | [1] | WASHER | |
| 10. | 4288646 | [1] | PROTECTOR | |
| 11. | 4279562 | [1] | HOSE;VINYL | |
| 12. | 8053499 | [1] | GAUGE;LEVEL | |
| 12A. | 4100967 | [2] | BOLT | |
| 13. | 449558 | [4] | WASHER;SEAL | |
| 14. | J921630 | [5] | BOLT | |
| 15. | J222016 | [5] | WASHER | |
| 16. | 4190261 | [1] | CLIP | |
| 17. | 4154652 | [1] | ADAPTER;S | |
| 18. | 4410966 | [1] | HOSE | |
| 19. | 4222076 | [1] | PLUG | |
| 20. | Y500115 | [1] | TANK;OIL | |
