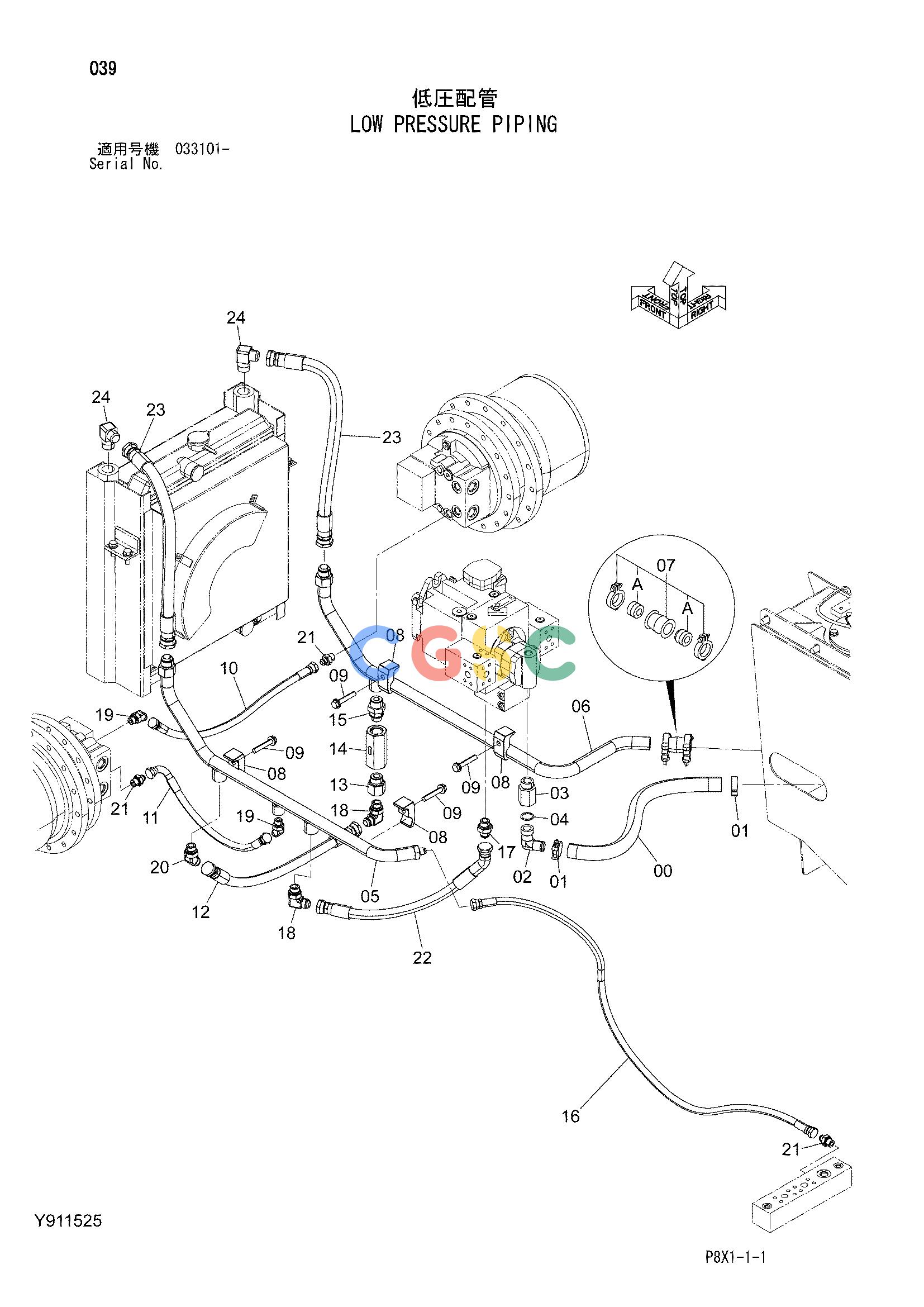

日立零件查询（CS125-3）LOW PRESSURE PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
476 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y404892 | [1] | HOSE;RUBBER | |
| 01. | 4296061 | [2] | CLAMP;HOSE | |
| 02. | 4276855 | [1] | ELBOW;S | |
| 02A. | 4506429 | [1] | O-RING | |
| 03. | 3035972 | [1] | ADAPTER | |
| 04. | 4506429 | [1] | O-RING | |
| 05. | Y701194 | [1] | PIPE | |
| 06. | Y701195 | [1] | PIPE | |
| 07. | 4071213 | [1] | COUPLING | |
| 07A. | 4196258 | [2] | SEAL;RING | |
| 08. | 4190127 | [4] | CLAMP;PIPE | |
| 09. | J271270 | [4] | BOLT;SEMS | |
| 09A. | J901270 | [1] | BOLT | |
| 09B. | J222012 | [1] | WASHER | |
| 10. | Y404860 | [1] | HOSE | |
| 11. | 4349163 | [1] | HOSE | |
| 12. | Y417736 | [1] | HOSE | |
| 13. | 4263448 | [1] | REDUCER;S | |
| 13A. | 4506429 | [1] | O-RING | |
| 14. | Y403967 | [1] | VALVE | |
| 15. | 4291797 | [1] | ADAPTER;S | |
| 15A. | 4506424 | [1] | O-RING | |
| 15B. | 4506429 | [1] | O-RING | |
| 16. | 4214488 | [1] | HOSE | |
| 17. | A852166 | [1] | ADAPTER;S | |
| 17A. | 4506424 | [1] | O-RING | |
| 18. | A852366 | [2] | ELBOW;S | |
| 18A. | 4506424 | [1] | O-RING | |
| 19. | A852244 | [2] | ELBOW;S | |
| 19A. | 4506418 | [1] | O-RING | |
| 20. | A852266 | [1] | ELBOW;S | |
| 20A. | 4506424 | [1] | O-RING | |
| 21. | A852144 | [3] | ADAPTER;S | |
| 21A. | 4506418 | [1] | O-RING | |
| 22. | 4286800 | [1] | HOSE | |
| 23. | 4358340 | [2] | HOSE | |
| 24. | 4156475 | [2] | ELBOW;S | |
