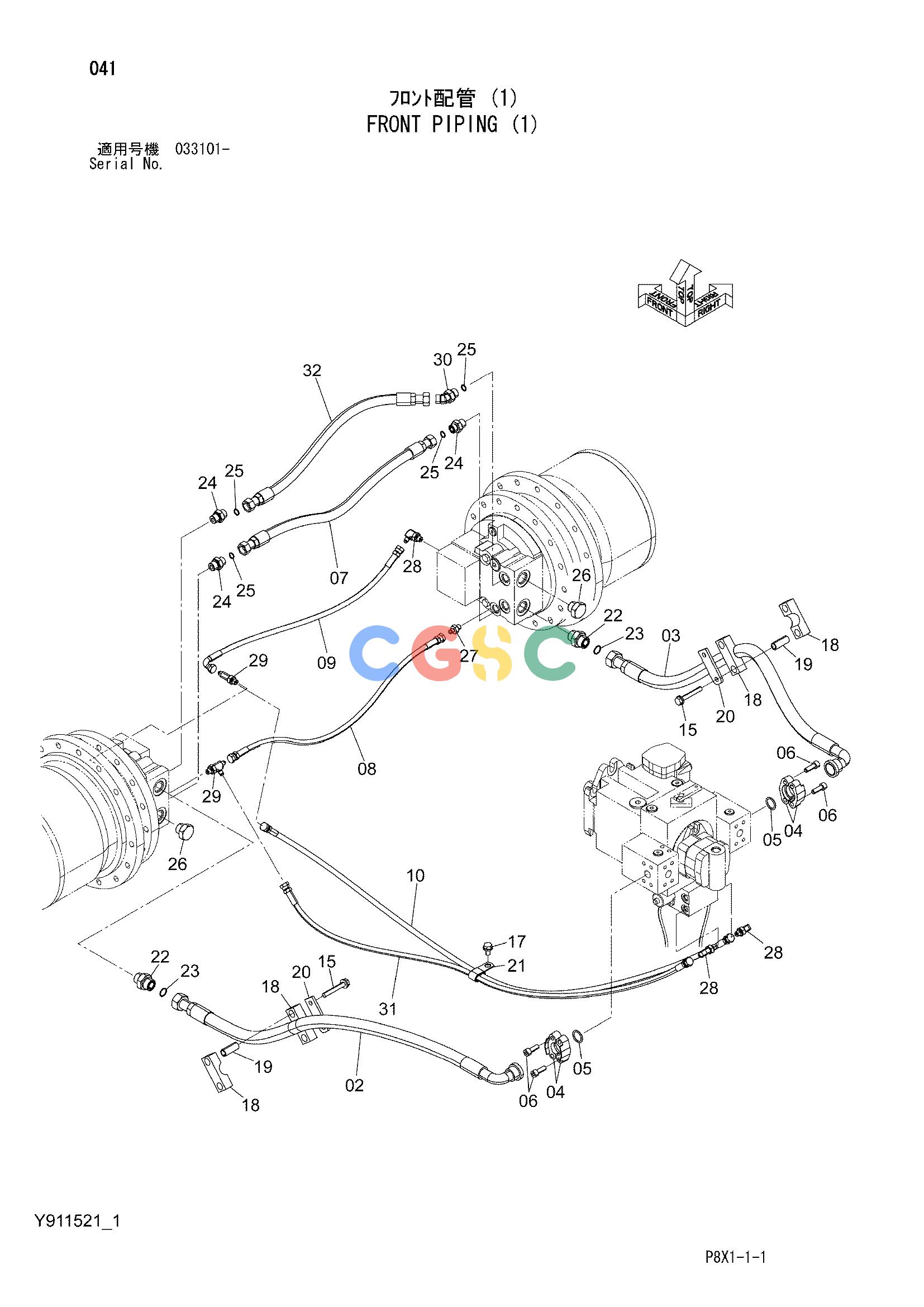

日立零件查询（CS125-3）FRONT PIPING (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
680 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | Y407237 | [1] | HOSE | |
| 03. | Y407238 | [1] | HOSE | |
| 04. | 4506459 | [4] | FLANGE;SPLIT | |
| 05. | 971489 | [2] | O-RING | |
| 06. | J781030 | [8] | BOLT;SOCKET | |
| 07. | Y407239 | [1] | HOSE | |
| 08. | 4269797 | [1] | HOSE | |
| 09. | 4234314 | [1] | HOSE | |
| 10. | 4269809 | [1] | HOSE | |
| 15. | J271070 | [4] | BOLT;SEMS | |
| 15A. | J901070 | [1] | BOLT | |
| 15B. | J222010 | [1] | WASHER | |
| 17. | J271020 | [1] | BOLT;SEMS | |
| 17A. | J901020 | [1] | BOLT | |
| 17B. | J222010 | [1] | WASHER | |
| 18. | 4379618 | [4] | CLAMP | |
| 19. | 4379621 | [4] | SPACER | |
| 20. | 4379619 | [2] | PLATE | |
| 21. | 4190292 | [1] | CLIP | |
| 22. | A853166 | [2] | ADAPTER;S | |
| 22A. | 4506424 | [1] | O-RING | |
| 23. | 4187308 | [2] | O-RING | |
| 24. | A853144 | [3] | ADAPTER;S | |
| 24A. | 4506418 | [1] | O-RING | |
| 25. | 4138938 | [4] | O-RING | |
| 26. | A885006 | [2] | PLUG | |
| 26A. | 4506424 | [1] | O-RING | |
| 27. | A852122 | [1] | ADAPTER;S | |
| 27A. | 957366 | [1] | O-RING | |
| 28. | A852322 | [3] | ELBOW;S | |
| 28A. | 957366 | [1] | O-RING | |
| 29. | A852422 | [2] | TEE;S | |
| 29A. | 957366 | [1] | O-RING | |
| 30. | A853244 | [1] | ELBOW;S | |
| 30A. | 4506418 | [1] | O-RING | |
| 31. | Y413426 | [1] | HOSE | |
| 32. | 4432158 | [1] | HOSE | |
