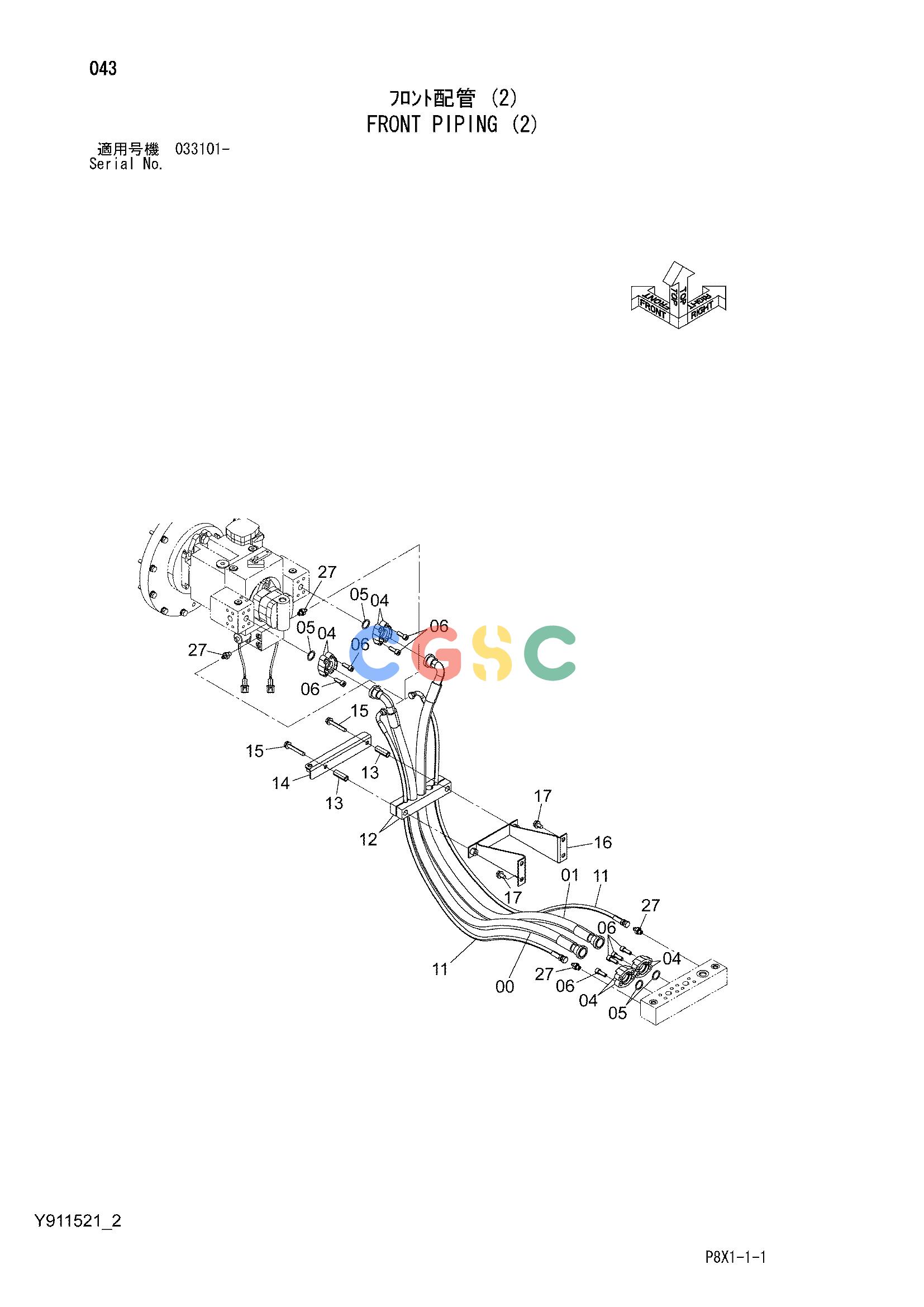

日立零件查询（CS125-3）FRONT PIPING (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
305 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y404764 | [1] | HOSE | |
| 01. | Y404775 | [1] | HOSE | |
| 04. | 4506459 | [8] | FLANGE;SPLIT | |
| 05. | 971489 | [4] | O-RING | |
| 06. | J781030 | [16] | BOLT;SOCKET | |
| 11. | Y417967 | [2] | HOSE | |
| 12. | Y404763 | [2] | CLAMP | |
| 13. | Y404761 | [2] | SPACER | |
| 14. | Y802859 | [1] | BRACKET | |
| 15. | J271070 | [2] | BOLT;SEMS | |
| 15A. | J901070 | [1] | BOLT | |
| 15B. | J222010 | [1] | WASHER | |
| 16. | Y800904 | [1] | BRACKET | |
| 17. | J271020 | [4] | BOLT;SEMS | |
| 17A. | J901020 | [1] | BOLT | |
| 17B. | J222010 | [1] | WASHER | |
| 27. | A852122 | [4] | ADAPTER;S | |
| 27A. | 957366 | [1] | O-RING | |
