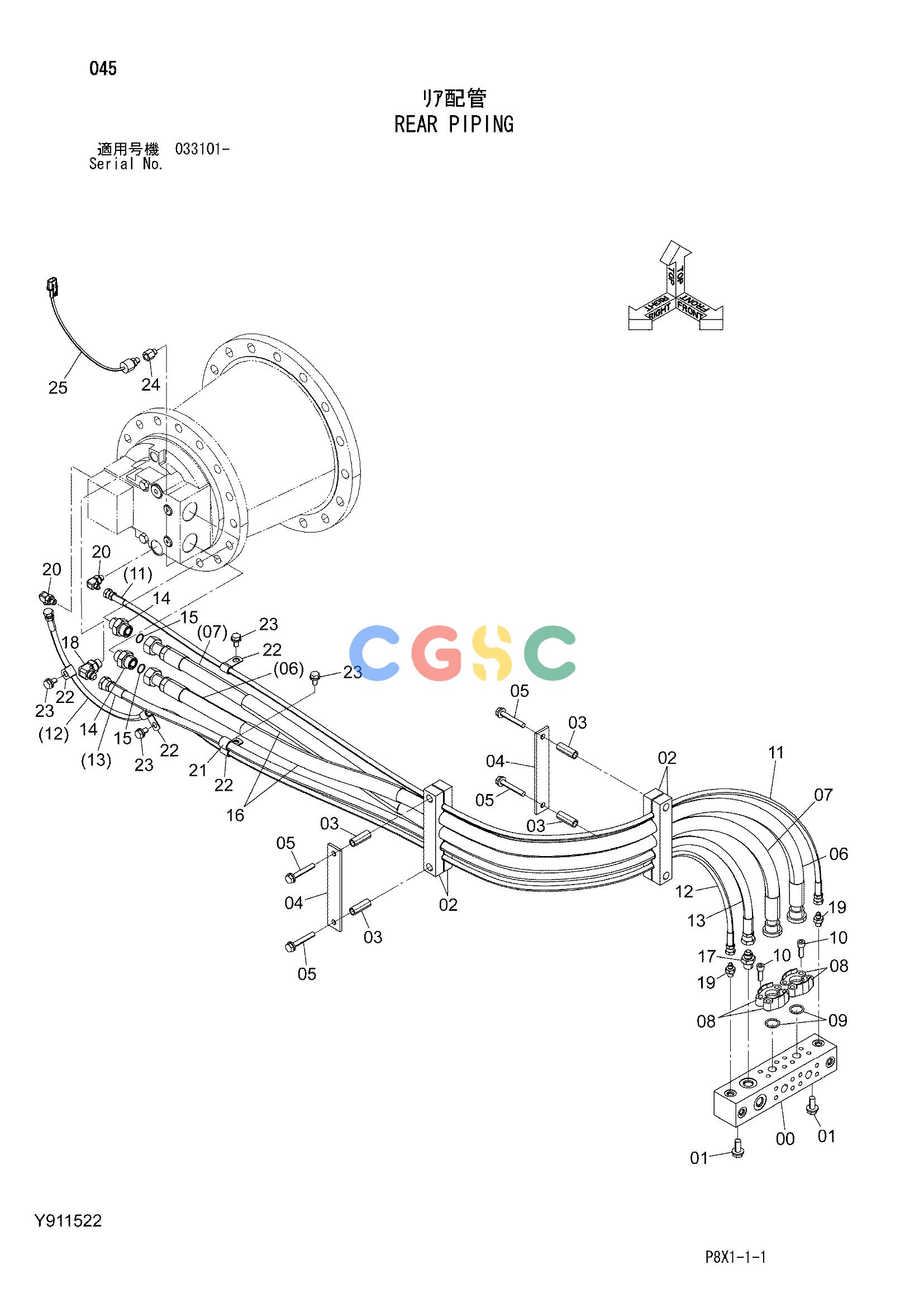

日立零件查询（CS125-3）REAR PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
320 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y200127 | [1] | MANIFOLD | |
| 01. | J271230 | [2] | BOLT;SEMS | |
| 01A. | J901230 | [1] | BOLT | |
| 01B. | J222012 | [1] | WASHER | |
| 02. | Y404763 | [4] | CLAMP | |
| 03. | Y404761 | [4] | SPACER | |
| 04. | Y404762 | [2] | PLATE | |
| 05. | J271070 | [4] | BOLT;SEMS | |
| 05A. | J901070 | [1] | BOLT | |
| 05B. | J222010 | [1] | WASHER | |
| 06. | Y407235 | [1] | HOSE | |
| 07. | Y407236 | [1] | HOSE | |
| 08. | 4506459 | [4] | FLANGE;SPLIT | |
| 09. | 971489 | [2] | O-RING | |
| 10. | J781030 | [8] | BOLT;SOCKET | |
| 11. | Y404743 | [1] | HOSE | |
| 12. | Y404744 | [1] | HOSE | |
| 13. | 4262931 | [1] | HOSE | |
| 14. | A853166 | [2] | ADAPTER;S | |
| 14A. | 4506424 | [1] | O-RING | |
| 15. | 4187308 | [2] | O-RING | |
| 16. | 4327294 | [2] | PROTECTOR | |
| 17. | A852144 | [1] | ADAPTER;S | |
| 17A. | 4506418 | [1] | O-RING | |
| 18. | A852344 | [1] | ELBOW;S | |
| 18A. | 4506418 | [1] | O-RING | |
| 19. | A852122 | [2] | ADAPTER;S | |
| 19A. | 957366 | [1] | O-RING | |
| 20. | A852322 | [2] | ELBOW;S | |
| 20A. | 957366 | [1] | O-RING | |
| 21. | 4190262 | [1] | CLIP | |
| 22. | 4190272 | [4] | CLIP | |
| 23. | J271020 | [4] | BOLT;SEMS | |
| 23A. | J901020 | [1] | BOLT | |
| 23B. | J222010 | [1] | WASHER | |
| 24. | 4138898 | [1] | ADAPTER | |
| 24A. | 957366 | [1] | O-RING | |
| 25. | 4320483 | [1] | SWITCH;PRES. | |
