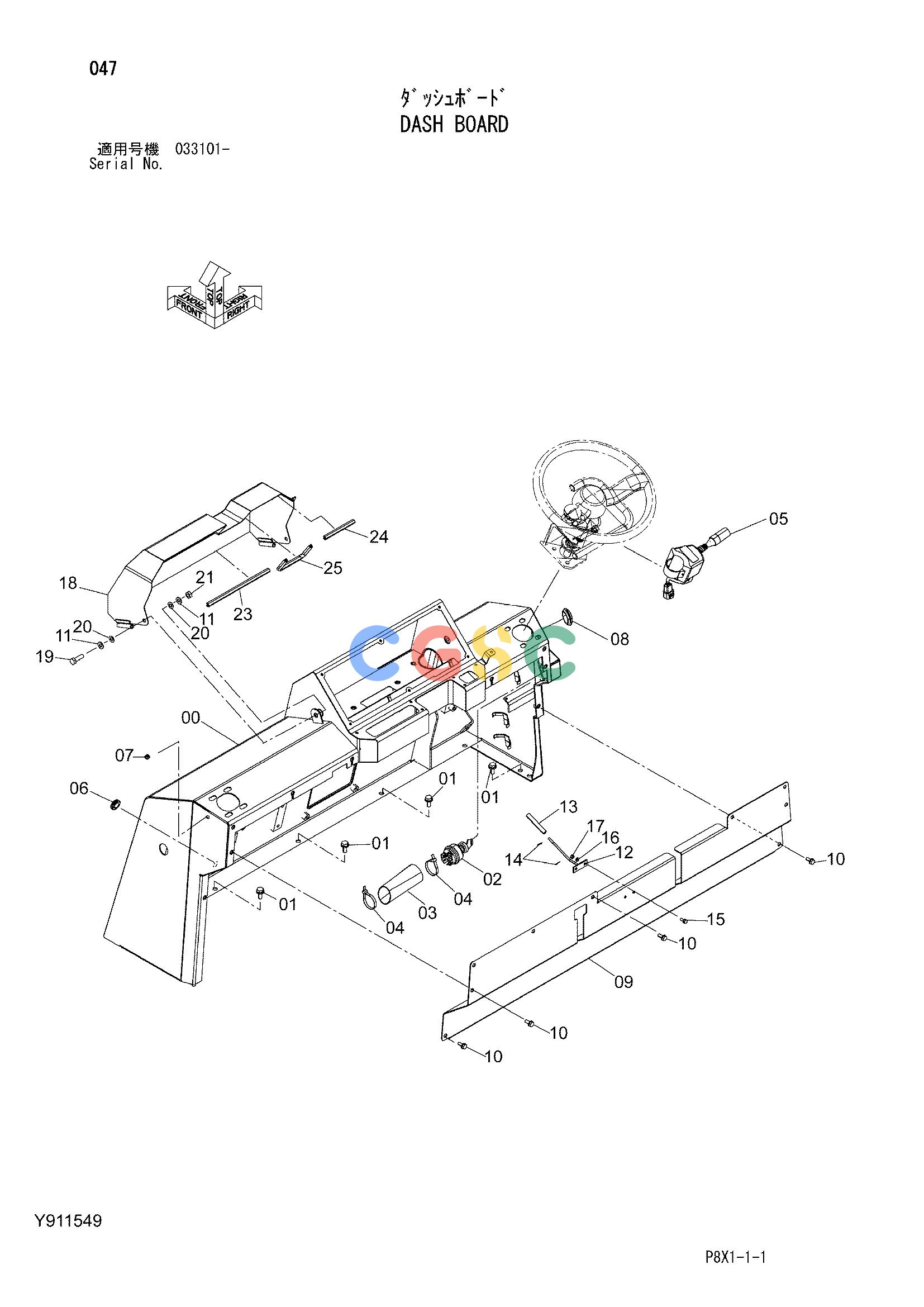

日立零件查询（CS125-3）DASH BOARD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
671 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y500365 | [1] | DASHBOARD | |
| 01. | J271025 | [9] | BOLT;SEMS | |
| 01A. | J901025 | [1] | BOLT | |
| 01B. | J222010 | [1] | WASHER | |
| 02. | +++++++ | [1] | SWITCH;START | |
| 03. | Y405123 | [1] | RUBBER | |
| 04. | 4055312 | [2] | CLIP;BAND | |
| 05. | Y409360 | [1] | SWITCH | |
| 06. | 4172354 | [1] | BUSHING;RUBBER | |
| 07. | 4130494 | [1] | BUSHING;RUBBER | |
| 08. | 4276215 | [1] | BUSHING;RUBBER | |
| 09. | Y302285 | [1] | COVER | |
| 10. | J260820 | [9] | BOLT;SEMS | |
| 10A. | J900820 | [1] | BOLT | |
| 10B. | A590108 | [1] | WASHER;PLANE | |
| 11. | A590110 | [4] | WASHER;PLANE | |
| 12. | Y970354 | [1] | GUIDE | |
| 13. | Y404989 | [1] | HOSE;RUBBER | |
| 14. | 4022695 | [2] | PIN;LOCK | |
| 15. | J260616 | [2] | BOLT;SEMS | |
| 15A. | J900616 | [1] | BOLT | |
| 15B. | A590106 | [1] | WASHER;PLANE | |
| 16. | A590906 | [2] | WASHER;SPRING | |
| 17. | M500605 | [2] | NUT | |
| 18. | Y600638 | [1] | COVER | |
| 19. | J901035 | [2] | BOLT | |
| 20. | Y407272 | [4] | SPRING;DISC | |
| 21. | J950010 | [2] | NUT | |
| 23. | Y417986 | [1] | SEAL;RUBBER | |
| 24. | Y417987 | [1] | SEAL;RUBBER | |
| 25. | Y417988 | [1] | SEAL;RUBBER | |
