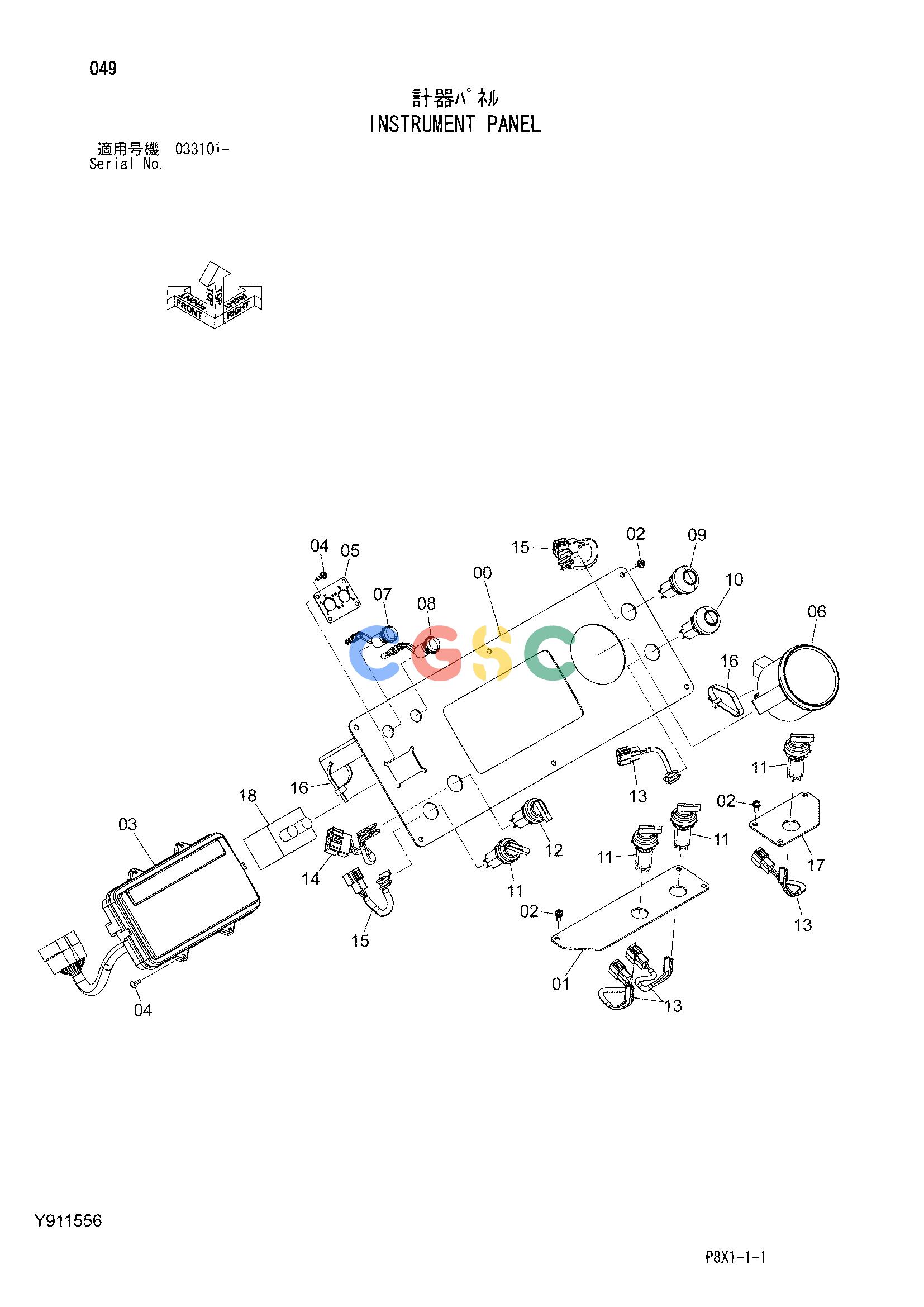

日立零件查询（CS125-3）INSTRUMENT PANEL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
747 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y701193 | [1] | PANEL;CONTROL | |
| 01. | Y302328 | [1] | PANEL;CONTROL | |
| 02. | J460512 | [12] | SCREW;SEMS | |
| 03. | Y417674 | [1] | PANEL;GAUGE | |
| 04. | J460416 | [8] | SCREW;SEMS | |
| 05. | Y302243 | [1] | NAME-PLATE | (SPRINKLER TIMER) |
| 06. | Y417673 | [1] | METER;TACHO | |
| 07. | Y417732 | [1] | LAMP;PILOT | |
| 08. | Y417589 | [1] | LAMP;PILOT | |
| 09. | Y417214 | [1] | SWITCH | |
| 10. | Y417738 | [1] | SWITCH | |
| 11. | Y417213 | [4] | SWITCH | |
| 12. | Y417215 | [1] | SWITCH | |
| 13. | Y417222 | [4] | HARNESS;WIRE | |
| 14. | Y417224 | [1] | HARNESS;WIRE | |
| 15. | Y417741 | [2] | HARNESS;WIRE | |
| 16. | 4055311 | [2] | CLIP;BAND | |
| 17. | Y418156 | [1] | PANEL;CONTROL | |
| 18. | Y417790 | [1] | TIMER | |
