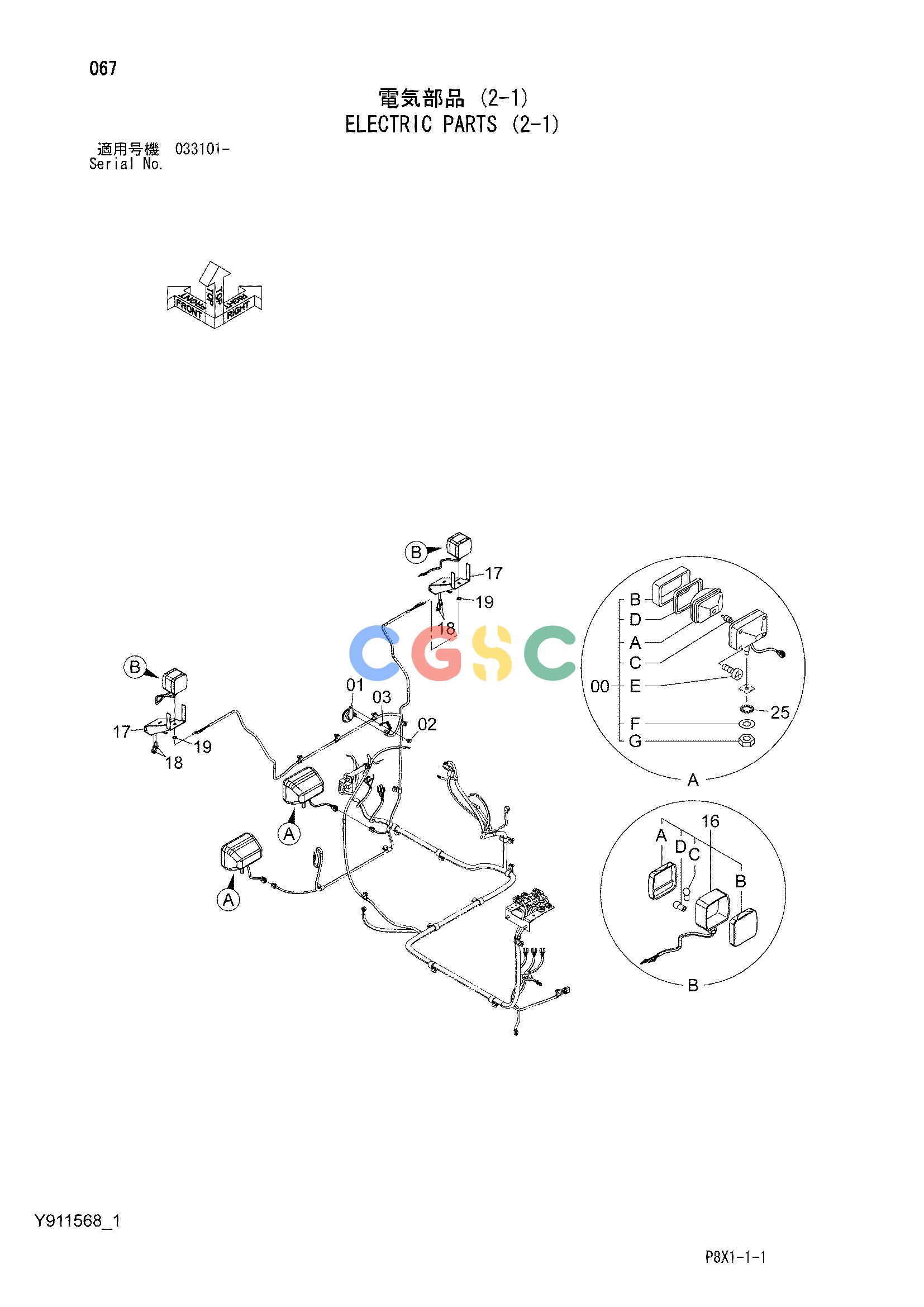

日立零件查询（CS125-3）ELECTRIC PARTS (2-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
551 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y417675 | [2] | LAMP;HEAD | |
| 00A. | Y418224 | [1] | LAMP;UNIT | |
| 00B. | 4326802 | [1] | FRAME | |
| 00C. | Y418225 | [1] | BULB | |
| 00D. | 4326803 | [1] | GASCKET | |
| 00E. | 4295339 | [4] | SCREW | |
| 00F. | A590114 | [1] | WASHER;PLANE | |
| 00G. | J950014 | [1] | NUT | |
| 01. | Y411567 | [1] | HORN | |
| 02. | J260816 | [1] | BOLT;SEMS | |
| 02A. | J900816 | [1] | BOLT | |
| 02B. | A590108 | [1] | WASHER;PLANE | |
| 03. | 4254603 | [1] | HARNESS;WIRE | |
| 16. | Y415124 | [2] | LAMP;FRONT | |
| 16A. | 4244231 | [1] | LENS | |
| 16B. | 4244230 | [1] | LENS | |
| 16C. | Y418189 | [1] | BULB | |
| 16D. | Y418190 | [1] | BULB | |
| 17. | Y802483 | [2] | BRACKET | |
| 18. | J271030 | [4] | BOLT;SEMS | |
| 18A. | J901030 | [1] | BOLT | |
| 18B. | J222010 | [1] | WASHER | |
| 19. | Y403795 | [2] | WASHER;TOOTH | |
| 25. | 4426859 | [2] | WASHER;TOOTH | |
