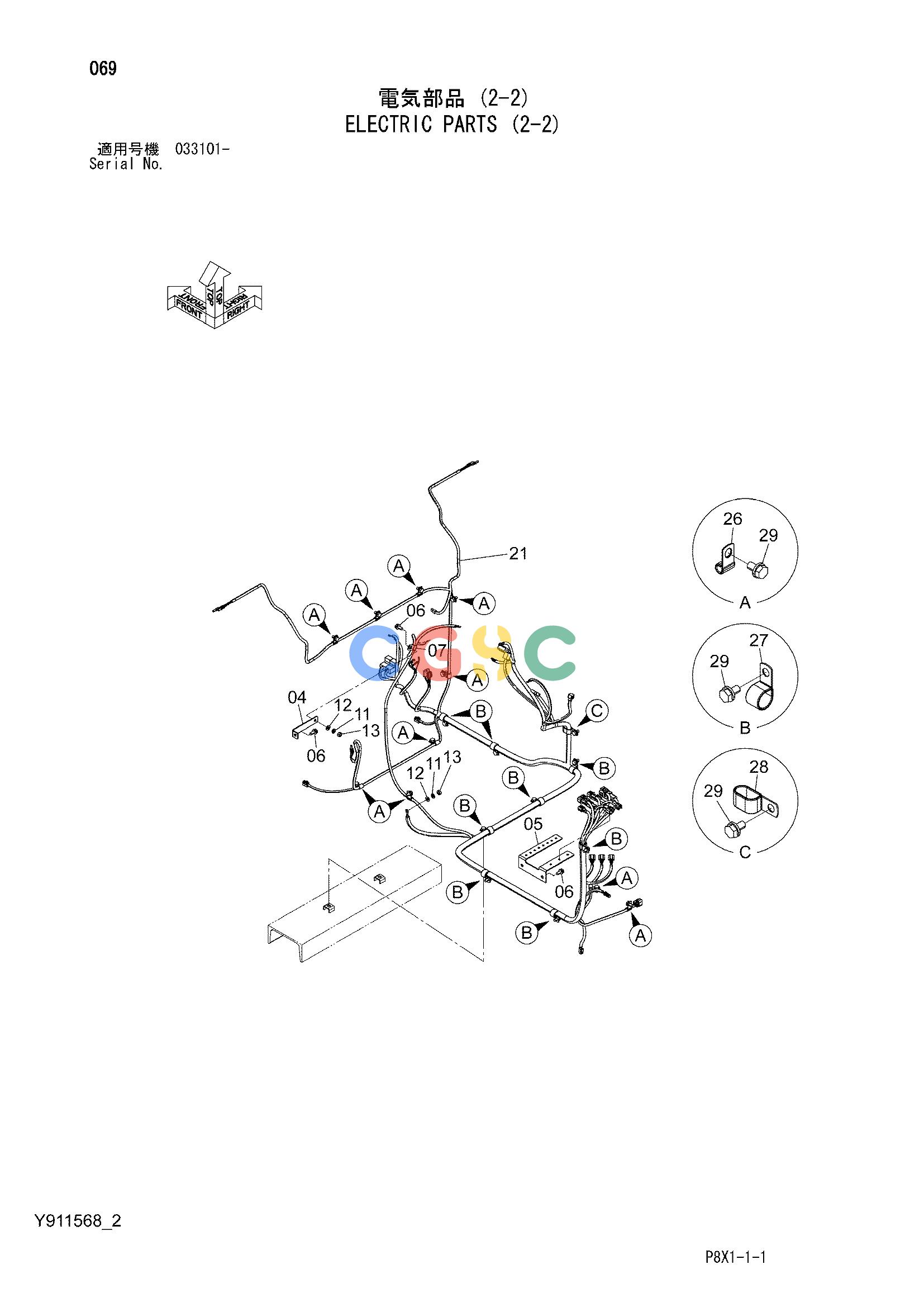

日立零件查询（CS125-3）ELECTRIC PARTS (2-2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
538 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 04. | Y417993 | [1] | BRACKET | |
| 05. | Y302323 | [1] | BRACKET | |
| 06. | J271025 | [4] | BOLT;SEMS | |
| 06A. | J901025 | [1] | BOLT | |
| 06B. | J222010 | [1] | WASHER | |
| 07. | 4192018 | [1] | CLIP | |
| 11. | A590910 | [2] | WASHER;SPRING | |
| 12. | A590110 | [2] | WASHER;PLANE | |
| 13. | J950010 | [2] | NUT | |
| 21. | Y200532 | [1] | HARNESS;WIRE | |
| 26. | 4190261 | [10] | CLIP | |
| 27. | 4190263 | [8] | CLIP | |
| 28. | 4190282 | [1] | CLIP | |
| 29. | J271020 | [19] | BOLT;SEMS | |
| 29A. | J901020 | [1] | BOLT | |
| 29B. | J222010 | [1] | WASHER | |
